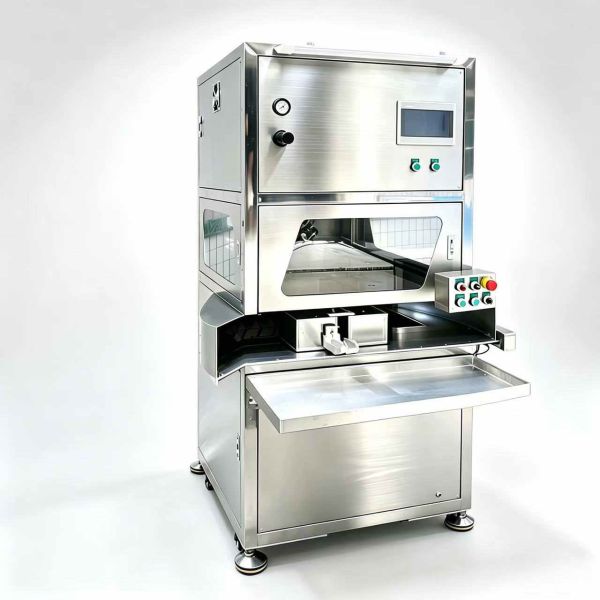

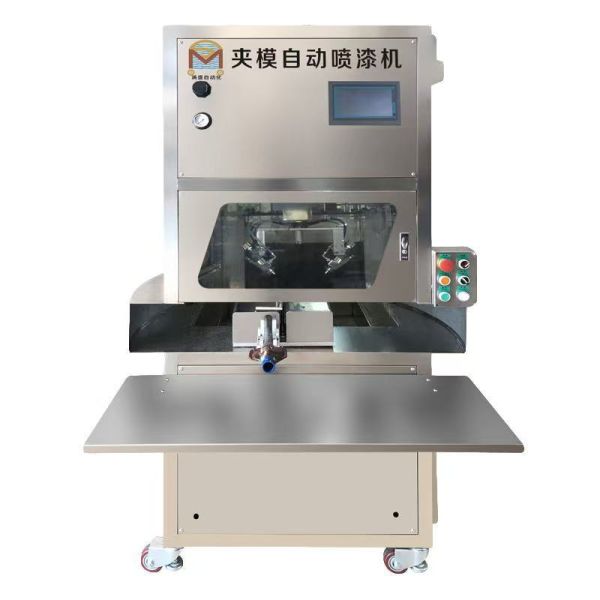

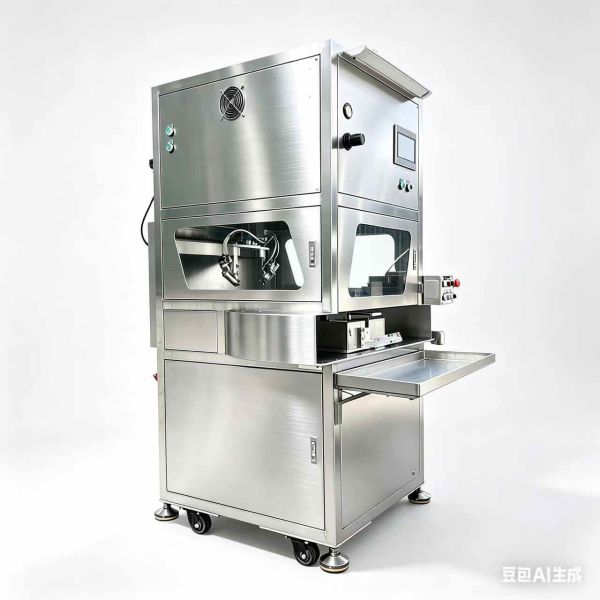

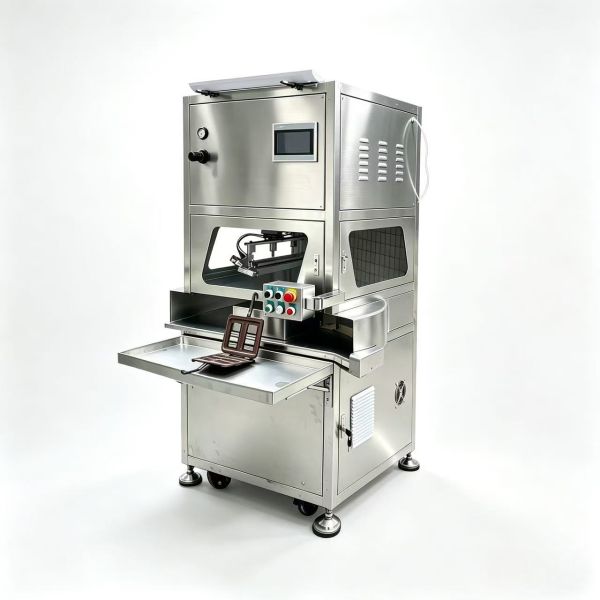

Automatic Spray Painting Machine, Coating Equipment for Plastic Hair Band UV Paint Surface Finishing

Specifications

Voltage :

220VAC / 50Hz

Effective Stroke :

290 x 240 x 160mm

Air Pressure :

0.4-0.6MPa

Payment Terms :

L/C,D/A,D/P,T/T,Western Union

Brand Name :

Mansheng

Dimension :

1245 x 1070 x 1764mm (Frame: 825mm)

Axes :

X(L/R) / Y(F/B) / Z(U/D) / R(Gun Rotate) / T1(A-Station) / T2(B-Station) / W(Base Rotate)

Control :

Touch Screen

Gun / Nozzle :

WA101 / 0.5mm

Drive :

7-Axis Closed-Loop Stepper

Weight :

230KG

Exhaust :

Round 200mm

Place of Origin :

China, Dongguan

Spray Range :

200 x 200mm

Spray Mode :

360 Rotation + Reciprocating (2 guns)

Key Parts :

Leadshine Motor / HIWIN Guide / NSK Bearing

Program :

10,000+

Power :

0.75KW/H

Comm Port :

USB

MOQ :

Accuracy :

0.05mm

Price :

$6882

Model Number :

200X7A

Packaging Details :

WOODEN BOX

Material :

S.Steel / Alu / Steel

Description

Product Specifications

Parameter	Specification
Model	200X7A Auto Spray Machine
Material	S.Steel / Alu / Steel
Weight	230KG
Gun / Nozzle	WA101 / 0.5mm
Dimension	1245 x 1070 x 1764mm (Frame: 825mm)
Effective Stroke	290 x 240 x 160mm
Spray Range	200 x 200mm
Spray Mode	360 Rotation + Reciprocating (2 guns)
Drive	7-Axis Closed-Loop Stepper
Axes	X(Left/Right) / Y(Front/Back) / Z(Up/Down) / R(Gun Rotate) / T1(A-Station) / T2(B-Station) / W(Base Rotate)
Accuracy	0.05mm
Control	Touch Screen
Program	10,000+
Comm Port	USB
Key Parts	Leadshine Motor / HIWIN Guide / NSK Bearing
Voltage	220VAC / 50Hz
Air Pressure	0.4-0.6MPa
Exhaust	Round 200mm
Power	0.75KW/H

Key Selling Points

7-Axis High Precision Spray System: 0.05mm positioning accuracy with closed-loop stepper drive, ensures consistent, defect-free coating on complex parts.
Dual Independent Spray Guns: 2x WA101 spray guns (0.5mm nozzle) with separate oil output control, supports 360 rotation + reciprocating spraying for full coverage.
Wide Application Range: 200 x 200mm spray range, dual-station rotation, and 10,000+ programmable sequences, ideal for auto parts, 3C electronics, metal, glass and toys.
Durable Industrial Build: Features HIWIN linear guides, NSK bearings, and brand-name components, stable 220VAC/50Hz operation with 0.4-0.6MPa air pressure.
Energy-Saving and Easy to Use: Only 0.75KW/H power consumption, touch screen control with USB port, 200mm round exhaust for clean working conditions.
