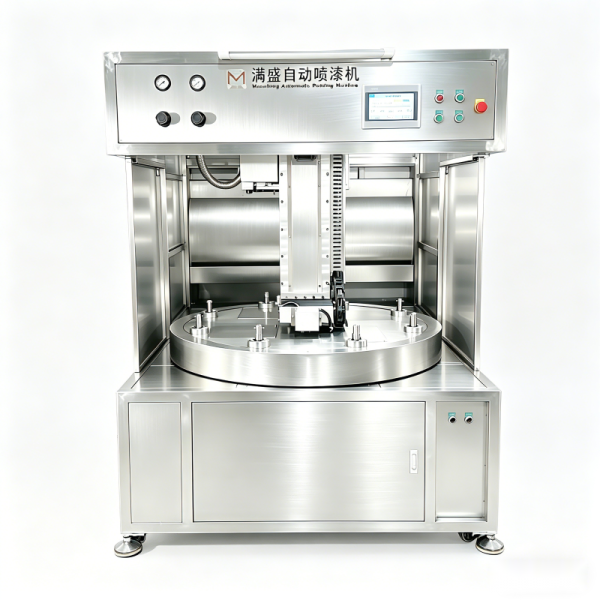

Six-Axis 300X6 Rotary Automatic Spray Painting Machine with Dual Independent Spray Guns
Six-Axis 300X6 Rotary Automatic Spray Painting Machine with Dual Independent Spray Guns
Six-Axis 300X6 Rotary Automatic Spray Painting Machine with Dual Independent Spray Guns
Six-Axis 300X6 Rotary Automatic Spray Painting Machine with Dual Independent Spray Guns
Six-Axis 300X6 Rotary Automatic Spray Painting Machine with Dual Independent Spray Guns
Six-Axis 300X6 Rotary Automatic Spray Painting Machine with Dual Independent Spray Guns
Specifications
Price :
USD12765
Effective Stroke :
400×220×560mm
X Axis :
Horizontal Left-Right
Control System :
ManSheng Touch Screen
Bearings :
NSK
Model Number :
300X6
Weight :
500KG
Program Storage :
10000 Programs
Belt Material :
Rubber
Packaging Details :
wooden box
Spray Method :
Reciprocating, Dual Independent Guns
A Axis :
Gun Angle Rotation
Positioning Accuracy :
±0.2MM
Power Consumption :
1.5KW/H
Payment Terms :
Western Union,T/T,D/P,D/A,L/C
Spray Range :
φ300mm×350mm
W Axis :
Turntable Rotation
Drive Method :
6-Axis Closed-Loop Stepper
Z Axis :
Up-Down
Exhaust Port :
Round 400mm
T Axis :
Dual-Station Rotation
Touch Screen :
Kunlun Tongtai
Motor :
Leadshine
Air Pressure :
0.6-0.8MPA
Certification :
CE
Spray Gun Nozzle :
ManSheng Blue Gun 1.3mm
Rated Voltage :
220VAC/50HZ
MOQ :
1
Machine Dimensions :
2210×1400×1900mm
Guide Rail :
HIWIN
Brand Name :
ManSheng
Body Material :
Stainless Steel, Aluminum, Steel
Communication Port :
USB
Y Axis :
Vertical Front-Back
Pneumatic Parts :
Sannais, Airtac
Electrical Parts :
CHINT, Delixi, Omron
Power Supply :
Hugong
Description
Six-Axis 300X6 Rotary Automatic Spray Painting Machine with Dual Independent Spray Guns
The 300X6 is a six-axis rotary automatic spray painting machine engineered for precision industrial coating of medium to large-sized cylindrical and annular workpieces. Driven by a closed-loop stepper system with Leadshine motors and HIWIN guide rails, it delivers ±0.2MM positioning accuracy across a φ300mm*350mm spray area. Equipped with dual independent spray guns that can dispense paint separately, and a dual-station rotary turntable for continuous loading and spraying, the ManSheng touch screen controller supports up to 10000 programmable spray patterns for automated production lines.
Key Features
  • Six-axis precision closed-loop stepper drive system for multi-angle rotary spraying
  • Dual independent spray guns with separate paint output control for flexible coating
  • Dual-station rotary turntable enables simultaneous loading and spraying for higher throughput
  • ±0.2MM positioning accuracy with NSK bearings throughout the entire machine
  • 10000-level program memory with USB communication for easy pattern transfer
  • HIWIN linear guide rails paired with Leadshine motors for stable long-cycle operation
  • ManSheng touch screen controller with Kunlun Tongtai HMI for intuitive operation
  • Sannais and Airtac pneumatic components with CHINT, Delixi, and Omron electrical parts
  • Round 400mm exhaust port for efficient fume extraction at higher throughput
Six-Axis Configuration
AxisFunction
X AxisHorizontal (Left-Right)
Y AxisVertical (Front-Back)
Z AxisUp-Down
A AxisSpray Gun Angle
W AxisTurntable Rotation
T AxisDual-Station Rotation (Loading / Spraying)
Technical Specifications
ParameterSpecification
Machine Model300X6
Spray MethodReciprocating, Dual Independent Guns
Drive Method6-Axis Precision Closed-Loop Stepper
Spray Rangeφ300mm * 350mm
Effective Stroke400mm * 220mm * 560mm
Machine Dimensions2210mm (Frame 1640mm) * 1400mm * 1900mm
Spray Gun / NozzleManSheng Blue Gun 1.3mm
Positioning Accuracy±0.2MM
Body MaterialStainless Steel, Aluminum, Steel
Weight500KG
Control SystemManSheng Touch Screen Series
Program Storage10000 Programs
Communication PortUSB
MotorLeadshine
Guide RailHIWIN
Power SupplyHugong
Pneumatic PartsSannais, Airtac
Electrical PartsCHINT, Delixi, Omron
BearingsNSK (All Axes)
Touch ScreenKunlun Tongtai
Control ButtonsTend
Belt MaterialRubber
Rated Voltage220VAC / 50HZ
Air Pressure0.6 - 0.8 MPA
Exhaust PortRound / 400mm
Power Consumption1.5 KW/H
Applications

The 300X6 rotary spray system is suitable for automated surface finishing of medium to large-sized cylindrical components including metal rings, bearing housings, automotive wheel hubs, pipe fittings, industrial rollers, and other rotationally symmetric workpieces requiring consistent, precision coating. Its dual-station rotary design and independent dual-gun configuration make it ideal for continuous production environments where throughput and coating uniformity are critical.
