High Precision Spraying Equipment for Auto Emblem Surface Uniform Paint Processing Machine
High Precision Spraying Equipment for Auto Emblem Surface Uniform Paint Processing Machine
High Precision Spraying Equipment for Auto Emblem Surface Uniform Paint Processing Machine
High Precision Spraying Equipment for Auto Emblem Surface Uniform Paint Processing Machine
High Precision Spraying Equipment for Auto Emblem Surface Uniform Paint Processing Machine
High Precision Spraying Equipment for Auto Emblem Surface Uniform Paint Processing Machine
High Precision Spraying Equipment for Auto Emblem Surface Uniform Paint Processing Machine
High Precision Spraying Equipment for Auto Emblem Surface Uniform Paint Processing Machine
High Precision Spraying Equipment for Auto Emblem Surface Uniform Paint Processing Machine
High Precision Spraying Equipment for Auto Emblem Surface Uniform Paint Processing Machine
High Precision Spraying Equipment for Auto Emblem Surface Uniform Paint Processing Machine
High Precision Spraying Equipment for Auto Emblem Surface Uniform Paint Processing Machine
High Precision Spraying Equipment for Auto Emblem Surface Uniform Paint Processing Machine
High Precision Spraying Equipment for Auto Emblem Surface Uniform Paint Processing Machine
High Precision Spraying Equipment for Auto Emblem Surface Uniform Paint Processing Machine
High Precision Spraying Equipment for Auto Emblem Surface Uniform Paint Processing Machine
Specifications
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Coating Method :
360 Degree Rotation and Reciprocating
Control System :
Mansheng Touch Screen
Brand Name :
ManSheng
Place of Origin :
China
Weight :
230KG
Model Number :
200X7B
Material :
Stainless Steel, Aluminum, Steel
Axis Configuration :
XYZRT1T2W Seven-Axis
Guide Rail :
HIWIN
Power Consumption :
0.75KW/H
Packaging Details :
wooden box
Drive System :
Seven-Axis Closed-Loop Stepper
Voltage :
220VAC/50HZ
Positioning Accuracy :
0.2mm
Motor :
Leadshine
Air Pressure :
0.4-0.6MPA
MOQ :
1
Spray Gun :
WA101 0.5mm
Program Storage :
10000 Programs
Price :
USD7176
Coating Range :
200mm x 200mm
Description

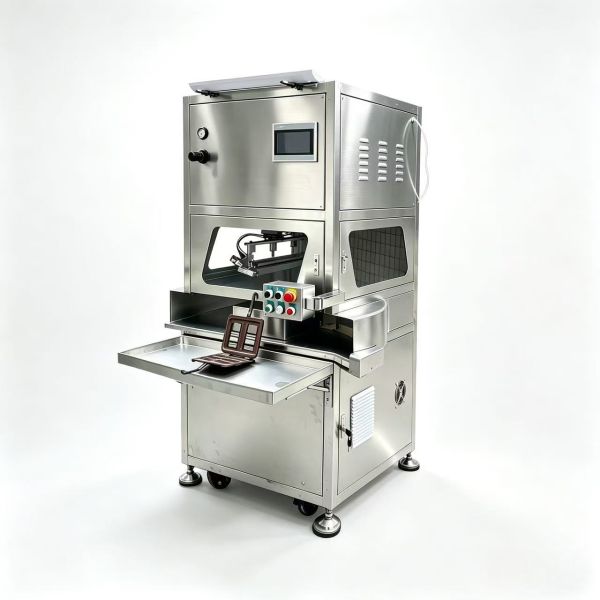

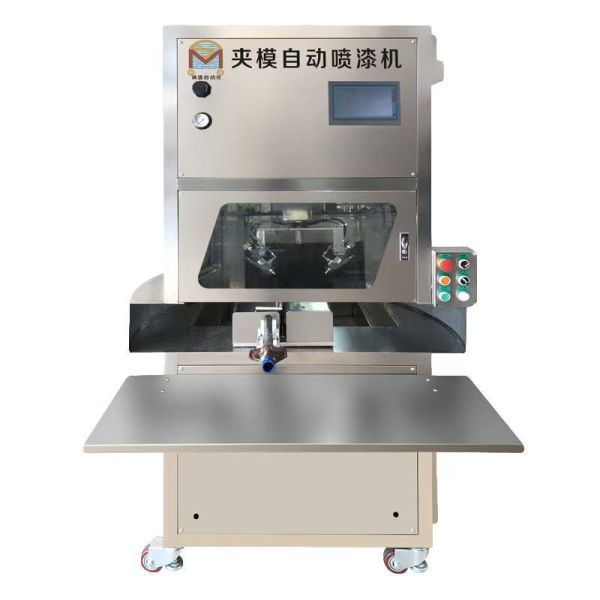

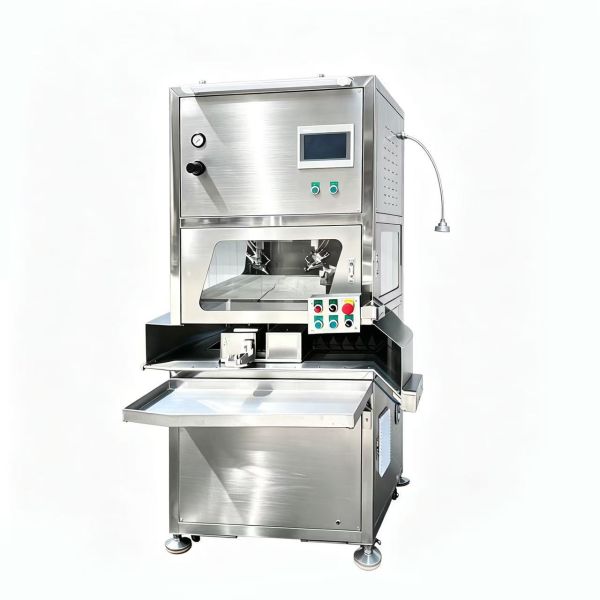

200X7B Hinge Mold Automatic Spray Painting Machine
The 200X7B is a seven-axis precision automatic spray painting machine designed specifically for hinge molds and small hardware components. Equipped with WA101 spray guns (0.5mm nozzle) featuring independent dual-gun oil output, a closed-loop stepper drive system, and a dual-station rotating chassis, this machine delivers precision coating with ±0.2mm accuracy across a 200mm*200mm spray range. Ideal for high-mix, small-batch hardware surface finishing.
Seven-Axis Precision Drive System
  • X-axis: Horizontal (left-right) movement
  • Y-axis: Vertical (front-back) movement
  • Z-axis: Up-down movement
  • R-axis: Dual spray gun 360° high-speed rotation with reciprocating motion
  • T1-axis: Station A rotation
  • T2-axis: Station B rotation
  • W-axis: Chassis rotation for multi-angle workpiece positioning
  • Closed-loop stepper drive ensures stable, accurate movement across all axes
Spray System & Dual-Station Design
  • Dual WA101 spray guns (0.5mm) with independent oil output control per gun
  • 360-degree high-speed rotating spray combined with reciprocating motion
  • Dual-station (A+B) design enables continuous operation — load/unload while spraying
  • Effective stroke: 290mm * 240mm * 160mm | Spray range: 200mm * 200mm
  • W-axis chassis rotation allows multi-angle spraying without manual repositioning
Control & Components
  • Mansheng touch screen control system with USB communication
  • 10000-level program memory for quick job changeover
  • Leadshine motors across all axes for reliable closed-loop performance
  • HIWIN guide rails and NSK bearings for long-term precision
  • Kunlun Tongtai touch screen | Tiande control buttons
  • Pneumatic: Shannaisi and Yadeke | Electrical: Chint, Delixi, Omron
  • Power supply: Hugong | Synchronous belt: Rubber
Technical Specifications
Model200X7B Hinge Mold Automatic Spray Painting Machine
Body MaterialStainless Steel, Aluminum, Steel
Machine Weight230KG
Overall Dimensions1246 * 1000 * 1768mm (Frame: 825mm)
Effective Stroke290 * 240 * 160mm
Spray Range200mm * 200mm
Positioning Accuracy±0.2mm
Rated Voltage220VAC / 50Hz
Air Pressure0.4-0.6MPa
Power Consumption0.75KW/H
Exhaust PortRound / 200mm
