Specifications
Place of Origin :
Guangdong, China
Brand Name :
EASY
Certification :
CE
MOQ :
1
Price :
$2,460-3,140
Plate type :
Screen Printer
Automatic grade :
Semi-Automatic
Color & page :
Single Color
Voltage :
220V
Dimensions :
940x1000x1350mm
Weight :
160 KG
Max printing size :
Φ120mm*250mm (round), 350*250mm (flat)
Max product length :
370mm
Max printing area :
220x320mm
Max printing speed :
25pcs/min
Machine size :
1000x1350x1600mm
Power support :
220V 50HZ 60W
Air consumption :
500 Litre/Min
Machine frame :
Cast aluminum
Core components :
Bearing, Motor, Pump, Gear, Gearbox
Description

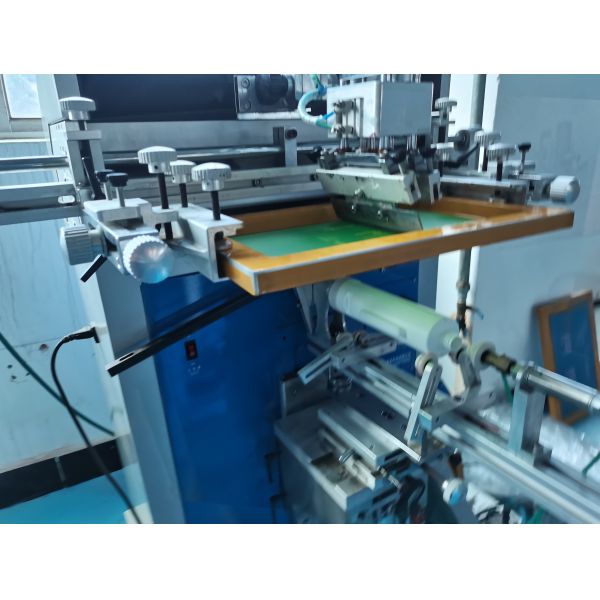

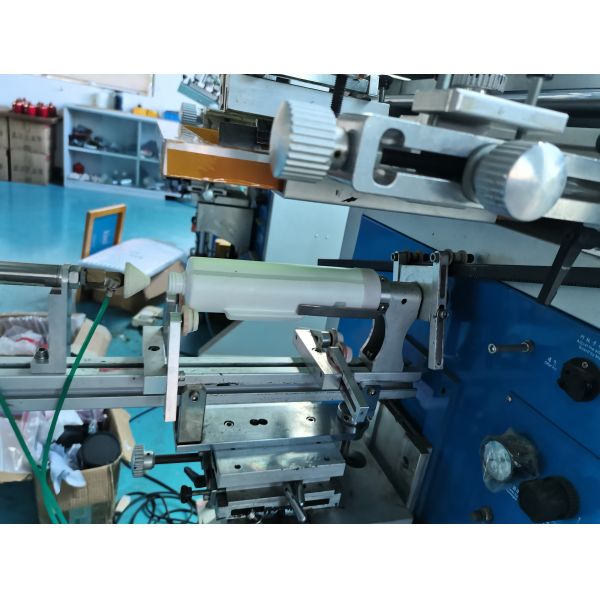

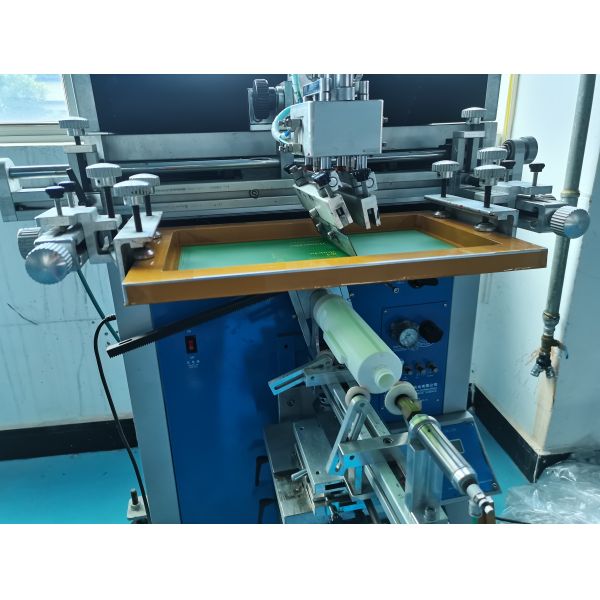

Plastic Bottle Semi Automatic Screen Printing Machine
This multi-functional silkscreen printing machine is designed for printing on various container shapes including round, oval, flat, rectangular, and conical bottles. Ideal for applications on lipstick tubes, cosmetic bottles, drink containers, ceramic mugs, glassware, stadium cups, paper cups, and more.
Product Parameters
Model SF-400
Max printing size Φ120mm*250mm (round) / 350*250mm (flat)
Max product length 370mm
Max printing area 220x320mm
Max printing speed 25pcs/min
Machine size 1000x1350x1600mm
Power support 220V 50HZ 60W
Air consumption 500 Litre/Min
Key Features
Semi-Automatic Screen Printing Machine with 220V Power and 1 Year Warranty for Round Oval Flat Bottles
Semi-Automatic Screen Printing Machine with 220V Power and 1 Year Warranty for Round Oval Flat Bottles
Equipped with three platforms for printing round/oval/flat products
Microprocessor control for easy operation and stable, accurate performance
Built-in 4-digit auto counter
Cast aluminum machine frame for lightweight durability and convenient adjustment
Separate adjustment of pad up/down stroke speed
Auto-balancing ink scraper system
Non-stop ink scraping function to prevent drying
Turnable and adjustable ink cup in vertical/horizontal directions
Extended slide stroke for large workpieces
Premium pneumatic components including German FESTO tubes, Air valve, Omron Sensor, and SMC Cylinder
Product Images
Semi-Automatic Screen Printing Machine with 220V Power and 1 Year Warranty for Round Oval Flat Bottles
Semi-Automatic Screen Printing Machine with 220V Power and 1 Year Warranty for Round Oval Flat Bottles
Semi-Automatic Screen Printing Machine with 220V Power and 1 Year Warranty for Round Oval Flat Bottles
Semi-Automatic Screen Printing Machine with 220V Power and 1 Year Warranty for Round Oval Flat Bottles
Semi-Automatic Screen Printing Machine with 220V Power and 1 Year Warranty for Round Oval Flat Bottles
Semi-Automatic Screen Printing Machine with 220V Power and 1 Year Warranty for Round Oval Flat Bottles
Packing & Delivery
Semi-Automatic Screen Printing Machine with 220V Power and 1 Year Warranty for Round Oval Flat Bottles
Semi-Automatic Screen Printing Machine with 220V Power and 1 Year Warranty for Round Oval Flat Bottles
Semi-Automatic Screen Printing Machine with 220V Power and 1 Year Warranty for Round Oval Flat Bottles
Semi-Automatic Screen Printing Machine with 220V Power and 1 Year Warranty for Round Oval Flat Bottles
Machines are packed with professional, environmentally friendly materials to ensure safe transportation.
Recommended Products
Semi-Automatic Screen Printing Machine with 220V Power and 1 Year Warranty for Round Oval Flat Bottles

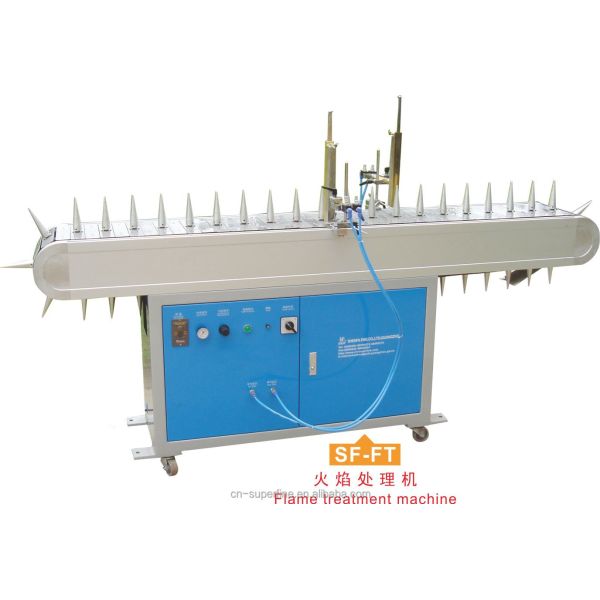

Flaming Treatment Machine
Batch production every two weeks. Monthly output: 20 sets. Delivery time: 14 days.
Semi-Automatic Screen Printing Machine with 220V Power and 1 Year Warranty for Round Oval Flat Bottles
Semi-automatic Screen Printer
Weekly batch production. Monthly output: 100 sets. Delivery time: 7 days.
Semi-Automatic Screen Printing Machine with 220V Power and 1 Year Warranty for Round Oval Flat Bottles

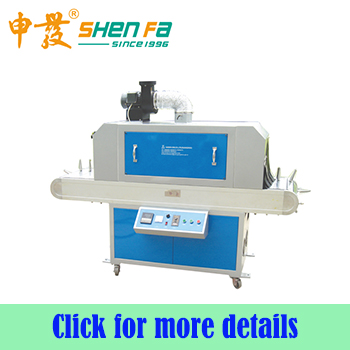

UV Oven Machine
Batch production every two weeks. Monthly output: 20 sets. Delivery time: 14 days.
Semi-Automatic Screen Printing Machine with 220V Power and 1 Year Warranty for Round Oval Flat Bottles

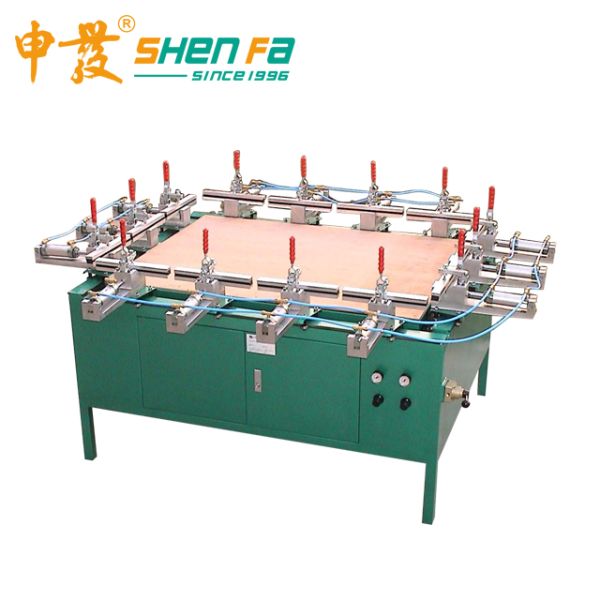

Auto Screen Tense Machine
Company Profile
Semi-Automatic Screen Printing Machine with 220V Power and 1 Year Warranty for Round Oval Flat Bottles
Semi-Automatic Screen Printing Machine with 220V Power and 1 Year Warranty for Round Oval Flat Bottles

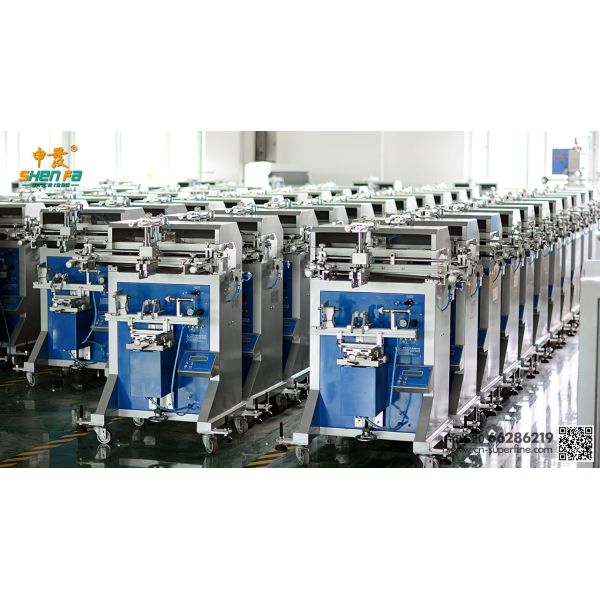

Founded in 1996 and located in Huadu Airport Economic Zone of Guangzhou City, SHENFA operates from a 50,000 square meter production plant. As a specialized manufacturer of printing equipment, we produce screen printing machines, hot-stamping machines, pad printing machines, labeling machines, and 3D digital inkjet printing machines.
Our Facilities
Semi-Automatic Screen Printing Machine with 220V Power and 1 Year Warranty for Round Oval Flat Bottles
R&D Center
Semi-Automatic Screen Printing Machine with 220V Power and 1 Year Warranty for Round Oval Flat Bottles
CNC Center
Semi-Automatic Screen Printing Machine with 220V Power and 1 Year Warranty for Round Oval Flat Bottles
Assembling Center
Semi-Automatic Screen Printing Machine with 220V Power and 1 Year Warranty for Round Oval Flat Bottles
Commissioning Center
Semi-Automatic Screen Printing Machine with 220V Power and 1 Year Warranty for Round Oval Flat Bottles
Sales Center
Semi-Automatic Screen Printing Machine with 220V Power and 1 Year Warranty for Round Oval Flat Bottles
After-Sale Service Center
Quality Components
Our machines incorporate components from world-renowned brands including Rexroth, Schneider, SMC, and Mitsubishi.
