Fully Automatic Tube Loading machine System
Fully Automatic Tube Loading machine System
Fully Automatic Tube Loading machine System
Fully Automatic Tube Loading machine System
Specifications
Automatic Grade :
Automatic
Air Pressure :
0.6 - 0.8 mpa
Max Speed :
70 pcs / min
Power :
AC220V 50Hz 2Kw
Type :
Loading System
Cliche Size :
Dia 16 - 60 mm
Machine Size :
215 * 115 * 155 cm
Condition :
New
Brand Name :
EASY
Model Number :
SF-PG2
Certification :
CE
Place of Origin :
China
MOQ :
1 Set
Price :
USD Negotiable Per Set
Payment Terms :
T/T, L/C, Western Union, MoneyGram
Supply Ability :
10 Sets Per Month
Delivery Time :
10 Work Days
Packaging Details :
Ply Wooden Case
Usage :
Tubes Loading System
Description

Fully Automatic Tube Loading System

Type Loading System
Model SF-PG2
Product Tubes
Cliche Size Dia16-60mm
Max Speed 70pcs / min
Air Pressure 0.6-0.8mpa
Power AC220V 50Hz 2Kw
Machine Size 215*115*155cm

Liberation for traditional labor of uploading the products one by one manually.

For round piping products can be put into the unscrambler bucket in batches.

The unscrambler channel with all purposes guide rail, can be adjusted flexibly according to different size.

The machine unloading by servo, can be set uploading travel distance accurately according to products sizes.

When the sensor checks the unexpected products, it will blow back to the unscrambler bucket for unloading again.

Equips with 180 degree rotating cylinder, sensors will do inspection accurately before loading onto conveyor, so as to assure products all in corret direction.

1. Machine Pictures

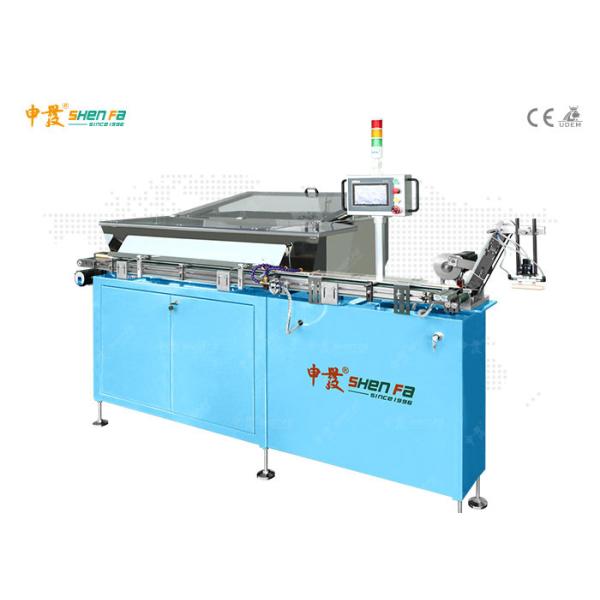

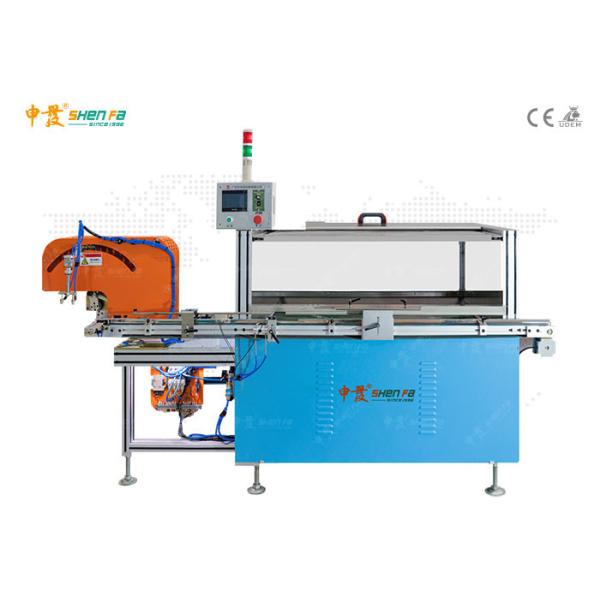

Fully Automatic Tube Loading machine System

Fully Automatic Tube Loading machine System

2. Company Information

Fully Automatic Tube Loading machine System
