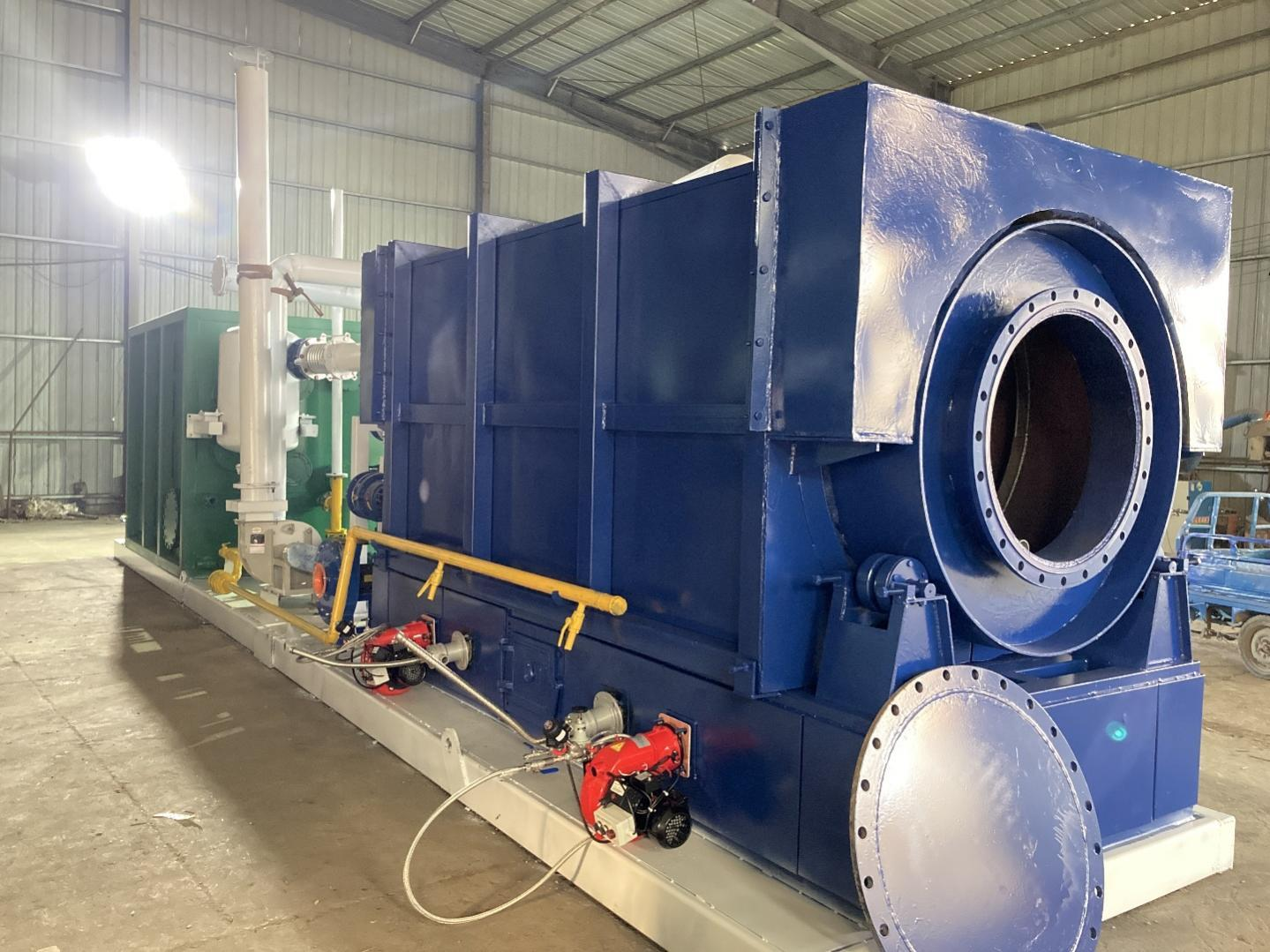

MJ-2 Model Skid Mounted Waste Plastics Pyrolysis Plant Weight KG 15000 kg
MJ-2 Model Skid Mounted Waste Plastics Pyrolysis Plant Weight KG 15000 kg
MJ-2 Model Skid Mounted Waste Plastics Pyrolysis Plant Weight KG 15000 kg
MJ-2 Model Skid Mounted Waste Plastics Pyrolysis Plant Weight KG 15000 kg
MJ-2 Model Skid Mounted Waste Plastics Pyrolysis Plant Weight KG 15000 kg
MJ-2 Model Skid Mounted Waste Plastics Pyrolysis Plant Weight KG 15000 kg
MJ-2 Model Skid Mounted Waste Plastics Pyrolysis Plant Weight KG 15000 kg
MJ-2 Model Skid Mounted Waste Plastics Pyrolysis Plant Weight KG 15000 kg
MJ-2 Model Skid Mounted Waste Plastics Pyrolysis Plant Weight KG 15000 kg
MJ-2 Model Skid Mounted Waste Plastics Pyrolysis Plant Weight KG 15000 kg
MJ-2 Model Skid Mounted Waste Plastics Pyrolysis Plant Weight KG 15000 kg
MJ-2 Model Skid Mounted Waste Plastics Pyrolysis Plant Weight KG 15000 kg
Specifications
Condition :
New
Applicable Industries :
Manufacturing Plant
Showroom Location :
None
Place of Origin :
Henan, China
Brand Name :
MINGJIE
Model Number :
MJ-2
Warranty :
1 Year
Production Capacity :
Other
Machinery Test Report :
Provided
Video outgoing-inspection :
Provided
Marketing Type :
New Product 2023
Warranty of core components :
1 Year
Core Components :
Motor, Other, Bearing, Gear, Pump, Engine, Gearbox
Weight (KG) :
15000 kg
Raw material :
Q245R Boiler Steel
Product name :
Skid Mounted Pyrolysis Plant
Capacity :
1-2Tons/Batch
Application :
Plastic
Machinery Type :
Waste Recyling
Operation :
Batch Type
Certification :
CE Certificate
Final product :
Fuel Oil, Carbon Black and Combustible Gas
Packaging Details :
40HC CONTAINER
Port :
Qingdao
Supply Ability :
10 Set/Sets per Month
Price :
$31,000.00/sets >=1 sets
MOQ :
1 unit
Description

I. TECHNICAL PARAMETERS (TAKE THE DIESEL FUEL OIL AS THE REFERENCE)

Model

MJ-2 Batch Type Pyrolysis Plant

Applicable Solid Waste

Used Plastics(Except for PET&PVC)/Aluminium Film/Medical Blister Waste...

Reactor Size

D1400*L5500mm*T12mm

Reactor Material

Q245R Boiler Steel

Input Processing Capacity

3-4 TPD, 2 Batches

Operation

Batch

Final Extracted Products

Pyrolysis Oil+Carbon Black+Steel Wires(Only for Tires)+Combustible Gas

Required Energy Supply

Electric and Fuel

Power Consumption

12 kw/h

Diesel Consumption

120 Liter

Rotating Speed

0.4turn/min

Inside Pressure

<0.04mpa

Land Required

30 square meter

Workers Required

2 workers, two shifts

Loading Plan

One 40HC Container

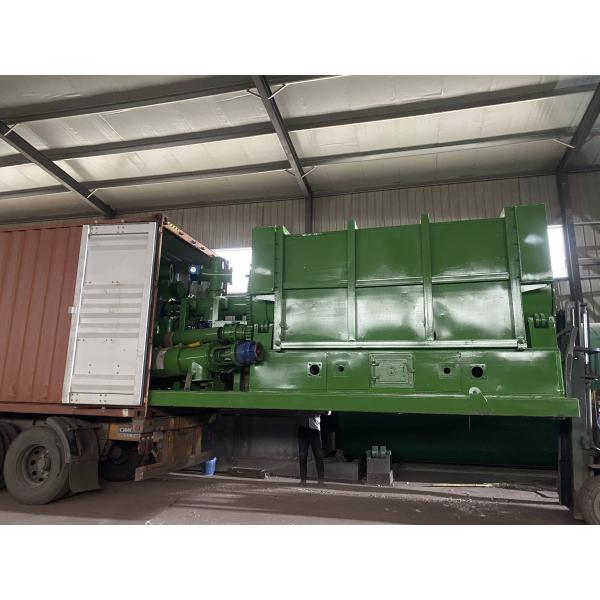

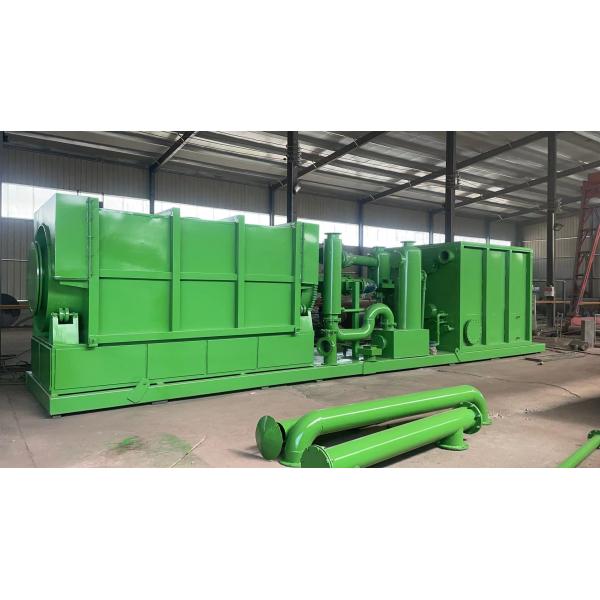

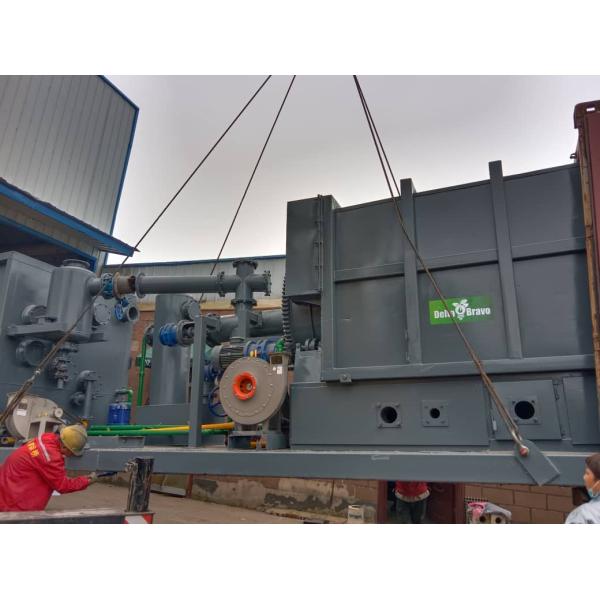

II.PROJEXT DISPLAYS:
MJ-2 Model Skid Mounted Waste Plastics Pyrolysis Plant Weight KG 15000 kg
MJ-2 Model Skid Mounted Waste Plastics Pyrolysis Plant Weight KG 15000 kg

MJ-2 Model Skid Mounted Waste Plastics Pyrolysis Plant Weight KG 15000 kg

MJ-2 Model Skid Mounted Waste Plastics Pyrolysis Plant Weight KG 15000 kg

III. WHAT DOES OUR SCOPES OF SUPPLY INCLUDE?

No.

Items

Specification

1

Reactor/1set

D1400*L4000*12 mm

Material: Q245R boiler steel

2

Diesel Burners/2 sets

Heating capacity:

300,000Kcal/h

Two sections of fire

3

Reactor Casing/1 set

φ1710*3300

Insulation of the reactor, inside put the high temperature ceramic wool and refractory material

4

Reactor base/1 set

Reactor supporter , and heating burner, reduce civil works , shorten installation time

5

Gas separator/1 set

Φ530*1000mm

Separating heavy oil gas and light oil gas

6

Integrated Condenser/1 set

2250*2000*2800

Oil gas condenser

oil storage tank

Water seal

7

8

9

Flue tube condenser/1 set

Φ320*1500mm

Cool down the smoke, protect draft fan and better meet environmental standards

10

Draft fan/1 set

For smoke flowing to dedustor

Power: 4KW

11

Desulfurization Tower/1 set

Ø530*2300mm

Φ325*2000mm

12

Atomized water tank/1 set

13

Chimney/1 set

14

Electric control cabinet/1 set

Complete controlling of the electrical parts in the system

Temperature & Pressure display,

Over temperature & pressure alarm

15

Syngas burner/2 sets

For combustible gas burning

16

Air blower/1 set

For syngas burning

Power: 2.2kw

17

Water pump/1 set

2.2KW

18

Oil pump/1 set

2.2KW
