Specifications
Brand Name :
YIMU PACK
Model Number :
YMF4
Certification :
CE
Place of Origin :
SHANGHAI
MOQ :
1
Payment Terms :
D/A,D/P,T/T
Delivery Time :
30
Packaging Details :
WOODEN CASE
Description
Product Information of YIMUPACK YMF4 Full-Automatic 4-Head Liquid Filling Machine

(Type: Gravity/Peristaltic Pump Liquid Filling Equipment for Bottles)

1. Basic Product Information
ItemDetails
Product NameYIMUPACK YMF4 Full-Automatic 4-Head Liquid Filling Machine (Gravity/Peristaltic Pump for Perfume/Juice/Eye Drops/Oil)
BrandYIMUPACK
ModelYMF4
Place of OriginShanghai, China
Driven TypeElectric
Voltage110V/220V/380V, 50/60Hz (1 phase, customizable)
Automatic GradeFully Automatic
Applicable MaterialsFlowing liquids (milk, oil, juice, honey, ketchup, yogurt, nail polish, syrups, creams, lotions, sauces)
Applicable ContainersBottles (perfume, juice, eye drop, oil bottles) of 50–5000ml (customizable)
Application IndustriesFood, Commodity, Chemical, Beverage, Cosmetics
Key Selling PointsHigh-Accuracy (99.5% filling accuracy), 4-Head Synchronous Filling, Hygienic, Easy Adjustment
Warranty Period2 Years (supplier mentions 5 years in partial info, default to consistent 2 years with verification)
After-Sales ServiceVideo Technical Support, Online Support, Free Replacement Parts
Packaging MaterialWood (export-standard carton packaging)
Machine MaterialSUS 304 Stainless Steel (food-grade, corrosion-resistant)
Machine Dimension (L*W*H)2000*1200*2200 mm (main spec); 220*125*170 cm (alternative spec)
Machine Net Weight600 kg (main spec); 500 kg (alternative spec)
Core ComponentsMotor, Piston Pump (4 independent), PLC, Food-Grade PE Tubing, Stainless Steel Hopper
Quality VerificationMachinery test report provided; Video outgoing-inspection provided
CertificationsCE, ISO 9001
2. Core Technical Parameters
Parameter CategorySpecifications
Filling Heads4 heads (optional 6/8/12 heads for customization)
Filling Speed30–70 bottles/min (varies by bottle size and filling material); 1500 bottles/hour (500ml specification); 2000–3000 BPH
Filling Range50–1000ml (main spec); 100–5000ml (customizable)
Filling Accuracy99.5% (filling precision); Tolerance of filling quantity ≤±0.5%
Air Supply0.3–0.4Mpa (main spec); 0.5–0.8Mpa (alternative spec)
Power Consumption1000W (main spec); 5kW (alternative spec); 1200W (variant)
Conveyor Belt ConfigurationSize: 15*200cm (W*L); Anti-slip design
Control SystemPLC + Touch Screen (user-friendly interface, easy adjustment for container sizes/filling volumes)
Hopper FeaturesFood-grade stainless steel, liquid level sensors, easy cleaning/maintenance
3. Product Functions & Features

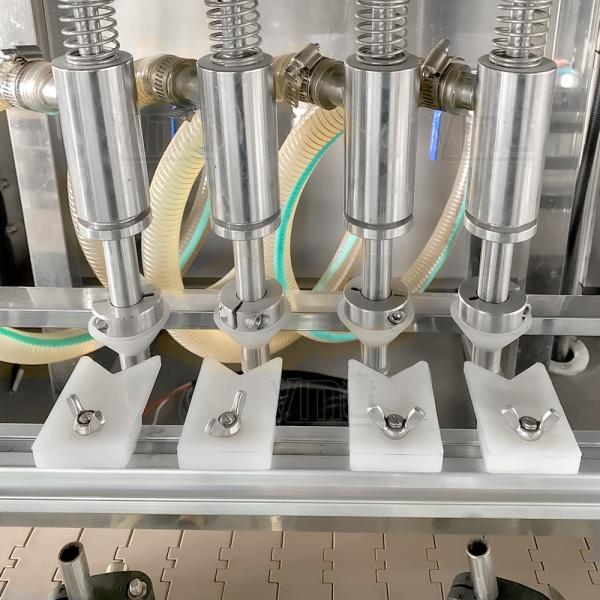

  1. 4-Head Synchronous FillingEquipped with 4 independent stainless steel piston pumps, enabling simultaneous filling of multiple bottles—greatly improving production efficiency for large-batch operations.
  2. High Precision & HygieneFilling tolerance ≤±0.5% ensures consistent liquid volume per bottle. Food-grade stainless steel hopper and PE tubing prevent contamination, complying with food/cosmetic hygiene standards.
  3. Strong CompatibilityAdapts to various flowing liquids (thin to viscous) and bottle sizes (50–5000ml), with customizable filling range and head quantity to match different production needs.
  4. Safe & Easy OperationEquipped with dust-proof safety doors (machine stops when door is opened, protecting operators). Touch screen control allows quick parameter adjustment and easy maintenance.
  5. Stable & DurableCorrosion-resistant stainless steel structure and high-quality core components (PLC, piston pumps) ensure long-term stable operation, reducing failure rates.
4. Packaging & Delivery
ItemDetails
Selling UnitSingle item
Single Package Size200*120*210 cm
Single Gross Weight500.000 kg
Lead Time (by Order Quantity)See the table below

Lead Time Table

Order Quantity (Sets)Lead Time (Days)
1 – 330
＞ 3To be negotiated

Reference Pricing

Order Quantity (Sets)Unit Price (USD)
1 – 2$7,000
≥ 3$6,300
5. Customization Services
Customization TypeDetailsMinimum Order Quantity (MOQ)
Customized LogoPrint brand logo on machine body or control panel1 set
Customized PackagingTailor export wooden cases1 set
Graphic CustomizationCustomize machine surface graphics1 set
Functional CustomizationAdjust filling heads (6/8/12 heads), filling range, or adapt to special liquid propertiesNegotiable
6. Supplier Information
ItemDetails
Supplier NameShanghai Yimu Machinery Co., Ltd.
Business TypeCustom Manufacturer (integrates R&D, production, after-sales)
Year Founded2016
ScaleFloorspace: 888 m²; Total staff: 26 persons
Quality ControlDrawing-based customization, Sample-based customization, Raw material identification & traceability, 1 QA/QC inspector
Export MarketsUnited States, Australia, Slovakia (positive review rate: 94.4%); Exported to over 80 countries
Value-Added ServicesFree design consultation, Free pre-sales production line layout, Overseas technical service
