75mm Premade Pouch Packaging Machine
75mm Premade Pouch Packaging Machine
75mm Premade Pouch Packaging Machine
75mm Premade Pouch Packaging Machine
75mm Premade Pouch Packaging Machine
75mm Premade Pouch Packaging Machine
75mm Premade Pouch Packaging Machine
75mm Premade Pouch Packaging Machine
Specifications
Brand Name :
ZONPACK
Model Number :
ZH-GD8-200
Certification :
CE SGS
Place of Origin :
China,Zhejiang
MOQ :
1sets
Price :
USD+23500-40000+Sets
Payment Terms :
L/C, D/A, D/P, T/T, Western Union
Supply Ability :
99+sets+per month
Delivery Time :
45working days
Packaging Details :
Wooden case
Bag type :
pre-made bag , zipper bag , stand up pouch bag
Material :
304SS , 316SS
Warranty :
1 years
Touch screen :
7inch , Weinview
Speed :
25-60bags / min
Accuracy :
±0.5gram
Working Position :
Eight Position
Pouch size :
W : 100-200mm L : 75-300mm
Feature :
Adopting PLC and touch screen , easy to operate
Description

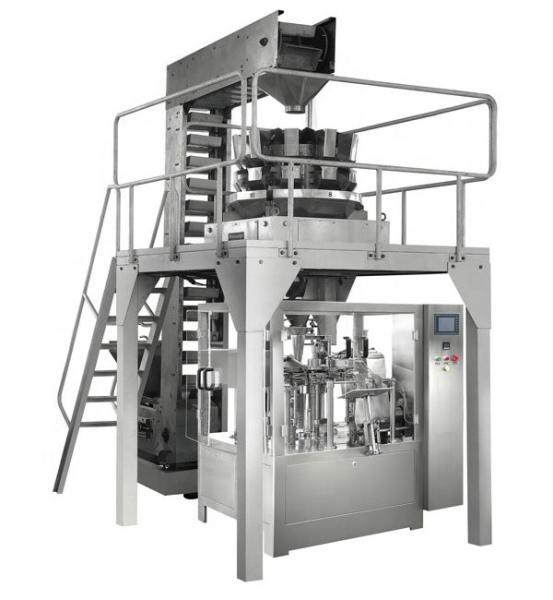

CE Stand up premade pouch bag packaging machine for dry nuts raisin peanut packing machine

1 . Main function

1 . Automatically check bag open status, it will not fill and seal when bag is not opened fully. It avoids the wasting of bag and raw material and save cost.

2 . Machine working speed can be adjusted continuously with frequency converter

3 . PLC from SIEMENS is adopted, the control system is easy to operated with friendly HMI interface.

4 . Machine will alarm when the air pressure is abnormal and stop working with overload protect and safety device.

5 . Machine can work with dual-fill, filling with two types of material, such as solid and liquid, liquid and liquid.

6 . Machine can work with bag that width range from 100-200mm, by adjusting the width of clips.

7 . Adopting advanced bearing, where no need to add oil and less pollution for product.

8 . Rotary packing machine can work with different filler to pack solid, powder and liquid.

9. Hygienic construction, the product contact parts are adopted sus304 stainless steel.

2 . Technical Specification

Model ZH-GD8-200
Packing Speed 25-50 bag/min
Bag Size (mm)

W: 100-200mm L: 75-300mm

W: 200-300mm L: 200-450mm

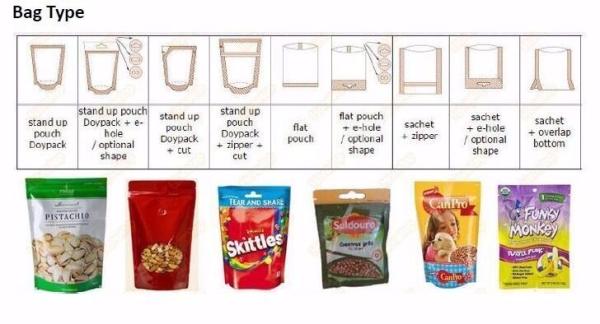

Bag Type

Flat pouch, Stand up pouch, Stand up

pouch with zipper
Air Consumption 0.4 m3/min 0.8Ma/
Packing Material POPP/CPP, POPP/VMCPP,BOPP/PE,PET/AL/PE, NY/PE, PET/PET
Power Parameter AC380V/50Hz/3KW
Machine Dimension(mm) 1770(L) ×1700(W)×1800(H)
Gross Weight (Kg) 1200

3 . Application

ZH-GD8-200 Rotary packing machine is suitable for automatic packing for grain and solid food, such as beans, nuts, dry fruits, candy, cereal, chocolate, biscuit, peanut, capsule, seeds, chemicals, sugar, pistachio , apple slices etc.

75mm Premade Pouch Packaging Machine

75mm Premade Pouch Packaging Machine

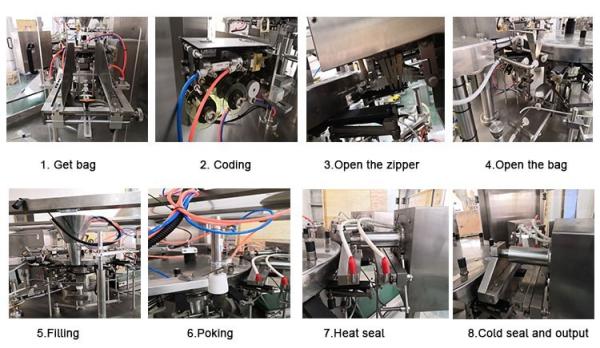

4 . Working process of Pre-made bag Packing Machine

75mm Premade Pouch Packaging Machine

75mm Premade Pouch Packaging Machine

75mm Premade Pouch Packaging Machine

5 . Our Factory

Why choose ZONPACK :

  • ZonPack have professional great and experience engineer team to service each customer.One Designer and one technical engineer to serve one customer team.
  • Over 15 years experience of weighing and packing solution.
  • 60 countries customer choices.

75mm Premade Pouch Packaging Machine
