CCCF Stainless Steel Automatic Fire Monitor 60M Monitoring Large Space Fire Protection
CCCF Stainless Steel Automatic Fire Monitor 60M Monitoring Large Space Fire Protection
CCCF Stainless Steel Automatic Fire Monitor 60M Monitoring Large Space Fire Protection
CCCF Stainless Steel Automatic Fire Monitor 60M Monitoring Large Space Fire Protection
CCCF Stainless Steel Automatic Fire Monitor 60M Monitoring Large Space Fire Protection
CCCF Stainless Steel Automatic Fire Monitor 60M Monitoring Large Space Fire Protection
Specifications
Place of Origin :
Henan, China
Brand Name :
LinkZone
Model Number :
ZDMS 0.8/20S-LZ II
Packaging Details :
International Standard Export Packing
Supply Ability :
200000 Set/Sets per Year
MOQ :
1sets
Price :
Negotiable
Certification :
CCCF
Product Name :
Automatic Fire Monitor
Rated working pressure (MPa) :
0.8
Rated flow (L / s) :
20
Maximum protection radius(m) :
50
Jet radius (m) :
55
Monitoring radius(m) :
60
Positioning time(s) :
≤30
Installation height (m) :
8~15
Horizontal swing angle(°) :
≥180
Voltage :
AC 110V~240V
Description

Stainless Steel Automatic Fire Monitor For Large Space Fire Protection

Product Overview
Automatic Fire Monitor
Our intelligent Automatic Fire Monitor adopts infrared thermal imaging principle and air-to-air missile tracking technology,It has the functions of real-time measurement and calculation of the real-time temperature of the fire, automatic tracking of the fire, automatic spraying to extinguish, and automatic water shutoff after the fire is extinguished.
FEATURES AT A GLANCE
ITEM#:ZDMS 0.8/20S-LZ II
DIMENSION:580×360mm
NET WEIGHT:10KG
MODEL: ZDMS0.8/20S-LZ II
SENSOR:IR SENSOR
VOLTAGE:220V
COMMUNICATION METHOD:CAN bus
KEYWORD:Automatic Fire Monitor
CCCF Stainless Steel Automatic Fire Monitor 60M Monitoring Large Space Fire Protection
PRODUCT SPECIFICATIONS
No
Item
Standard &Requirements
Inspection results
1
Rated working pressure (MPa)
≤0.8
0.6
/
2
Rated flow (L / s)
20×(1±8%)
20.1
/
3
Maximum protection radius(m)
≥50
50
/
4
Jet radius (m)
≥55
55
/
5
Monitoring radius(m)
≥80
80
/
6
Positioning time(s)
≤60
59
60
7
Installation height (m)
8~15
8
15
8
Horizontal swing angle(°)
≥180
360
9
Minimum pitch profile(°)
-90~+30
-90~+30
10
working temperature
4~55℃ ≤95%RH
4~55℃ ≤95%RH
11
Guidance system
Φ 15.5 ± 0.5
Φ 15.5 ± 0.5

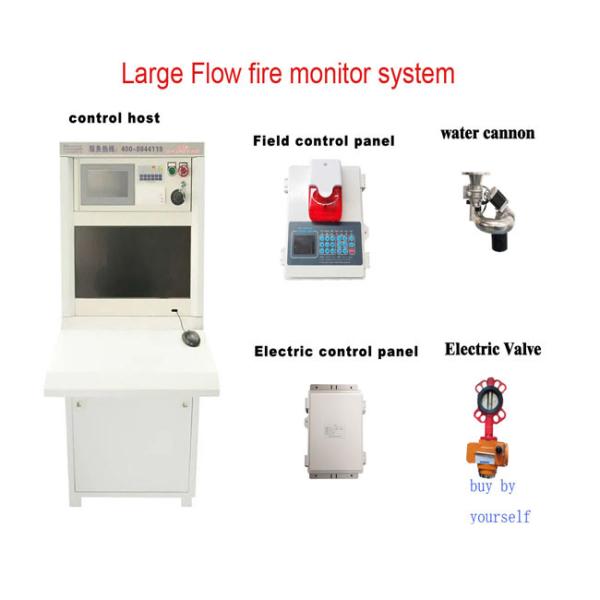

PRODUCT CONFIGURATION OF AUTOMATIC FIRE MONITOR

CCCF Stainless Steel Automatic Fire Monitor 60M Monitoring Large Space Fire Protection

CCCF Stainless Steel Automatic Fire Monitor 60M Monitoring Large Space Fire Protection
SALES AND SERVICE NETWORK
CCCF Stainless Steel Automatic Fire Monitor 60M Monitoring Large Space Fire Protection
Successful Project
CCCF Stainless Steel Automatic Fire Monitor 60M Monitoring Large Space Fire Protection
FAQ
Q1: Are you a manufacturer?
A1: Yes. We are a professional manufacture of Automatic Fire Monitor.
Q2: What certificates do you have?
A2: We only have CCCF and ISO at present. FM certificate will be done later.
Q3: What are the advantages of your full automatic fire monitor?
A3: Our Automatic Fire Monitor has the following functions: 1. Remote Video Surveillance. 2. Fire Alarm. 3. Intelligent Fire Extinguishing.
