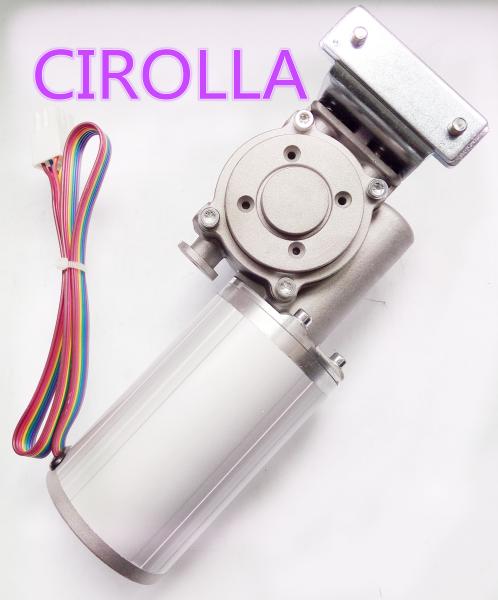

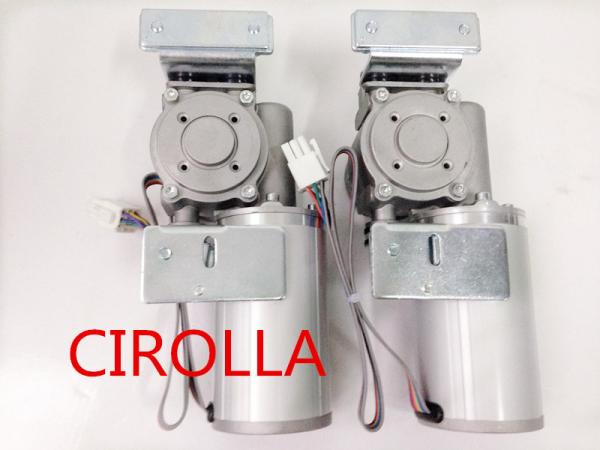

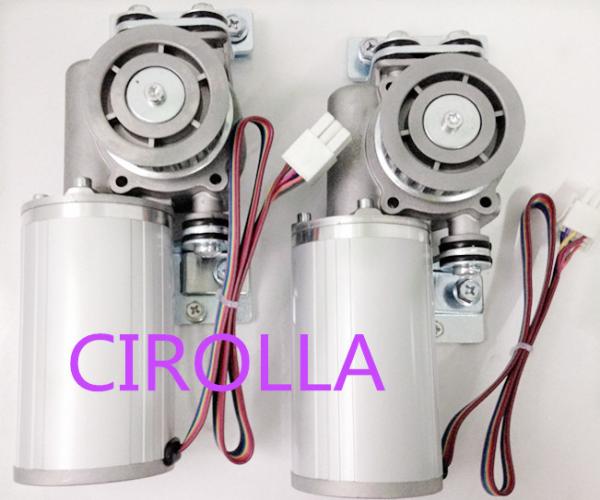

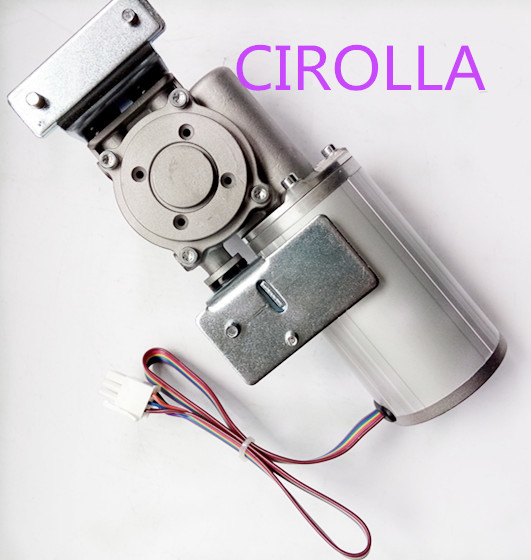

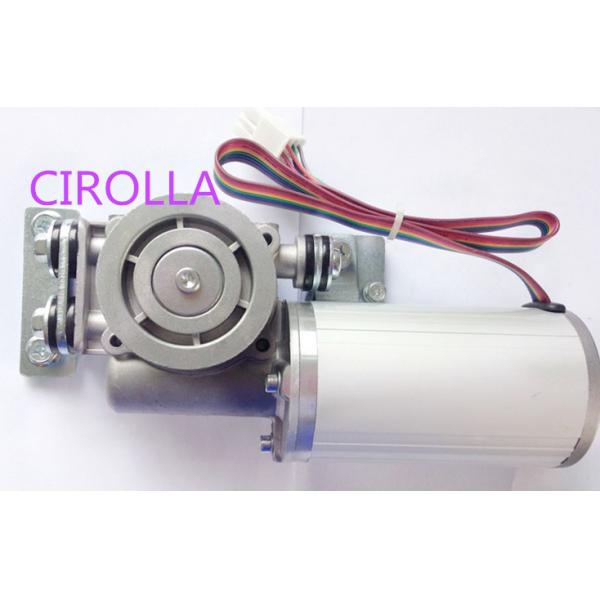

Durable Aluminum Brushless Electric Sliding Door Motor 75W 24VDC
Durable Aluminum Brushless Electric Sliding Door Motor 75W 24VDC
Durable Aluminum Brushless Electric Sliding Door Motor 75W 24VDC
Durable Aluminum Brushless Electric Sliding Door Motor 75W 24VDC
Durable Aluminum Brushless Electric Sliding Door Motor 75W 24VDC
Durable Aluminum Brushless Electric Sliding Door Motor 75W 24VDC
Durable Aluminum Brushless Electric Sliding Door Motor 75W 24VDC
Durable Aluminum Brushless Electric Sliding Door Motor 75W 24VDC
Specifications
Brand Name :
CIROLLA
Model Number :
4008
Certification :
CCC/CE/SGS
Place of Origin :
Zhejiang,China
MOQ :
100pcs
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
50000pcs/month
Delivery Time :
7 working days
Packaging Details :
standard carton
power :
75w
color :
sliver white
voltage :
24 vdc
shape :
round
lifetime :
10 years
noise leave :
<50dB
Description

Aluminum Brushless Automatic Sliding Door Motor 75W 24VDC High Quality and Long Lifetime with CE/ CCC/SGS Certificate

Descriptions:

Popular 24v Dc Brushless Automatic Sliding Door Motor
Powerful,Long Life
Steel,Aluminium
Ce&Iso Certificated
Manufacture

Safety Features

1. Quality assurance guarantees

All models have undergone over 3,000,000 inspection examinations including high and low temperature tests. Models have been run for 72 hours at 70 degree with out trouble. Low temperature tests prove normal running operation to an impressive -17 degree .

2. Multiple functions.

Multiple functionality allows you to choose from manual operation, automatic full open, automatic half open, one way in/out and locked conditions as required.

37 built-in parameters including door opening speed, closing speed, half opening width, open time and lock status can all be adjusted at your convenience to achieve an optimum state.

3. Safety

The door leaves will automatically reverse motion when resistance is detected. Optional electronic locking mechanisms protect users’ safety.

4. Intelligence

The unique PSA control board offers quick and easy function adjustment and overhaul. Placed within 50 meters of the main door, it is capable of handling function adjustment, parameter adjustment, function selection and breakdown diagnosis display.

The operator adopts a modularized design extending the automatic doors life-span, allowing for convenient examination, repair and safeguarding.

5. Quietness

Drive unit adopts a quality speed reduction mechanism, KBB's own creation, a special nylon fiber guide rail and a self-lubricating nylon load bearing pulley mechanism. All greatly reducing the automatic doors motion noise and giving users a quieter and more comfortable experience.

Technical Data

Power supply: 220VAC±10%,50HZ ,10A

Rated power:75W/100W

Max. door opening weight:150N

UPS backup battery: 30min

Ambient temperature: -30 ~ 50 degree

Max. relative humidity: 90%
Protection level: IP23

Remarks: Design and specification are subject to change without notice. Products are tailored to meet your requirement.

Door Datas:

Max door weight(single) 1x200 kgs
Max door weight(double) 2x150 kgs
Door leaf weight 700-1300mm
Opening speed 150-500mm/s(Adjustable)
Closing speed 100-450mm/s(Adjustable)
Square Motor 24V 60W Brushless DC motor
Opening time 0-9second(Adjustable)
Voltage AC90-250V 50Hz-60Hz
Operating Temperature -20°C-70°C

Key Components

1, Door glass: Laminated glass/Tempered glass

2, PSA control panel

3, Aluminum alloy frame

4, Motor: Dunkermotoren

5, Carriage wheel

6, Supporting rails

7, PHILIPS CPU

8, Radar

9, Safety beam - Option

10, Key switch - Option

11, Back-up battery - Option

12, Double drive unit - Option

13, Electro-mechanical lock - Option

Product Specification:

Durable Aluminum Brushless Electric Sliding Door Motor 75W 24VDCDurable Aluminum Brushless Electric Sliding Door Motor 75W 24VDCDurable Aluminum Brushless Electric Sliding Door Motor 75W 24VDC
