Hotels Automatic Sliding Door Motor For Interior Door Operators
Hotels Automatic Sliding Door Motor For Interior Door Operators
Specifications
Brand Name :
CIROLLA
Model Number :
4001-3
Certification :
CE/CCC/ SGS
Place of Origin :
Zhejiang, China
MOQ :
500PCS
Price :
Negotiation
Payment Terms :
T/T,L/C, Western Union
Supply Ability :
50,000pcs/month
Delivery Time :
25-30days
Packaging Details :
Standard pack,10pcs/carton, weight 2.0kg
Motor Type :
Brush, 24VDC, 100W
Construction :
Permanent Magnet DC
Rotation Direction :
Reversible
Application :
Automatic sliding door
Door configuration :
Single door , Double-door
Encoder available :
2 signals, 100pulse, Honeywell brand
Description

Automatic Sliding Glass Door Brush Motor For Interior Door Operators

Description:

The advanced brush dc motor supported by intelligent Honeywell software can self-learn the stroke. The brush motor and the worm-reduction gear are integrated together, with advantageous features such as higher efficiency, larger torque and longer life span. The motor noise is extremely low because of its precise manufacturing technology and direct driving design. The motor can lock automatically if there is no triggering signal. The powerful closing force keeps the door shut fast.

Applications:

This kind of brush gear dc motors are used for Automatic sliding door operators, interior door operators, telescopic door operators, automatic swing door operators, emergency evacuation automatic doors and curved doors, which are widely used in hotels, banks, airports, commercial buildings, hospitals and factories.

Specifications:

Brushed gear motor specs:

Type

Brush

Voltage

24VDC

Power

100W

No load Speed

220rpm

No load Current

1.0A

On load Speed

180rpm

On load Current

4.5A

Stall torque

17Nm

Protection class

IP44

Weight

2.0kg

Encoder Honeywell

2signals,100pulse

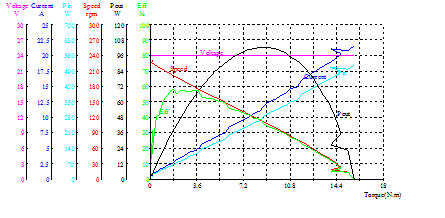

Brushed gear motor TEST:

Hotels Automatic Sliding Door Motor For Interior Door Operators

State

Voltage

Current

Pin

Torque

Speed

Pout

Eff

V

A

W

N.m

rpm

W

%

Speed_max

24.01

0.594

14.26

0.18

229.7

4.37

30.6

Eff_max

24.01

2.722

65.37

1.81

200.8

38.13

58.3

Pout_max

23.99

11.07

265.8

8.51

115.0

102.5

38.5

Torque_max

23.98

21.58

517.8

15.78

0.0

0.00

0.0

End

23.98

21.58

517.8

15.78

0.0

0.00

0.0

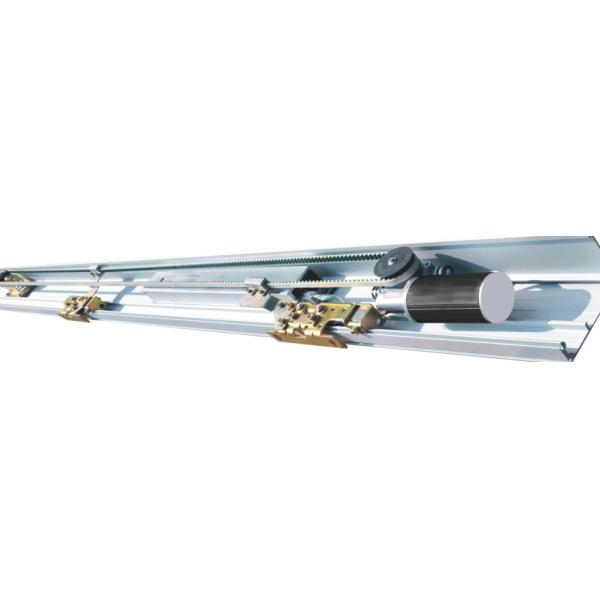

Automatic Sliding glass door system:

Hotels Automatic Sliding Door Motor For Interior Door Operators

Automatic Sliding Glass Door Application:

Hotels Automatic Sliding Door Motor For Interior Door Operators

Competitive Advantage:

1) Silent operation, suitable for continuous service;
2) Micro-computer controller, self setup and adjustment;
3) Automatic stop when meet obstacles during opening, automatic reverse when meet obstacles during closing;
4) Adjustable door opening speed and distance;
5) Automatic closing function after opening, auto closing time adjustable;
6) Soft start and soft closing;
7) Full open or half open optional;
8) Easy open the door leaf by hands during power off;
9) High density aluminum track, special configuration design keep in shape always;
10) Smooth operation of the track, good for continuous service, quiet operation.
