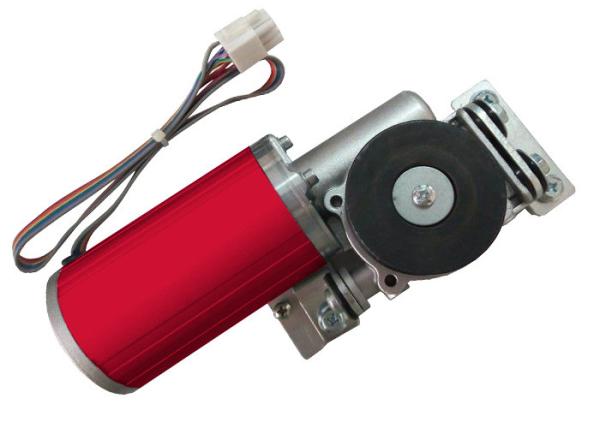

150rpm Low Sound Brushless DC Motor For Glass Door 24 Volt 75W IP44
150rpm Low Sound Brushless DC Motor For Glass Door 24 Volt 75W IP44
150rpm Low Sound Brushless DC Motor For Glass Door 24 Volt 75W IP44
150rpm Low Sound Brushless DC Motor For Glass Door 24 Volt 75W IP44
150rpm Low Sound Brushless DC Motor For Glass Door 24 Volt 75W IP44
150rpm Low Sound Brushless DC Motor For Glass Door 24 Volt 75W IP44
Specifications
Brand Name :
CIROLLA
Model Number :
4008
Certification :
CE/CCC/ SGS
Place of Origin :
Zhejiang, China
MOQ :
300PCS
Price :
Negotiation
Payment Terms :
T/T,L/C, Western Union
Supply Ability :
50,000pcs/month
Delivery Time :
25-30days
Packaging Details :
Standard,10pcs/carton, weight 2.5kg
Description

150rpm Low Sound Brushless DC Motor For Glass Door 24 Volt 75W IP44​

Description:

Brushless motor provides power for automatic sliding doors, with silent operation, has big torque, long service life and high efficiency. It adopts European technology to integrate motor with gear box, which offers strong driving and reliable operation and increased power output, it can adapt to a large doors. Helical gear transmission in the gear box ensures the stable and reliable operation, even used for heavy door, the whole system operates easily.

Specifications:

Brushless Motor:

Type

Brush less

Voltage

24VDC

Power

75W

No-load speed

150rpm

On-load speed

120rpm

Noise level

≤50dB

Protection class

IP44

Gear Ratio

1:15

Weight

2.25kg

Lifetime

3million cycles,10years

Application

Automatic Sliding Glass door

150rpm Low Sound Brushless DC Motor For Glass Door 24 Volt 75W IP44

Applications:

This kind of brushless motor can be used on any kinds of Automatic doors: Sliding Door, Swing Door, Curved Door, Folding Door, Hermetical Door, Telescopic Door, Panic Door, Revolving Door, and Hospital, which are widely used in Hotel, Hospital, Shopping Mall, Bank, Commercial office building, etc.

150rpm Low Sound Brushless DC Motor For Glass Door 24 Volt 75W IP44

150rpm Low Sound Brushless DC Motor For Glass Door 24 Volt 75W IP44

Competitive Advantage:

1. Small size and Reasonable Design, high-strength wear-resistant gears and high processing makes it more stable, quiet, longer life, higher efficiency, larger torque.

2. Brushless motors have LONG LIFE than brushed motors (more than 3,000,000 cycles), with 10years warranty.

3. LOW NOISE than brushed motor, because of its precise manufacturing technology and direct driving design.

4. powerful closing force keeps the door shut fast. Internal circuit protection device safe, even if the frequent opening and closing, also can achieve long-term trouble free operation

5.Security:Automatic stop when meet obstales during opening,automatic reverse when meet obstales during closing, Automatic lock if there is no triggering signal.
