Black And Square Automatic Sliding Door Motor , Sample Brushless DC Motor
Black And Square Automatic Sliding Door Motor , Sample Brushless DC Motor
Black And Square Automatic Sliding Door Motor , Sample Brushless DC Motor
Black And Square Automatic Sliding Door Motor , Sample Brushless DC Motor
Black And Square Automatic Sliding Door Motor , Sample Brushless DC Motor
Black And Square Automatic Sliding Door Motor , Sample Brushless DC Motor
Specifications
Brand Name :
CIROLLA
Model Number :
4009
Certification :
CC/CCE/SGS
Place of Origin :
Zhejiang,China
MOQ :
100pcs
Price :
usd
Payment Terms :
Western Union, L/C, T/T
Supply Ability :
5000pcs/month
Delivery Time :
3 weeks
Packaging Details :
standard carton. 10pcs/carton
voltage :
24VDC
power :
75W
shape :
square
lifetime :
10 years
color :
black
type :
brushless
Description

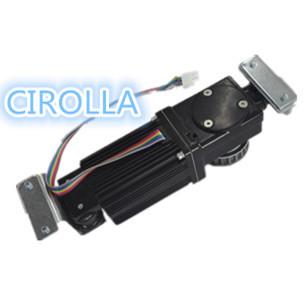

Black and Square High Quality Automatic Sliding Door Motor 75W 24VDC

Description:

This Brushless motor is drive device for automatic sliding doors, with silent operation, has big torque, long service life and high efficiency. It adopts European technology to integrate motor with gear box, which offers strong driving and reliable operation and increased power output, it can adapt to a large doors. Helical gear transmission in the gear box ensures the stable and reliable operation, even used for heavy door, the whole system operates easily.

The control device of sliding automatic door contains basic function and extensional function, automatic operation/hold-open/closed/half-open to meet customer needs. Opening/closing speed setting and adjustment is accurately controlled by microcomputer controller.

Applications:

Square Brushless DC Motor can be used for any kinds of automatic doors: Sliding Door, Swing Door, Curved Door, Folding Door, Hermetical Door, Telescopic Door, Panic Door, Revolving Door, Hospital Door

Which are widely used in Hotel, Hospital, Shopping Mall, Bank, Commercial office building, etc.

Specifications:

Automatic Sliding Door Motor Specs:

Code 4009
Type Brushless
Rated Voltage 24VDC
Rated Power 75W
No-load speed 185rpm
On-Load speed 150rpm
Noise level ≤50dB
Protection class IP54
Weight 2.5kg
Gear Ratio 1:12
Lifetime 3million cycles,10years
Application Automatic door

Automatic sliding door Working orbit:

Black And Square Automatic Sliding Door Motor , Sample Brushless DC Motor

Outline drawings of Automatic Sliding Door Motor:

Black And Square Automatic Sliding Door Motor , Sample Brushless DC Motor

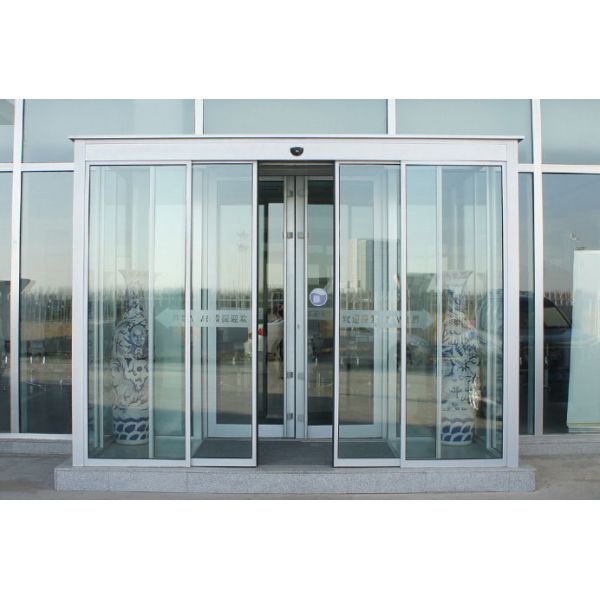

Automatic sliding door Application Examples:Black And Square Automatic Sliding Door Motor , Sample Brushless DC Motor
