KL-13VF 13 Brushes Tunnel Car Wash Machine Soft Touch High Pressure Deep Cleaning System
KL-13VF 13 Brushes Tunnel Car Wash Machine Soft Touch High Pressure Deep Cleaning System
KL-13VF 13 Brushes Tunnel Car Wash Machine Soft Touch High Pressure Deep Cleaning System
KL-13VF 13 Brushes Tunnel Car Wash Machine Soft Touch High Pressure Deep Cleaning System
Specifications
Type :
Car Washer, Car Washer / Automatic Car Washing Machine
Color :
Customer's Request, Blue, Yellow Blue Purple RED, Pictured or custom color, Yellow
Dimensions (length * width * height) :
19.52*4*2.5m
Water wax consumption :
12ml/Car
Washing Speed: :
Continuous 60/ s/vehicle
Total weight of equipment :
2400Kg/18.5CBM
Washing Car Size: :
No limitation*2300*2100MM (L*W*H)
Air pressure :
0.75-0.9Mpa/Airflow rate≥0.1m³/min
Power requirement :
380 V, 50 HZ, 3 phases
Water supply :
DN25mm/Waterflow rate≥80L/min
Material :
Import components, Hot-dip galvanized frame
Payment Terms :
D/P,D/A,L/C,T/T,Western Union,MoneyGram
Product name :
13 Brushes Automatic Tunnel Car Wash Machine
Shampoo consumption :
7ml/Car
LED monitor :
1pc
Usage :
Cars, mini bus, pickup,SUV,MVP
Application :
Car Body Cleaning, Car Washer / Automatic Car Washing Machine, van,commercial vehicle
Function :
Spray Foam, clean by foam and air, Car Washer / Touchless Automatic Car Washing Machine
Brand Name :
Kolon
Model Number :
KL-13VF
Certification :
CE
Place of Origin :
Shanghai,China
MOQ :
1 unit
Price :
USD23800-USD29800
Supply Ability :
1000unit per year
Delivery Time :
20 days
Packaging Details :
plywood case
Description

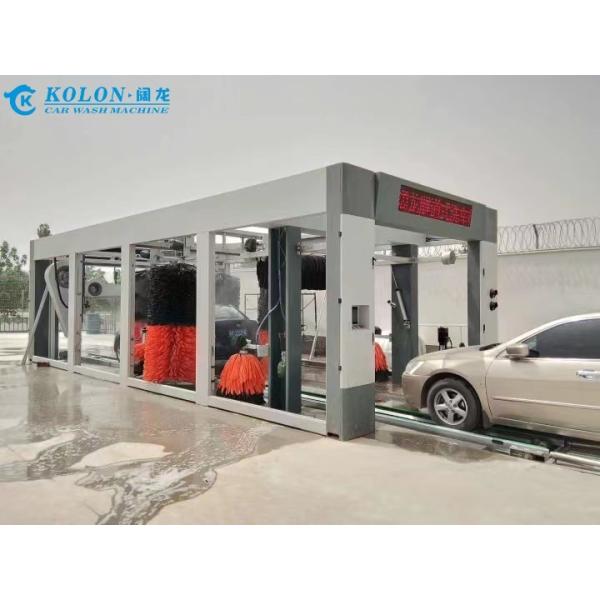

Full Automatic 13 Brushes Tunnel Car Wash Machine - KL-13VF
Automatic Car Washing Machine Description

The KL-13VF car wash equipment features a high-pressure water system and can clean deep stains to meet different customer requirements. This soft touch car wash machine utilizes soft brushes, which can quickly rotate and move in various directions to remove contamination on the surface during operation.

Key Features
  • Welding-free frame made of hot dip galvanized steel for durability and corrosion resistance
  • 13 brushes: 2 top brushes, 6 side brushes, and 5 wheel brushes for complete coverage
  • 4 drying motors for optimal drying effect
  • Combination of automobile detergent and brush washing for effective contaminant removal
  • Hydrophobic wax improves drying effect and surface protection

KL-13VF 13 Brushes Tunnel Car Wash Machine Soft Touch High Pressure Deep Cleaning System

Specification
ParameterValue
ModelKL-13VF
Machine Size19.52 x 4 x 2.5m (L x W x H)
Washing Car SizeUnlimited x 2300 x 2100mm (L x W x H)
Wash ForCars, mini bus, pickup, SUV, MPV
Washing SpeedContinuous 60 sec/vehicle
Water Consumption100L/vehicle or less
Power Consumption0.7 kwh/car
Power Supply380V, 50Hz, 3 Phase
Equipment Moving Speed8.5m/min
Drying Blowers4 blowers (2 x 5.5KW + 2 x 4KW)
Running PowerMax 28KW
Shampoo Consumption7ml/car
Water Wax Consumption12ml/car
Products Description

Automatic foam spraying rollover car wash machine with high-pressure water system. This soft touch car wash machine utilizes soft brushes rotating in various directions to remove contamination effectively.

KL-13VF 13 Brushes Tunnel Car Wash Machine Soft Touch High Pressure Deep Cleaning System

Details

Air-dry power: 12KW (4 x 3KW domestic motors). Waterproof, dustproof, and shakeproof motor and reducer - durable and energy saving.

KL-13VF 13 Brushes Tunnel Car Wash Machine Soft Touch High Pressure Deep Cleaning SystemKL-13VF 13 Brushes Tunnel Car Wash Machine Soft Touch High Pressure Deep Cleaning SystemKL-13VF 13 Brushes Tunnel Car Wash Machine Soft Touch High Pressure Deep Cleaning System

Benefits of Brush Car Washing
  1. Efficient Cleaning: Soft bristles reach into crevices and hard-to-reach areas for thorough results.
  2. Gentle on Paint: High-quality soft bristles minimize the risk of scratching while effectively removing dirt.
  3. Time-Saving: Large brush surface area covers more space with each pass.
  4. Versatility: Suitable for body, windows, wheels, and tires with adjustable handles.
  5. Water Conservation: Optimized water and detergent distribution for eco-friendly operation.
  6. Cost-Effective: Regular cleaning prevents buildup of corrosive substances, reducing detailing costs.
Kolon Success Cases

KL-13VF 13 Brushes Tunnel Car Wash Machine Soft Touch High Pressure Deep Cleaning System

Product Packaging

KL-13VF 13 Brushes Tunnel Car Wash Machine Soft Touch High Pressure Deep Cleaning System

FAQ

Q: Are you a car wash machine trader or manufacturer?

A: We are the car wash machines manufacturer in China. Our brand is Kolonwash. Competitive pricing with spare parts available at any time.

Q: What types of car wash machines can you produce?

A: We produce rollover, tunnel, and touchless car wash machines. Customization available upon request.

Q: Can the color and appearance be customized?

A: Yes, just tell us your color preference and provide an appearance drawing.

Q: What is the delivery time?

A: Lead time is 10-15 days after advanced payment, depending on machine type.

Q: How about the warranty and after-sales service?

A: 3-year warranty (50,000 cycles). During warranty, replacement parts provided free of charge.

CE Certified 3-Year Warranty 13 Brushes System 60 Cars/Hour
