300 bags/min Plastic Film Horizontal Flow Pack Machine For Bread
300 bags/min Plastic Film Horizontal Flow Pack Machine For Bread
300 bags/min Plastic Film Horizontal Flow Pack Machine For Bread
300 bags/min Plastic Film Horizontal Flow Pack Machine For Bread
Specifications
Brand Name :
Haitel
Model Number :
HTL-480A
Certification :
CE SGS ISO
Place of Origin :
China
MOQ :
1 set
Price :
negotiable
Payment Terms :
L/C, T/T
Supply Ability :
10 pcs per month
Delivery Time :
30 days
Packaging Details :
Sea-Worthy Packing or Air-Worthy Packing
Packing speed :
100~300 bags/min
Membrane width :
≤480mm
Voltage :
380V/50Hz
Total power :
4 KW
Motor power :
1.5 KW
Heating power :
2.5 KW
Description

Automatic plastic film cakes china bread wrapping Horizontal Flow Pack Machine

Characteristics

Full computer controlled, frequency conversion controls speeding, high detective photoelectric device, independent sealing temperature control, applicable to many packaging material, mechanical simplicity, easy to maintenance, low wearing, long service life. Feeding paper from bottom, it has push feeder (HTL-480A) and membrane feeder (HTL-480B) types.

Application

It is applicable to special packing for soft and long products like instant noodle, wet tissue, bread, meet, chicken meet, dried noodle, egg roll, soft candy, fresh fruit and towel.

Main technical parameter

Mode HTL-480A/480B
Making-bag size (L)=70~360mm, (W)=30~120mm, (H)=3~50mm
Packing speed 100~300 bags/min
Membrane width ≤480mm
Voltage 380V/50Hz
Total power 4 KW
Motor power 1.5 KW
Heating power 2.5 KW
Dimension (L*W*H) 4800×950×1150 mm
Total weight 1000 kg

HTL-480主要配置Main collocate

①PLC和触摸屏 PLC and touch screen: Taiwan 台湾

②光电开关 Photoelectricity switch: Yatai亚泰

③变频器 Transducer: Yatai 亚泰

④按钮 Push button: Delixi德力西

⑥温控表 Temperature controller: Delixi德力西

⑦接近开关Approach switch: Delixi德力西

⑧伺服电机Servomotor: Taiwan台湾

⑨电机Motor: Zhongweite中微特

HTL-480 spare parts list (FREE)

1. 电热管Electric heating tube 2

2. 电热圈Electric heating circle 1

3. 热电偶Electric thermal couple 1

4. 送料爪 Conveying claw 5

5. 刀片 Cutting knife 2

6. 内六角扳手Internal hexagonal spanner 1

7. 机油枪 Oil gum 1

8. 开口扳手Opening spanner 1

9. 合格证 Certificate of inspection 1

10. 使用手册 Manual 1

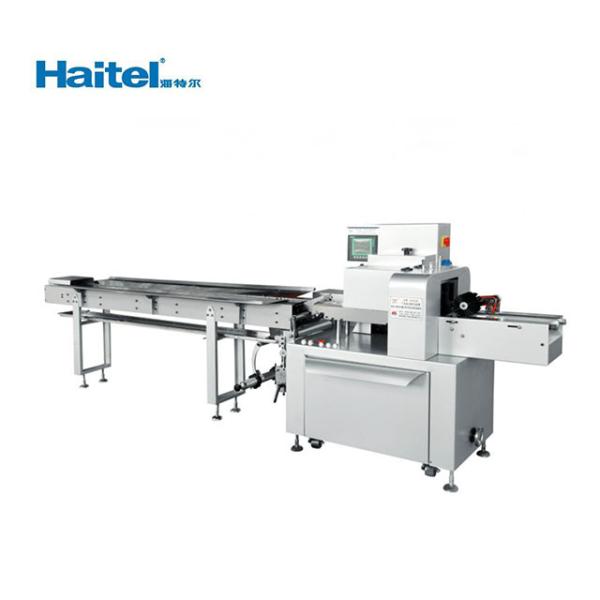

Machine pictures

300 bags/min Plastic Film Horizontal Flow Pack Machine For Bread

300 bags/min Plastic Film Horizontal Flow Pack Machine For Bread
