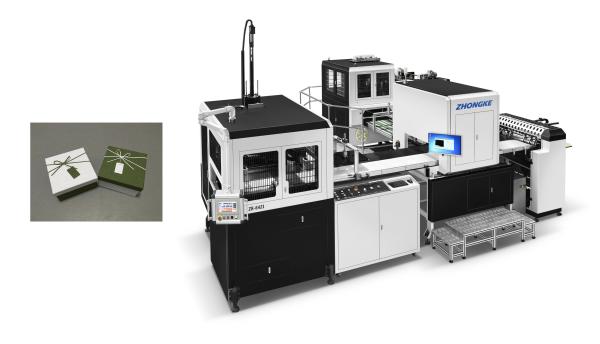

Fully Automatic Carton Box Making Machine / Corrugated Box Punching Machine
Fully Automatic Carton Box Making Machine / Corrugated Box Punching Machine
Specifications
Brand Name :
Zhongke
Model Number :
ZK-660FBS
Certification :
CE, ISO900
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
30% deposit+70%balance before shipment
Supply Ability :
10 sets per month
Delivery Time :
1month after received 30% deposit
Packaging Details :
wooden pallet or wooden case
Name :
Automatic Carton Box Making Machine
Feature :
Fully Automatic
Application :
Corrugated Box
Speed :
High Speed
Ear folding :
15-120mm
Precision Error :
±0.05mm
paper pile height :
260mm
Control :
PLC Control
Description

Fully Automatic Carton Box Making Machine / Corrugated Box Punching Machine

Automatic Carton Box Making Machine Feature

1. International famous brand of electrical component such as PLC touch screen, frequency inverters, etc

2. Adopt human-machine operation system.

3. Automatically displaying device for trouble, speed and finished products counting.

4. Machine running without pressing if no products or incorrect position of products. And stopping automatically if incorrect position of product into carton after return or no cartons or out of leaflets continuous.

5. No products not suction leaflet, no leaflet not suction carton .

6. Automatic detection and rejection device for lacking blister goods and leaflets

7. Protecting automatically for overloading.

8. stable performance , operation is easy.

Automatic Carton Box Making Machine configuration

  1. Applicable for the production of various rigid boxes;
  2. Automatically sucking covering paper and feeding grey board;
  3. Touchscreen HMI system of corner pasting device or board joining & box forming machine (optional)
  4. Completing multiple folding operations through servo driving box mold
  5. Parameterized setting of functions
  6. Troubleshooting function

Automatic Carton Box Making Machine Specifications

Fully Automatic Carton Box Making Machine / Corrugated Box Punching Machine
Turn in depth
R max 100mm
R min 15mm
cover paper requirement
B max 660mm
B min 190mm
A max 560mm
A min 155mm

paper wrap size

g/m2		 100g/m2－350g/m2

Cardboard thickness

mm		 0.8－3mm
pcs/min 15-35

Speed

mm		 15-120
Precision Error ±0.05mm
paper pile height 260mm
Cardboard pile height 1000mm
power supply 38V 50Hz
Electrical power 27KW
Glue tank capacity 45L
Air supply 12L/min
Net weight 8100KG
overall dimension 6800mm×4300mm×3000mm

Note: parts need to be added if the box is 85mm long or if the fold in depth is 100mm.
