4.5 Meters Straight Arm Boom Barrier with IP44 Protection and 5 Million Operating Life for Outdoor Security
4.5 Meters Straight Arm Boom Barrier with IP44 Protection and 5 Million Operating Life for Outdoor Security
4.5 Meters Straight Arm Boom Barrier with IP44 Protection and 5 Million Operating Life for Outdoor Security
4.5 Meters Straight Arm Boom Barrier with IP44 Protection and 5 Million Operating Life for Outdoor Security
4.5 Meters Straight Arm Boom Barrier with IP44 Protection and 5 Million Operating Life for Outdoor Security
4.5 Meters Straight Arm Boom Barrier with IP44 Protection and 5 Million Operating Life for Outdoor Security
4.5 Meters Straight Arm Boom Barrier with IP44 Protection and 5 Million Operating Life for Outdoor Security
4.5 Meters Straight Arm Boom Barrier with IP44 Protection and 5 Million Operating Life for Outdoor Security
4.5 Meters Straight Arm Boom Barrier with IP44 Protection and 5 Million Operating Life for Outdoor Security
4.5 Meters Straight Arm Boom Barrier with IP44 Protection and 5 Million Operating Life for Outdoor Security
4.5 Meters Straight Arm Boom Barrier with IP44 Protection and 5 Million Operating Life for Outdoor Security
4.5 Meters Straight Arm Boom Barrier with IP44 Protection and 5 Million Operating Life for Outdoor Security
Specifications
Model Number :
21B-2
Brand Name :
CBG
Place of Origin :
Guangdong, China
MOQ :
2
Price :
$290-300
Working temperature :
-30-60℃
Power supply :
140W
Boom length :
1.5-6M
Work voltage :
DC-24V
Operating speed :
0.8-6s
Protection grade :
IP44
Operating life :
>5 million
Rated power :
100-120W
Motor speed :
1500r/min
Humidity :
<=90%
Remote distance :
30 m
External power :
220V 50/60HZ
Rated torque :
0.64N.M
Max boom length :
6m
Open/close speed :
0.8s to 6s
Description
Product Description
Overview
Company Profile

Product description
A boom barrier is designed for a range of max opening up to 6m. It is ideal solution for controlling vehicle traffic in parking lots, private entrances, industrial and public uses.
As a manufacturer, we have more than 10 year experiences on designing, producing and installing boom barriers. We have good quality control, so we vigorously test our boom barriers to make sure a longer life span.
Application:

Office Buildings.
Shopping and mall Centers.
Vehicle Parks.
Distribution and Warehouse Facilities.
Commercial and Industrial Facilities.
Government Buildings.
Stations
Features
1) The movement adopts side mounting, which is convenient for installation and compact in structure.
2) The main of the movement is made of aluminum alloy and made by die-casting process. It has reliable mechanical strength, beautiful appearance, accurate size and good heat dissipation.
3) The movement adopts gear reduction transmission, with high transmission efficiency and low power output loss; Gear material scm421, carburizing heat treatment process, precision gear grinding, wear resistance, impact resistance, service life far beyond worm gear transmission structure.
4) The movement adopts DC brushless motor, which has large output torque and small volume. The speed can be adjusted arbitrarily through the controller. When the rod is dropped and lifted in place, the deceleration buffer is realized, so that the brake rod is stable in place.
5) The motor adopts DC24V safety voltage, which avoids electric shock accidents caused by leakage and ensures personal safety.
Parameters
Technical Parameters
Power supply
DC 24V
Open/close speed
0.8s to 6s
Working temperature
-30~60℃
Rated power
100-120w
Motor rated speed
1500r/min
Humidity
<=90%
Remote control distance
30 m
Max boom length
6m
External power
220V 50/60HZ
Rated torque
0.64N.M
Product picture

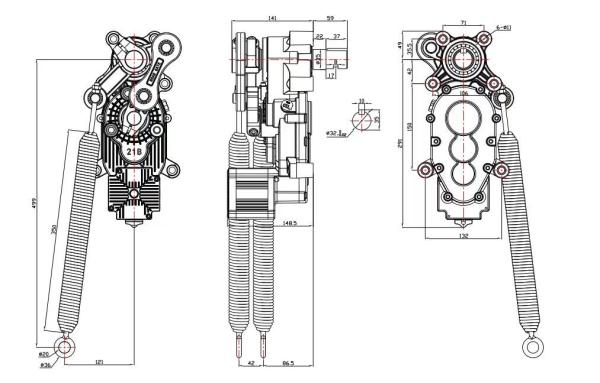

interior structure:
Big torque motor
Collision resistant motor

Toll station motor

MCBF more 5 million times

Fast response
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Boom barrier projects
Exhibition
Certification
