Automatic Film Stretching Machine Top Hooding Vacuum and Mechanical Film Opening​

Descriptions:

1. Cold stretch hood film doesn’t need heat energy. So it is very eco-friendly and keep your products away from fire and explosion;

2. The machine contains the protection feature from the shrink wrap film and the economic of the shrink wrap machine;

3. The machine can be designed according to your requirements;

4. Double heats design makes the machine can choose the optimum film according to the sizes of the pallets automatically;

Our new model stretch hooding system is completely different with normal film wrapping machine. The adoption of our system will help you realize overall complete protection of full pallet products.Stretch hood technology offers significant benefits when compared to other types of pallet wrapping methods- from potential cost savings through reduced film and energy consumptions over material handling convenience to product display opportunities and improved marketability

Features:

A. High strength steel frame adopted and the stability of the structure is high;

B. Four-chain type lifting frame, QCS system;

C. Vertical stretching adopted, which can reduce film consumption and the packing of which is more complete than simply horizontal wrapping; in the same time, it’s of higher dustproof level and waterproofness and the full pallet will be less likely to loosen when it topples;

D. Unmanned operation, which can save more labor cost and improve work efficiency.

Equipment Constituent:

A. Adhesive film delivering and hood-making unit

• There is a pair of splayed cutters and every of the four corners of each cutter can be rotated. The lifetime of each cutter is over one year.
• It can be lowered to ground level for film change and maintenance. Film change takes around 2 minutes, which can save plenty of time.
• Double film opening system of vacuum and mechanical is adopted to avoid the influence of wind and static electricity.

B. Stretching unit

• Hydraulic stretching system adopted, whole-process monitoring;
• Wide range of applicable fields;
• Ensure that the four corners of the stretched film are of the same thickness, but not becoming thinner.

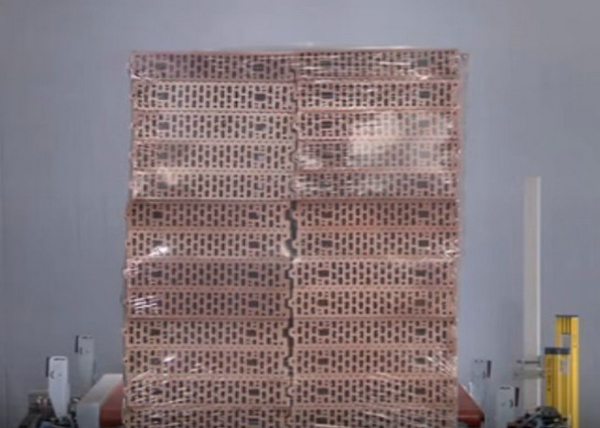

It is applicable to the overall complete wrapping of full pallets in numerous industries including food, grain, fertilizer, chemicals and building material.
