Specifications
Brand Name :
MQSPACK
Model Number :
MP206
Certification :
CE
Place of Origin :
China
MOQ :
Negotiation
Price :
Negotiable
Supply Ability :
100 sets/month
Delivery Time :
20-30 working days
Packaging Details :
wooden case/iron frame
Name :
automatic shrink wrap machine for pallets
Feature :
Turntable
Color :
white and orange
Mode :
manual/auto
Efficiency :
20-40 pallets/hour
Loading weight :
max 2000kg
Machine weight :
700kg
Machine dimension :
L2560*W1500*H2280
Description

Turntable 20 Pallets/H Semi Automatic Stretch Wrapper For Pallets


Introduction of Semi Automatic Stretch Wrapper

Semi Automatic Stretch Wrapper work process is using LLDPE stretch film (a plastic film) to wrap goods which load on the pallet, the stretch film provides extra support while the products being transported or stocked so that they do not tip, spill, or otherwise damage.

It is widely used in chemical industry, electronic industry, building materials, home appliances, paper making, foodstuff & drink etc, especially the container goods transportation in foreign trade.

Feature of Semi Automatic Stretch Wrapper :

1. Heavy load capacity

2. Variable turntable speed and film carriage up down speed

3. Manual/auto exchange

4. PLC control,wrapping cycle can setting,more economic

5. Pre stretch film carriage,save more stretch film

6. Soft start,soft stop

Specification of Semi Automatic Stretch Wrapper

Turntable Diameter 1.5m,1.65m,1.8m and 2m optional
Wrapping height 2.1m,2.4m,2.65m and 2.8m optional
Wrapping weight max 2000kg
Pre-stretch ratio 200%
Turntable height 78mm
Turntable speed 0-15rpm,speed variable,turntable soft start & soft stop
Carriage speed 0-3m/min
Packing speed 20-40 pallets/h
Power 1ph/AC 220V/50HZ/20A,1.35kw
Control PLC

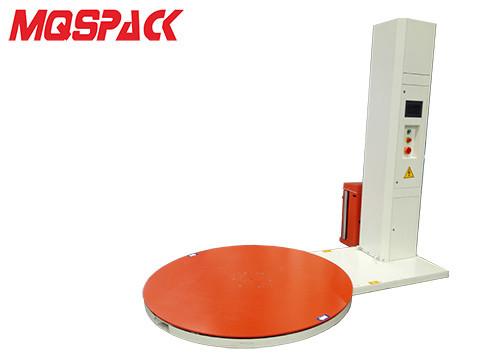

Semi Automatic Stretch Wrapper Picture

Turntable 20 Pallets/H Semi Automatic Stretch Wrapper For Pallets

Service

1. Pre-sale service:

1) We provide presales service in various forms, making investment budge, manufacturing, planning, so that customers can make a reasonable plan with less cost.
2) We will first check customer's good and goods size, then we will recommend suitable wrapping machine to 100% suitable.
3) We will recommand and offer machine according to customer's use and purchase budge.

2. In-sale service:

1) We will supply each manufacturing step photo for customer checking on time.
2) We will prepare packing and shipment according to customer's needing inadvance.
3) Testing the machine and making video for customer's checking.

3. After-sale service:

1) We will guarantee the machine quality for one year.
2) We provide free training and answer customer's question on technology in time.
