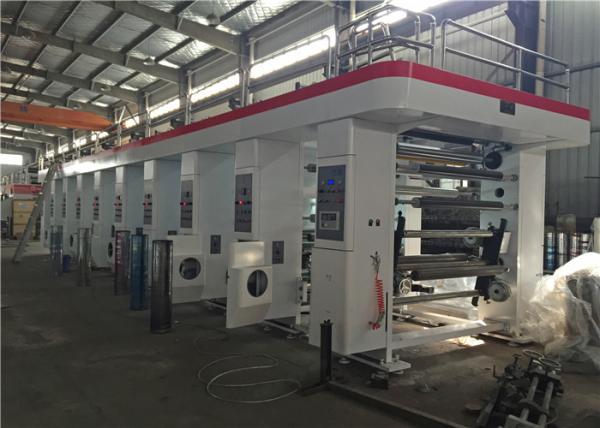

Plastic Packing Bag Rotogravure Printing Machine ±0.5kgf Tension Control Precision
Plastic Packing Bag Rotogravure Printing Machine ±0.5kgf Tension Control Precision
Plastic Packing Bag Rotogravure Printing Machine ±0.5kgf Tension Control Precision
Plastic Packing Bag Rotogravure Printing Machine ±0.5kgf Tension Control Precision
Specifications
Brand Name :
Allfine
Model Number :
LC-ASY H
Certification :
CE
Place of Origin :
Wenzhou city Pinyang
MOQ :
1
Price :
negotiation
Payment Terms :
L/C,T/T, Western Union, MoneyGram
Supply Ability :
5 sets/60 working days
Delivery Time :
60 working days
Packaging Details :
film package
colors :
10
Printing speed :
150m/min （Variable because of different ink, film, familiarity of operator）
Max. Width of printing :
1000mm
Name :
plastic packing bag roto gravure color printing machine High speed film and tipping paper new cigaratte packaging
Tension control precision :
±0.5kgf
Core, I.D. of raw material :
Φ76mm
Description

Allfine Group-20 years experience Solution

1:Label production line- flexo print machine,die cutting machine,slitting machine,inspection and rewinding machine
2:Flexible package line-water bottle label PVC,heat transfer Pet, Opp, Pe etc rotogravure printer, dry laminator, PP PE film blowing machine,bag making machine
3:Decal paper,wine and smoking package-Silk screen press machinery, wicket dryer, uv dryer
4:Paper cup production line- flexo printer. die cutting machine, paper cup making machine

1: Save material 2: Improve efficiency 3:Professional tranning 4: Factory built

Partner Manager-Jack Huang
Allfine Group

plastic packing bag roto gravure color printing machine High speed film and tipping paper new cigaratte packaging

rotogravure printing production line.pdf

Color quantity 10
Max. Width of printing 1000mm
Mechanical speed 180m/min
Printing speed 150m/min (Variable because of different ink, film, familiarity of operator)
Length of printing cylinder 480~1000mm
Dia. of printing cylinder Φ120mm~Φ320mm
Color control precision ±0.12mm (Variable because of different ink, film, familiarity of operator)
Max. unwind/rewind Dia.: Φ600mm
Tension range 3~50kgf
Tension control precision ±0.5kgf
Core, I.D. of raw material Φ76mm
Pneumatic source 0.6Mpa
Impression roller pressure 370kgf
Doctor blade transverse move range ±5mm
Drying mode Electrical heating
Heating power 18×10=180Kw
Mail motor 15Kw
Power consumption 231kW
Machine size 16500×3550×2850(mm)
Machine weight 26000kg
Automatic speed up/down to the target speed gradually
Max. speed limit can be set for different material or cylinder size
Idle or running status can be exchanged

Structure

  • High strength and low stress casting iron;
  • Module style design;
  • Casting iron for beam;

Feature

  1. Tress eliminated for stableness;
  2. Imported machining center;
  3. Reasonable layout of the rollers for smooth web flow;
  • Feature: (Up and down)vertical color control system
  • Model: made in China KESAI 2000FV
  • Precision: ±0.1mm
  • Printing speed: 5-300m/min
  • Comprehensive printing precision: ±0.1mm
  • Vertical colored system (8passages) 1 set
  • Electric eye: 10Piece
  • Colored motor: 10 Piece

video link of LC-E model rotogravure printing machine (Aluminum foil, paper, plastic film)
https://youtu.be/NPGk7K2FOhQ

video link about LC-E model rotogravure printing machine (Export to Pakistan, print aluminum foil, BOPP, PE, PVC, PET,Paper)
https://youtu.be/lZ8PziP51Xk
