5-10kg Flour Packaging Machine for Avocado Fertilizer Powder Driven Type Electric
5-10kg Flour Packaging Machine for Avocado Fertilizer Powder Driven Type Electric
5-10kg Flour Packaging Machine for Avocado Fertilizer Powder Driven Type Electric
5-10kg Flour Packaging Machine for Avocado Fertilizer Powder Driven Type Electric
5-10kg Flour Packaging Machine for Avocado Fertilizer Powder Driven Type Electric
5-10kg Flour Packaging Machine for Avocado Fertilizer Powder Driven Type Electric
5-10kg Flour Packaging Machine for Avocado Fertilizer Powder Driven Type Electric
5-10kg Flour Packaging Machine for Avocado Fertilizer Powder Driven Type Electric
5-10kg Flour Packaging Machine for Avocado Fertilizer Powder Driven Type Electric
5-10kg Flour Packaging Machine for Avocado Fertilizer Powder Driven Type Electric
5-10kg Flour Packaging Machine for Avocado Fertilizer Powder Driven Type Electric
5-10kg Flour Packaging Machine for Avocado Fertilizer Powder Driven Type Electric
Specifications
Weight (KG) :
360
Function :
FILLING, Sealing
Application :
Machinery & Hardware
Packaging Type :
Bags
Packaging Material :
Plastic, Paper
Automatic Grade :
Automatic
Driven Type :
Electric
Voltage :
220V
Place of Origin :
China
Brand Name :
M&J
Dimension(L*W*H) :
1100 *755 *1540mm
Warranty :
1 Year
Key Selling Points :
Easy to Operate
Machinery Test Report :
Provided
Video outgoing-inspection :
Provided
Core Components :
PLC
Product name :
powder packing machine
Main Function :
packing machine
Packing speed :
200-250bags/h
Condition :
New
Price :
$5,000.00/sets >=1 sets
MOQ :
1 set
Description
When the powder packaging machine enters the automatic operation state, the weighing control system opens the feeding door to start feeding. The feeding device is a fast and slow feeding mode. When the material weight reaches the set value of fast feeding, the fast feeding is stopped and the slow feeding is maintained. When the material weight reaches the set value, the feeding door is closed to complete the dynamic weighing process. At this time, the system detects whether the bag clamping device is in When the bag has been clamped, the system will send a control signal to open the unloading door of the weighing bucket, and the material will enter the bag. After the material is put out, the unloading door of the weighing bucket will be closed automatically; after the material is unloaded, the bag clamping device will be released and the bag will fall down automatically; after the bag is dropped, the bag will be sewn and transported to the next station. In this way, it operates automatically.
5-10kg Flour Packaging Machine for Avocado Fertilizer Powder Driven Type Electric
PRODUCTS DESCRIPTION
Model
LCS-LX
LCS-LX-Y
LCS-LX-Y2
Weighing Range
1-5, 5-10, 10-25, 25-50 Kg/bag, customized needs
Precisions
±0.2%FS
Packing Capacity
150-200bag/hour
250-300bag/hour
480-600bag/hour
Power supply
220V/380V, 50HZ, 1P/3P ( Customized)
Power (KW)
3.2
4
6.6
Dimension (LxWxH)mm
3000x1050x2800
3000x1050x3400
4000x2200x4570
The size can be customized according to your site.
Weight
700kg
800kg
1000kg
Structure: The unit consists of the ration automatic packing machine and the selecting and matching parts: conveyer and the hemming machine. It uses spiral to feed the material, and the feed gearing is suitable for a comparatively worse fluidity of powdery material. The material is discharged forcefully by the feed gearing. The main component parts are: feeder, weighing box, clamping box, the computer control, pneumatic actuator. Main Using: It is suitable for rationing package of the powdery material in the feed, food, grain, chemical industry or particulate material. (For example the grainy material in the mixture, premix material and concentrated material, starch, chemical powder material etc.) Features: * Automatic and Manual mode. * Designed to suit open mouth bags. * Multiple product types can be bagged. * Easy to clean, easy to maintain. * System can accommodate different bag sizes using bolt-on fittings. * Easy integration with a conveyor. * Can be designed as a free-standing (as shown at left) or bolt on to existing supply bin arrangement. * Up to 100 different product target weights can be stored and recalled using the digital indicator. * Product in-flight is taken into account. * Units are built to Customer's requirements, including bin sizes, bin finishes (painted or stainless steel), mounting frame, discharge arrangement, etc.
5-10kg Flour Packaging Machine for Avocado Fertilizer Powder Driven Type Electric
5-10kg Flour Packaging Machine for Avocado Fertilizer Powder Driven Type Electric
5-10kg Flour Packaging Machine for Avocado Fertilizer Powder Driven Type Electric

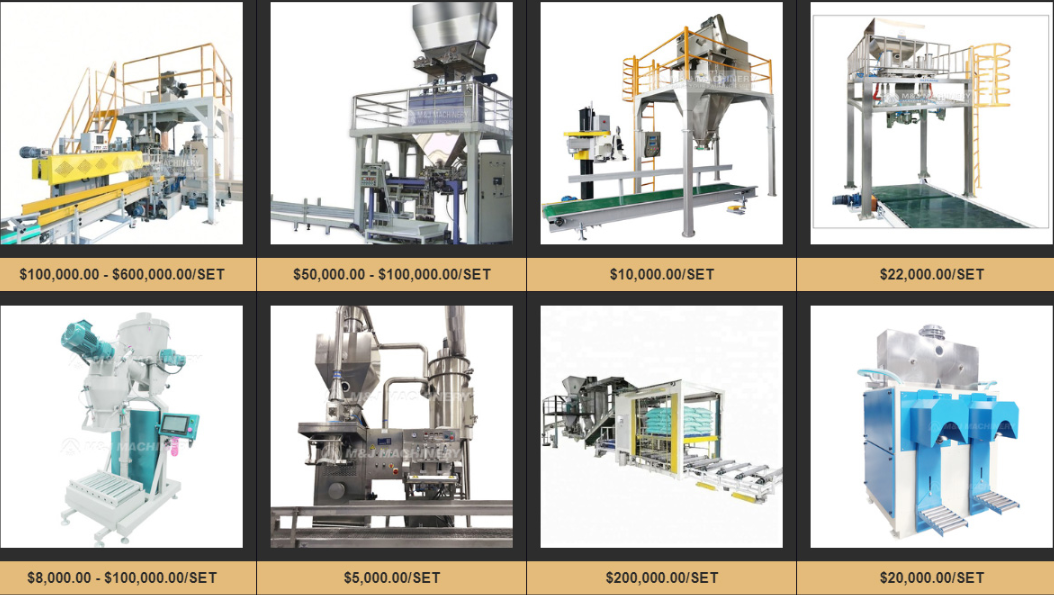

RELATED PRODUSTS
