Pillow Seal Peanut Packaging Machine , 220V 3kw Nuts Packing Machine
Pillow Seal Peanut Packaging Machine , 220V 3kw Nuts Packing Machine
Pillow Seal Peanut Packaging Machine , 220V 3kw Nuts Packing Machine
Pillow Seal Peanut Packaging Machine , 220V 3kw Nuts Packing Machine
Pillow Seal Peanut Packaging Machine , 220V 3kw Nuts Packing Machine
Pillow Seal Peanut Packaging Machine , 220V 3kw Nuts Packing Machine
Specifications
Place of Origin :
Shanghai, China (Mainland)
Brand Name :
YB
Certification :
CE
Price :
US $27,600-29,500 / Sets | 1 Set/Sets Multihead Weigher Granule Packaging Machine
MOQ :
1 Set/Sets M
Model Number :
720Z
Packaging Details :
standard wooden box
Condition :
New
Application :
Chemical, Commodity, Food, Medical
Packaging Type :
Bags, Case, Pouch, Multihead Weigher Granule Packaging Machines
Packaging Material :
Wood
Automatic Grade :
Automatic
Driven Type :
Electric
Voltage :
220v
Power :
3KW
Weight :
700kg
Dimension(L*W*H) :
(L)1800*(W)1250*(H)1780mm
After-sales Service Provided :
Engineers available to service machinery overseas
machine type :
Multihead Weigher Granule Packaging Machines
film width :
Max.720mm
packing volume :
Max.5000ml
seal type :
Pillow seal, Gusset bag, Block bottom bag
optional device :
weighter/load lift/conveyor/platform/date printer
controller :
PLC from TAIWAN
weighting head :
10/14 heads
packing speed :
5-55 bags/min
making bag size :
L: 80-450mm, W: 200-350mm
warranty :
1 year
Description

Multihead Weigher Granule Packaging Machines YB-720Z 5kgs coffee bags flat bottom quad seal packing machine

Usage

This machine is mainly used for packing granule products: such as sugar, salt, coffee beans, rice, beans, peanuts, sunflower seeds, grains, cereals, nuts, chocolate beans, potato chips, frozen dumplings, cereal, tea, washing powder, desiccants.

Main features

1. Multi-head weighter measuring.

2. PLC servo and pneumatic control system and super touch screen to form the drive control center.

3. High precision high reliability and high intellectualized degree.

4. Equipped with fault display system and safety protection.

5. Can make hole punching device after customer’s request.

6. This machine has stainless steel type and carbon steel type for your choice.

Technology Parameter

YB-720Z spun sugar/snack food small packet packaging machine with weigher

Model

YB-720Z

Packing speed

5-55 bags/min

Packing volume

5000ml

Making bag size

L: 80-450mm, W: 200-350mm

Film width

Max.720mm

Thickness of film roll

0.04-0.09mm

Pulling film type

Double belt pull film

Air consumption

0.8Mpa, 0.4m³/min

Seal type

Pillow seal, Gusset bag, Block bottom bag

Power supply

AC220V, 50/60Hz, 3KW

Machine weight

700KG

Machine dimension

L1800×W1250×H1780m

YB-720Z spun sugar/snack food small packet packaging machine with weigher

Detailed Images

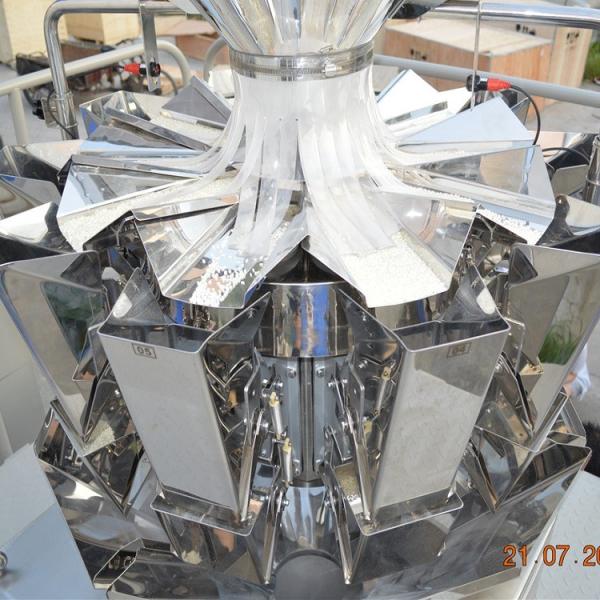

fourteen heads of weigher

Pillow Seal Peanut Packaging Machine , 220V 3kw Nuts Packing Machine

Pillow Seal Peanut Packaging Machine , 220V 3kw Nuts Packing Machine

Pillow Seal Peanut Packaging Machine , 220V 3kw Nuts Packing Machine
