Plastic Film Packaging Sauce Packing Machine Photoelectric Tracking Available
Plastic Film Packaging Sauce Packing Machine Photoelectric Tracking Available
Plastic Film Packaging Sauce Packing Machine Photoelectric Tracking Available
Plastic Film Packaging Sauce Packing Machine Photoelectric Tracking Available
Specifications
Place of Origin :
Shanghai, China (Mainland)
Brand Name :
YB
Model Number :
YB-150J
Certification :
CE
Price :
US $3,900-4,300 / Sets | 1 Set/Sets small bag liquid packing machine (Min. Order)
MOQ :
1 Set/Sets
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
20 sets per month
Delivery Time :
20 working days
Packaging Details :
wooden box
Machine name :
Ketchup Paste Packing Machine
Application :
Food
Packaging Type :
plastic film
Packaging Material :
Wood
Automatic Grade :
Automatic
packing rate :
30-80 bags/min
Packing range :
5-200ml
making bag size :
L50-150 W15-130mm
Description

Ice Cream Machinery , Ice Cream Packing Machine

Usage

This machine is mainly used for ketchup/tomato paste, chilli sauce, shampoo, lotion, hotpot condiment, salad, cream, cooking oil, honey, yogurt, fruit juice, wine, vinegar, hari conditionaer, facial cream, medical and chemical liquid/paste quantitative packaging.

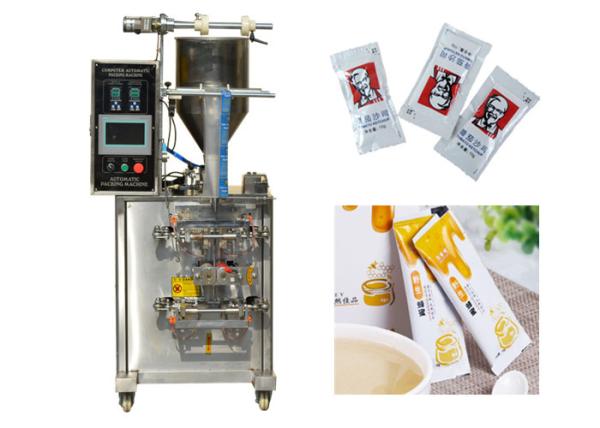

Machine Description

  • This machine can automatically complete piston pump measuring-coding(optional)-bag making-filling-sealing-counting.
  • Computer/PLC control system(machine can be change to PLC touch screen version to display vaious language or add other function ), photoelectric tracking, maximizes the whole machine's control precision. reliability and the intellectualized degree.
  • Has fault display system, easy to operate and maintain.
  • Machine body and all food touching part are made by stainless steel
  • Suitable packing material:PET/AL Plating/PE, PET/PP, BOPP Film, FOIL, Nylon compound film and other materials can be heat sealed.
  • this machine can be installed to a color ribbon printer to Print automatically the 1-3 lines code.

Techinical Parameter

Model YB-150J
Filling method piston pump
Packing speed 30-80 bags/min
Packing range 5-200ml
Film width ≤ 280mm
Making bag size

L: 50-150mm,

W: 15-130mm
Packing accuracy ≤ ±1%/depends on product)
Power 1.6 KW
Power supply AC220V, 50/60Hz
Seal type 3/4 sides seal, pillow seal
Net weight 250kg
Machine dimension

L800 × W680 × H1800mm

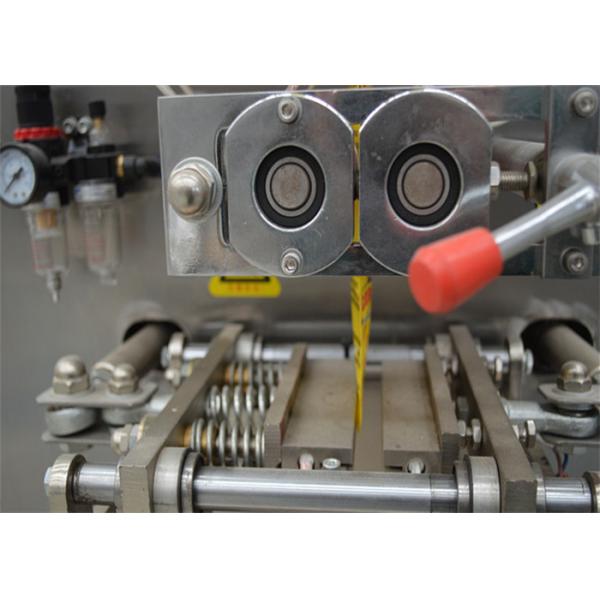

Machine Details
