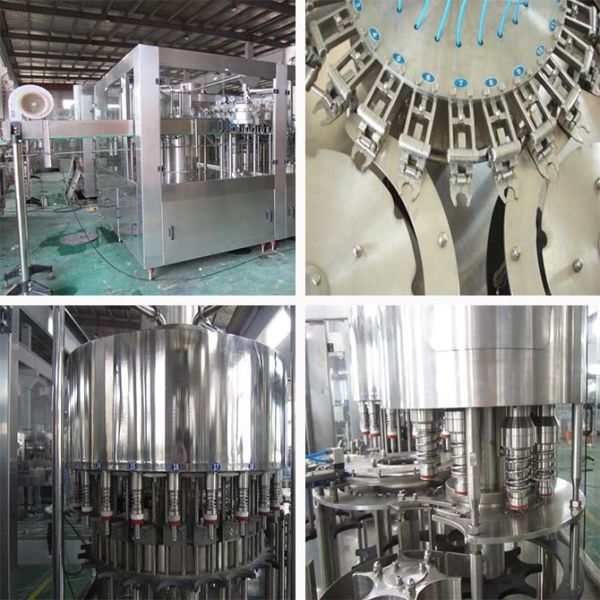

Water Bottle Filling/Packing Machine for Pet Bottle 20000BPH Capacity

Description

1. Filling machine design and manufacture of Italian technology, to ensure product quality, reduce wear and tear provides hardware protection.

2. All rotating discs are made of stainless steel AISI304.

3. The filling valve is designed and manufactured by German technology with high filling precision and fast speed, and is made of AISI316L. Return pipe and shunt for stainless steel integrated structure.

4. The bottle is raised and lowered by the cylinder of the carrier bottle under the action of a cam, and the valve opening mechanism is driven by the air cylinder. The use of proximity switches, through the detection of the filling valve position, to achieve no bottle filling function.

5. All lifting body sliding sleeve are made of German igus corrosion-free maintenance-free bearings.

6. Filling machine power transmission system through the rack through the gear transmission.

Application

The Automatic Natural Water Bottling Plant / Mineral Water Filling Line is mainly used for washing, filling sealing Non-Aerated carbon dioxide drink such as mineral water, pure water, non-gas wine drink and so on, The machine design is shorten the time for the drink material contact with outside, Incrensed the sanitation condition and throughout and economy. It adopts hanging type conveying-bottle structure to make changing bottle model more convenient, faster and more east. The main machine asopts advanced PLC control technology. The key electric elements adopt international famous products.

Control System
1. Electric control cabinet made of stainless steel SUS304, PLC automatically complete three-in-one filling 2. machine from the bottle to the bottle of the whole process of control.
3. Using touch screen operation, production speed, class production count, fault category, fault occurred 4. points are displayed on the screen. And can automatically statistics failure time, type of fault and other information.
5. The main electrical components are used in the world famous brand products to ensure the excellent performance of the whole machine.
6. Inverter for Japan MITSUBISHI,
7. PLC for Japan MITSUBISHI,
8. Touch screen for the Taiwan Weilun.
9. All components of the air system are used ADAC products.

Feature

1. Man-machine interface control, easy to operate

2. Automatic billet, the billet, take the bottle, row bottles

3. Mold change quickly

4. High degree of automation to reduce bottle contamination

5. Equipment performance is stable and reliable

6.​ Easy to maintain

Technical Parameters

Competitive Advantage

1. Best price & best quality

2. Customized according to customer needs

3. Delievery in time

4. Life-time good service
