Aquatic Feed Big Bag Weighing Packing Machine For 25Kg PP Woven
Aquatic Feed Big Bag Weighing Packing Machine For 25Kg PP Woven
Aquatic Feed Big Bag Weighing Packing Machine For 25Kg PP Woven
Aquatic Feed Big Bag Weighing Packing Machine For 25Kg PP Woven
Specifications
Brand Name :
Sanhe
Model Number :
OAPL
Certification :
ISO9001:2015. CE
Place of Origin :
Suzhou
MOQ :
1 Set
Price :
Negotiation
Payment Terms :
T/T,
Supply Ability :
3 Set Per Month
Delivery Time :
50-150 Days
Packaging Details :
wooden pallet / wooden case
Name :
weighing packing palletizing line
Brand :
Sanhe
Packing speed :
600 bags per hour
Target weight per bag/bottle :
+-0.2% of full scale
Port :
Shanghai
Description

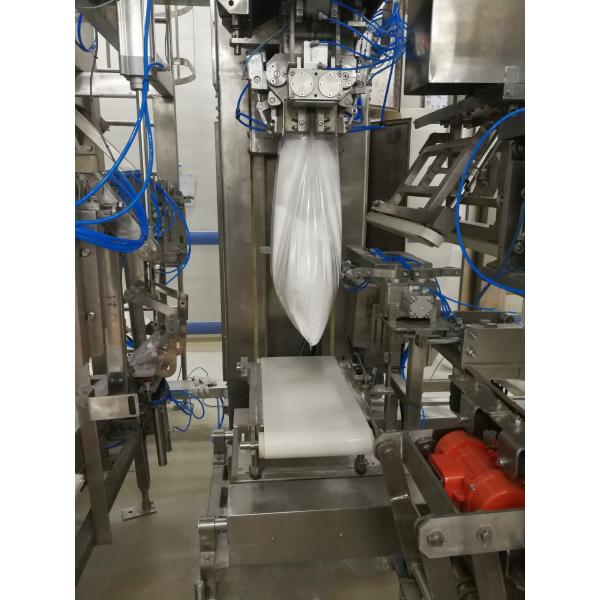

Aquatic Feed Big Bag Weighing Packing Machine For 25Kg PP Woven Bag

Description:

Sanhe OAPL auto powder bag-feeding packing machine (hereinafter to be referred as Sanhe OAPL) is developed specifically for powder products which made in agro and food industry. This machine can realize automatic bag-feeding, products filling, bag air suck ,bag belt conveyor and outside bag sewing, etc.

Including:

This unit consists of one set elevator, one set automatic weighing machine, one set bag-feeding packing machine, one set automatic sewing machine and one set conveyor.

Control system: PLC and touch screen

Function:

product lifting, measuring, filling, bag-opening, sealing and output.

Scope of application:

Chemical industry, feed,grain etc. fields ,large bag packaging for powder material.

Function Feature:

1. Automatic weighing,automatic bag giving,automatic sewing ,do without manual operation.

2. Touch screen controling,human-computer interface is well.

Products to be packed:

1) Powder name: powder
2) Bulk Density: 0.24 -0.40 kg/cubic meter
3) packing size: 25-50kg per bag
4) powder size: <110 micrometer
5) characteristic: powder very fine and dusty and fluffy.
6) Bag Size: woven bag - 23" x 37" inch


Specification Requirement:


1. Automatic empty bag supply

2. Automatic weighing /filling

3. The bag clamping system will be down step by step when powder filling, to decrease the dust happing.

4. Automatic bag sealing device for PE /laminated bag;

Technical Parameters:

Packaging bag premade PE/Laminated bag
Packing size (500~1000mm)×(300~600mm)[length×width]
Packing capacity 25-50kg
Packing speed 2~4bag/min
Air source/compressed air 0.5~0.7Mpa
Power 5.0KW 380V±10%, 50HZ
Appearance size 5860×2500×4140mm(L×W×H)
material non-sticky chemical powdery material

Aquatic Feed Big Bag Weighing Packing Machine For 25Kg PP Woven

Aquatic Feed Big Bag Weighing Packing Machine For 25Kg PP Woven

Aquatic Feed Big Bag Weighing Packing Machine For 25Kg PP Woven
