5-2000L Cosmetic Vacuum Homogenizing Emulsifying Mixer 7.5 kW 220V 380V
5-2000L Cosmetic Vacuum Homogenizing Emulsifying Mixer 7.5 kW 220V 380V
5-2000L Cosmetic Vacuum Homogenizing Emulsifying Mixer 7.5 kW 220V 380V
5-2000L Cosmetic Vacuum Homogenizing Emulsifying Mixer 7.5 kW 220V 380V
5-2000L Cosmetic Vacuum Homogenizing Emulsifying Mixer 7.5 kW 220V 380V
5-2000L Cosmetic Vacuum Homogenizing Emulsifying Mixer 7.5 kW 220V 380V
Specifications
Brand Name :
Weidong
Certification :
ISO9001
Place of Origin :
guangdong
MOQ :
1 set
Price :
USD 9800-10000/Set
Payment Terms :
T/T
Supply Ability :
10 Set/Sets per Month
Delivery Time :
5-7 Days
Packaging Details :
Wooden Case
Model Number :
WD-E
Mixer Type :
Homogenizer
Dimension(L*W*H) :
500*500*5~3000*3800*12
Barrel Volume (L） :
300
Range of Spindle Speed(r.p.m) :
1 - 63 r.p.m
Material :
SUS304, SUS304L, SUS316
Voltage :
220V/380V
Power (kW) :
7.5 kW
Core Components :
Motor, Gear, Pressure vessel, Gearbox, Pump, PLC, Bearing, Engine
Application :
Liquid, Medicine Processing, Chemicals Processing, Plastics P
Description

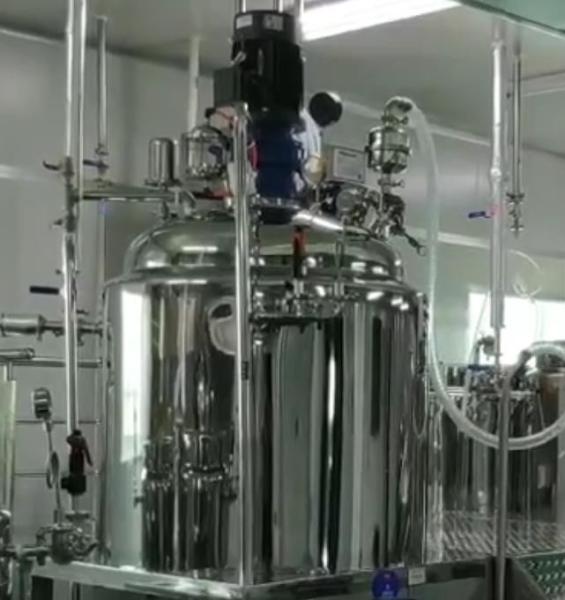

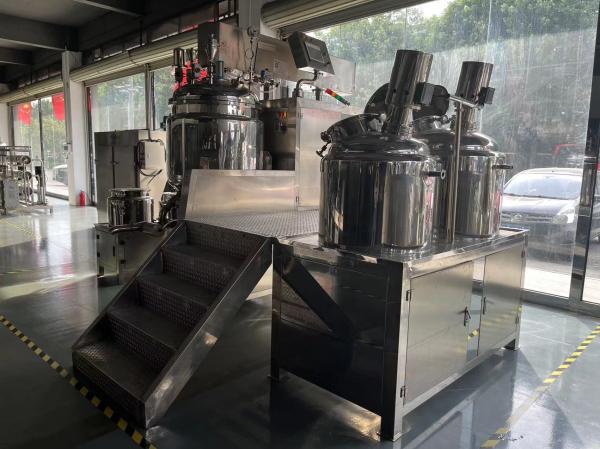

5-2000L Cosmetic Vacuum Homogenizing Emulsifying Mixer

Product Description:

This machine is used for cosmetic cream and lotions,The vacuum emulsifier is professionally designed according to the ointment manufacturing process of cosmetics and ointments etc. products through introducing advanced technology from abroad. The machine unit is composed of pre-treating boiler, vacuum emulsifying and blending boiler, vacuum pump,hydraulic system, dumping system, electric control system and work platform etc. The machine unit is featured by simple operation, stable performance, good homogenizing performance, high production efficiency, convenient cleaning, reasonable structure, small land area and high automatic degree etc.

Model Effective capacity Emulsify Agitator
KW R/min KW R/min
WD-20 20 0.75 0-3000 0.37 0-40
WD-50 50 2.2 0-3000 0.37 0-40
WD-100 100 3 0-3000 1.5 0-40
WD-150 150 3 0-3000 1.5 0-40
WD-200 200 4 0-3000 1.5 0-40
WD-350 350 4 0-3000 2.2 0-40
WD-500 500 5.5 0-3000 2.2

0-40

Feature:

1.high sanitary standard manufacturing

2.internal surface mirror polished

3.agitation group consisting of two slow agitators and one fast agitator

4.double speed slow agitators(stepless speed variation as optional)

5.double speed fast agitators(stepless speed variation as optional)

6.mechanical seal of agitation groups

7.lifting cover system

8.tilting vessel

9.body and agitators made of SS AISI 316L

10.internal pressurization for discharge and inertization

11.SS AISI 304jacket

12.cover for thermal insulation made of SS tank in tank13.vacuum group

14.heating station

15.sterilizing filter installed on the vacuum-breaking device

16.cleaning balls

17.embedded CIP group

18.product temperature check by means of Pt 100 probe,special sheath ,close to the side

19.buttons or PLC controlled process functions

20.electronic weighing system.

5-2000L Cosmetic Vacuum Homogenizing Emulsifying Mixer 7.5 kW 220V 380V5-2000L Cosmetic Vacuum Homogenizing Emulsifying Mixer 7.5 kW 220V 380V

5-2000L Cosmetic Vacuum Homogenizing Emulsifying Mixer 7.5 kW 220V 380V5-2000L Cosmetic Vacuum Homogenizing Emulsifying Mixer 7.5 kW 220V 380V
