Aluminum Cover 5 Pins 24V 40A Automotive SPDT Relay For Truck bUS
Aluminum Cover 5 Pins 24V 40A Automotive SPDT Relay For Truck bUS
Aluminum Cover 5 Pins 24V 40A Automotive SPDT Relay For Truck bUS
Aluminum Cover 5 Pins 24V 40A Automotive SPDT Relay For Truck bUS
Aluminum Cover 5 Pins 24V 40A Automotive SPDT Relay For Truck bUS
Aluminum Cover 5 Pins 24V 40A Automotive SPDT Relay For Truck bUS
Specifications
Brand Name :
MIROTE
Model Number :
HY659-8
Place of Origin :
CHINA
MOQ :
100
Price :
usd0.4-0.6 /pc
Payment Terms :
L/C, T/T, D/P, Western Union
Supply Ability :
200000pcs/week
Delivery Time :
15-30days
Packaging Details :
10pcs/box 500pcs/ctn
Cover :
aluminum cover
Wire :
copper
Pins :
5 copper
Contact :
Copper
Braided :
with braided wire
Waterproof :
yes
Description

Aluminum Cover 5 Pins 24V 40A Automotive SPDT Relay For Truck BUS

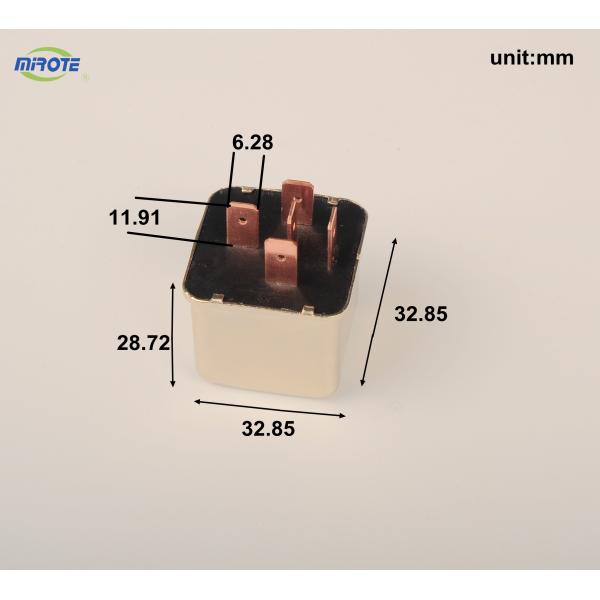

1. Product Detail

Aluminum Cover 5 Pins 24V 40A Automotive SPDT Relay For Truck bUS

2. Relay circult

Aluminum Cover 5 Pins 24V 40A Automotive SPDT Relay For Truck bUS

3. Usage

Starter kills, domelight supervision, trunk release, polarity change,power door lock/actuator control, change a low current output to high current,add ignition/accessory outputs, control motors/other electronics, It is Also suitable for automobile used for control, alarms, horn, headlight and more....

4. Parameter

Nominal Volage(UN) 24V Nominal Current 30A/28V
Operating Volage(Uop) 22-28V Max.Cont.Current 40A
Contact Resistance ≤30mΩ Max.Switching Current ON 60A
Pull ln Volage ≤24,8V Max.Switching Current OFF 40A
Pull-Off Volage 6≤V≤10 lnsulati0n Resistance 100 MΩ min
Coil Power Consump. 1,6W Dielectnic Strength Between Contacts 50Hz 500V
Coil Resistance(Ω±%10) 90Ω
Operatin Life (Electrical) 105 Terminals Strength 100N
Mechanical Characteristics
Contact Material AgSnO2 Terminals CuZn 9.5×0.8mm CuZn 6.3×0.8mm
Contact Operate Time ≤7ms
Contact Release Time ≤5ms Fixed Contact AgSnO2
Operation Temperature ﹣30..+85°C Moving Contact AgSnO2
Relative Humidity %85(at40°C) Coil Oxygen Free Copper
Shock Resistance 147m/s2 11ms Base Plate Nylon PA6,6
Operation Life (Mechanical) 107 Cap Aluminum
Mass 48g

5. Related Products

Aluminum Cover 5 Pins 24V 40A Automotive SPDT Relay For Truck bUS

6. Package

Nowadays, package is important, we have various packing methods for your selection.

Aluminum Cover 5 Pins 24V 40A Automotive SPDT Relay For Truck bUS

You can also customize your package, as long as the quantity is considerable.
