Specifications
Brand Name :
JIGUO
Model Number :
ZWC-1100D Paper Roll Sheet Cutter Machine
Certification :
CE, ISO9001
Place of Origin :
China
MOQ :
1set
Price :
USD20000-22000/set
Payment Terms :
L/C,T/T
Supply Ability :
45 sets per month
Delivery Time :
30days
Packaging Details :
Standard export packaging
Name :
Paper Roll Cutting Machine
Max. loading jumbo roll width :
1100mm
Max. loading jumbo roll diameter :
Φ1400mm
Cutting length (mm) :
20-1000mm
Cutting speed (cuts/min) :
30-150cuts/min
Cutting thickness :
30-400gsm
Weight(kg) :
3600Kg
Overall Dimension(mm) :
4800*2050*1550mm
Core Components :
Motor, PLC
Type :
Paper Cutting Machine
Description
ZWC-1100D Automatic Roll Sheet Cutter Machine
Enhance the efficiency of your packaging production line with the ZWC-1100D fully automatic roll paper slitting machine - a heavy-duty, high-precision solution designed specifically for the packaging and printing industries. Engineered for roll paper slitting operations, this machine offers unparalleled precision and speed, making it the ideal choice for businesses seeking both large-scale production and flexible small-batch customization.
ZWC-1100D Roll Sheet Cutter Machine Heavy-Duty Automatic Cutter For Wripping Paper Packing Bags And Non-woven Towel
Applications
This machine is suitable for high-speed, high-precision transverse cutting of large rolls of various materials (including paper, self-adhesive labels, thick plastic films, and laminated materials) into sheets of any desired size. It is an ideal choice for the paper, plastics, printing, and food packaging industries.
ZWC-1100D Roll Sheet Cutter Machine Heavy-Duty Automatic Cutter For Wripping Paper Packing Bags And Non-woven Towel
Suitable Materials
Various types of paper are available, with basis weights ranging from 30 to 400 grams, including kraft paper, art paper, silicone-coated paper, coated paper, newsprint, and similar materials.
ZWC-1100D Roll Sheet Cutter Machine Heavy-Duty Automatic Cutter For Wripping Paper Packing Bags And Non-woven Towel
Key Features
  • 16mm thick machine body panels ensure stable operation
  • Polyurethane rubber rollers offer a long service life
  • Aluminum alloy guide rollers are dynamically balanced and hard anodized
  • The #45 steel knife shaft is plated with a 100-micron thick hard chrome layer and dynamically balanced
  • Electrical components comply with Chinese 3C certification standards
  • Servo motors synchronously control the traction rollers for high-precision operation
  • German Siemens PLC control system with touch screen for convenient operation
  • Shaft-type unwinding device with pneumatic automatic loading, suitable for heavy and large rolls of material
  • Ultrasonic sensor edge guiding system for precise edge correction
  • Pneumatic tension roller unit for automatic speed adjustment and stable material feeding
  • Heavy-duty cast knife holder and high-quality steel cutting blades ensure clean and precise cutting and a long service life
Technical Specifications
ParameterSpecification
ModelZWC-1100D
Max. Loading Jumbo Roll Width1100mm
Max. Loading Jumbo Roll DiameterΦ1400mm
Max. Loading Jumbo Roll Weight1000kg
Unwind Paper Tube Inner Core Diameter3" (76mm)
Web Guide SensorUltrasonic sensor
Cutting Length20-1000mm
Cutting Precision±0.2mm
Cutting Speed30-150 cuts/min
Edge Trimming SystemBlowing fan
Cutting Thickness30-400gsm
Total Power10Kw
Power Supply380V, 3P, 50HZ
Air Supply0.6-0.8 Mpa, 0.8m³/Min
Weight3600Kg
Overall Dimension4800*2050*1550mm
Standard Configuration

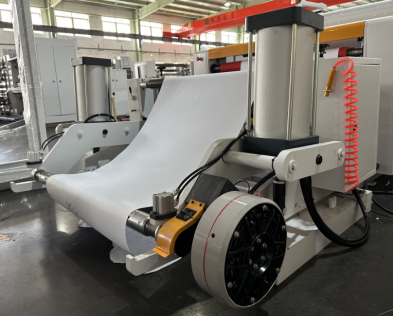

Shafted Unwind
The shaft-type unwinding unit is designed for loading large paper rolls and is equipped with an automatic pneumatic cylinder lifting device. Features include: one-button pneumatic locking of the unwinding shaft, two cylinder-driven clamping arms for lifting the paper roll, and a magnetic powder brake for controlling unwinding tension.
ZWC-1100D Roll Sheet Cutter Machine Heavy-Duty Automatic Cutter For Wripping Paper Packing Bags And Non-woven Towel
Web Guide System
Equipped with the Arise web guiding system for edge detection, this system includes automatic and manual control functions, high-precision ultrasonic sensors, a controller, and correction motors to ensure precise material feeding.
ZWC-1100D Roll Sheet Cutter Machine Heavy-Duty Automatic Cutter For Wripping Paper Packing Bags And Non-woven Towel
Traction System
This device utilizes TPU material rubber rollers for a long service life. The pressure rollers feature adjustable pneumatic control for perfect tension control. The front traction roller is controlled by a servo motor for high-precision cutting; the rear traction roller is motor-driven for material feeding.
ZWC-1100D Roll Sheet Cutter Machine Heavy-Duty Automatic Cutter For Wripping Paper Packing Bags And Non-woven Towel ZWC-1100D Roll Sheet Cutter Machine Heavy-Duty Automatic Cutter For Wripping Paper Packing Bags And Non-woven Towel
Dancer Roller
The pneumatic tension roller unit automatically adjusts the speed to ensure stable material transport during high-speed operation. Equipped with an encoder, it displays precise position information on the touchscreen and allows for traction speed adjustment based on the tension roller's position.
ZWC-1100D Roll Sheet Cutter Machine Heavy-Duty Automatic Cutter For Wripping Paper Packing Bags And Non-woven Towel ZWC-1100D Roll Sheet Cutter Machine Heavy-Duty Automatic Cutter For Wripping Paper Packing Bags And Non-woven Towel
Cutting Unit
Heavy-duty cast iron knife holder, equipped with a fixed bottom blade and a movable upper blade. A servo motor and driver provide high-precision control of the cutting length. Two sets of high-speed steel blades ensure perfect cutting quality and a long service life of 5-6 years. A braking AC motor drives the cutting blade on Hiwin guide rails for rapid braking. Equipped with an anti-static treatment device and a rotary shear blade for longitudinal cutting before transverse cutting.
ZWC-1100D Roll Sheet Cutter Machine Heavy-Duty Automatic Cutter For Wripping Paper Packing Bags And Non-woven Towel ZWC-1100D Roll Sheet Cutter Machine Heavy-Duty Automatic Cutter For Wripping Paper Packing Bags And Non-woven Towel

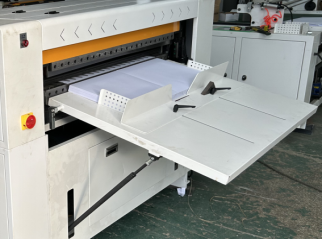

Table Stacker
It features adjustable angle and height. The desktop size can be customized according to specific production requirements.
ZWC-1100D Roll Sheet Cutter Machine Heavy-Duty Automatic Cutter For Wripping Paper Packing Bags And Non-woven Towel
Optional Equipment
German LEUZE Color Code Sensor
Top world brand color code sensor that accurately follows eye marks printing and cuts with high precision.
ZWC-1100D Roll Sheet Cutter Machine Heavy-Duty Automatic Cutter For Wripping Paper Packing Bags And Non-woven Towel
Frequently Asked Questions
What is the machine warranty?
The warranty period is one year. After the warranty period expires, we will still provide technical support to buyers at a reasonable price.
How about the machine installation and training?
We can provide free training at our factory. We can also send technicians to your factory for installation and training. You will be responsible for round-trip airfare and accommodation costs, and the fee for each technician is $150 per day.
