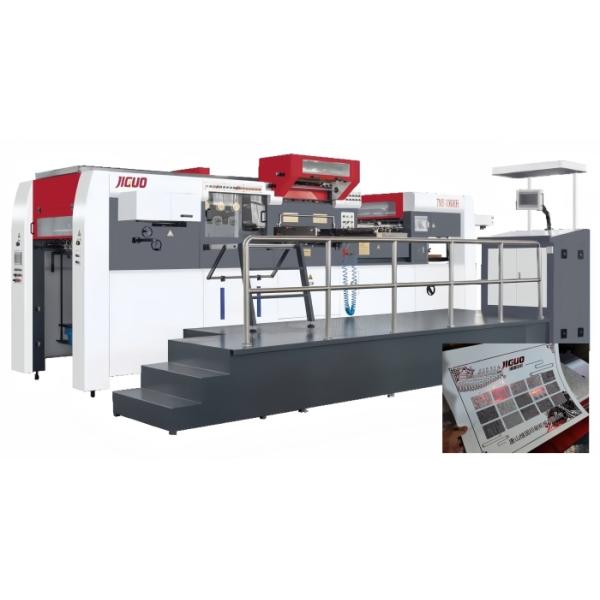

Automatic Hot Foil Stamping Machine TMY-1060H for Packaging
Automatic Hot Foil Stamping Machine TMY-1060H for Packaging
Automatic Hot Foil Stamping Machine TMY-1060H for Packaging
Automatic Hot Foil Stamping Machine TMY-1060H for Packaging
Automatic Hot Foil Stamping Machine TMY-1060H for Packaging
Automatic Hot Foil Stamping Machine TMY-1060H for Packaging
Automatic Hot Foil Stamping Machine TMY-1060H for Packaging
Automatic Hot Foil Stamping Machine TMY-1060H for Packaging
Automatic Hot Foil Stamping Machine TMY-1060H for Packaging
Automatic Hot Foil Stamping Machine TMY-1060H for Packaging
Specifications
Warranty :
1 Year
Computerized :
Yes
After-sales service provided :
Engineers available to service machinery overseas,Video technical support,Field installation
Weight :
18000kg
Power(w) :
70KW
Type :
Die-cutting Machine,Paper Cutting Machine
Brand Name :
JIGUO
Model Number :
TMY-1060H
Certification :
CE
Place of Origin :
CHINA
MOQ :
1 set
Price :
$210000 to $220000/1 Set
Payment Terms :
L/C,T/T
Supply Ability :
50 set
Delivery Time :
45 days
Packaging Details :
Wrap film or box
Dimension(l*w*h) :
7600*4050*2500mm
Description
Versatile Automatic Hot Foil Stamping Machine for High-performance and Custom-made Production
Product Specifications
Attribute Value
Weight 18000kg
Warranty 1 Year
After-sales service Engineers available to service machinery overseas, Video technical support, Field installation
Dimension (l×w×h) 7600×4050×2500mm
Type Die-cutting Machine, Paper Cutting Machine
Computerized Yes
Power 70KW
TMY-1060H Automatic Die Cutting & Hot Foil Stamping Machine

This fully automatic dual-unit holographic hot stamping, die-cutting, and stripping machine is designed for large-scale production with exceptional efficiency and precision.

Key Features
  • High-end efficiency: Performs hot stamping, die-cutting, and stripping in one operation, saving time and labor costs.
  • Flexible functionality: Optional features include hot stamping, die-cutting, stripping, holographic positioning, and embossing.
  • Intelligent systems: Non-stop paper feed and delivery system, automatic lubrication system, and hot stamping/stripping switchover system.
  • Advanced control: 15 optional servo motors ensure accurate positioning and high-speed stability with 12 independent heating zones (0-200°C).
Automatic Hot Foil Stamping Machine TMY-1060H for Packaging
Technical Parameters
Model TMY-1060H
Max. sheet size 1060×760(mm)
Min. sheet size 400×360(mm)
Max. die cutting size 1040×740(mm)
Max. stamping range 1030×730(mm)
Max. die cutting speed 7500s/h
Sheet thickness 0.1-3mm (Card paper) ≤4mm (corrugated paper)
Die cutting precision ±0.1mm
Stamping temperature 20-200℃
Heating plate zone number 12
No. of foil rollers 3 longitudinal / 2 transversal
Max. feeding pile height 1600mm
Max. delivery pile height 1400mm
Max. pressure 350T
Total power 70kw
Total weight 18T
Overall dimension 7600×4050×2500mm
Air requirements 0.8Mpa, >0.36m³/min
Automatic Hot Foil Stamping Machine TMY-1060H for Packaging
Applications

This hot stamping die-cutting machine is suitable for:

  • Tobacco carton
  • Wine boxes
  • Plastic boxes
  • Hang tags
  • Paper boxes
  • Corrugated boxes
Automatic Hot Foil Stamping Machine TMY-1060H for Packaging Automatic Hot Foil Stamping Machine TMY-1060H for Packaging Automatic Hot Foil Stamping Machine TMY-1060H for Packaging
Frequently Asked Questions
Q: What is the brand name of this product?
A: The brand name is SING JIGUO.
Q: What is the model number of this product?
A: The model number is MYP-1060H Automatic Die-Cutting & Stripping Machine.
Q: Where is this product manufactured?
A: This product is manufactured in China.
Q: Does this product have any certifications?
A: Yes, it is certified with CE.
Q: What is the main function of this product?
A: This product is mainly used for automatic die-cutting and stripping.
