Specifications
Power Supply :
15KW
MOQ :
1 Set
Packaging Details :
Stretch Film Standard Packaging
Max. Working Speed :
≤ 30000s/h (Depend On Different Product Size)
Place of Origin :
CHINA
Cardboard Paper Thickness :
120-1500gsm
Min Paper Size :
100*150mm
Delivery Time :
20Days
Machine Weight :
2800kg
Model Number :
TC-760S
Certification :
CE
Warranty :
1 Year
Payment Terms :
T/T
Min Film Size :
80*30mm
Price :
30000-50000＄
Supply Ability :
20Set
Max. Film size :
470*420mm
Brand Name :
SINO-JIGUO
Description


JIGUO TC-760S Automatic Servo Window Patching Machine,Max. sheet size (mm):760*850,Min. sheet size (mm):100*150,Max. Working Speed :≤ 30000s/h (Depend on different product size)

Product Description:

The Automatic Window Patching Machine is a state-of-the-art solution designed to enhance the efficiency and precision of window patching in paper box manufacturing. Engineered to meet the demands of modern packaging industries, this machine excels in applying transparent or translucent windows onto cardboard boxes, providing an attractive and functional display for packaged products. Whether you are producing food packaging, cosmetics boxes, or other retail packaging, the Automatic Window Patching Machine ensures consistent quality and high-speed operation.

Features:

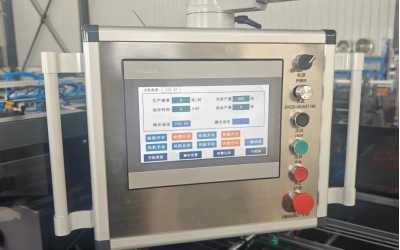

1. Human-computer Interface
JIGUO TC-760S Automatic Servo Window Patching Machine,Max. sheet size (mm):760*850,Min. sheet size (mm):100*150,Max. Working Speed :≤ 30000s/h (Depend on different product size)
This machine adopts high-performance servo control. Each operating part can be controlled through the touch screen, with separate servo control for each equipment component.

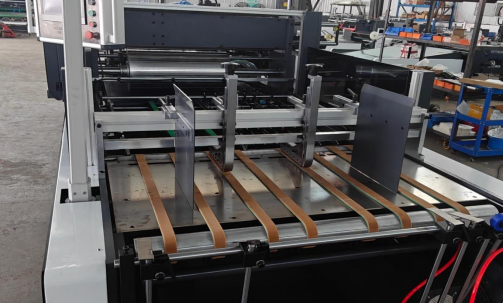

2. Servo Paper Feeder
JIGUO TC-760S Automatic Servo Window Patching Machine,Max. sheet size (mm):760*850,Min. sheet size (mm):100*150,Max. Working Speed :≤ 30000s/h (Depend on different product size)
Features high-performance servo control with pure imported material belts for strong wear resistance, ensuring stable paper output during high-speed operation.

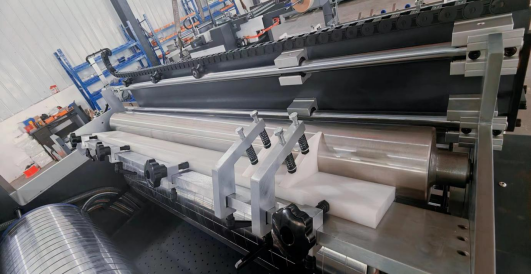

3. The Gluing Part
JIGUO TC-760S Automatic Servo Window Patching Machine,Max. sheet size (mm):760*850,Min. sheet size (mm):100*150,Max. Working Speed :≤ 30000s/h (Depend on different product size)
Utilizes high-performance servo control that automatically detects paper and adjusts roller position (the rubber roller can be pulled out for easy cleaning and local gluing).

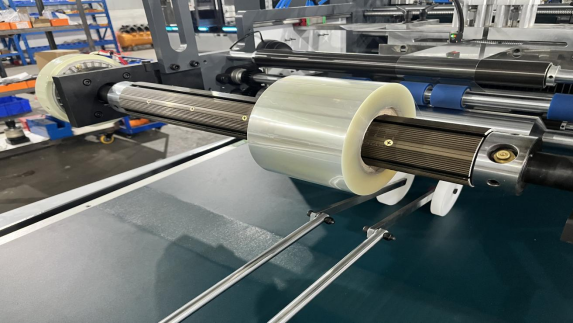

4. Coil Support
JIGUO TC-760S Automatic Servo Window Patching Machine,Max. sheet size (mm):760*850,Min. sheet size (mm):100*150,Max. Working Speed :≤ 30000s/h (Depend on different product size)
Incorporates high-performance magnetic powder controller that precisely delivers each film to the cutting position during operation.

Technical Parameters:

Max. Film Size 470×420 mm
Power Supply 380V, 50Hz, 3-phase
Min. Film Size 30×45 mm
Cardboard Paper Thickness 120-1500 gsm
Warranty 1 Year
Min. Paper Size 100×150 mm
Corrugated Board Thickness ≤ 5 mm
Machine Weight 2800 kg
Max. Working Speed ≤ 30000 s/h (Depend on Different Product Size)
Max. Paper Size 760×850 mm

Applications:

The SINO-JIGUO TC-760S Automatic Box Window Patching Machine is an advanced piece of equipment designed to enhance the efficiency and precision of window patching in packaging production lines. Originating from China and certified with CE standards, this machine guarantees quality and reliability for various industrial applications. It is ideal for manufacturers requiring a high-speed, automatic solution for applying transparent windows to cardboard boxes, allowing end-users to view the product inside without opening the packaging.
