Specifications
Power Supply :
380V, 50Hz, 3-phase
Min Paper Size :
100*150mm
Certification :
CE
Max Paper Size :
760*850mm
Packaging Details :
Stretch Film Standard Packaging
Supply Ability :
20Set
Machine Weight :
2800kg
Model Number :
TC-760Q
Place of Origin :
CHINA
Cardboard Paper Thickness :
120-1500gsm
Delivery Time :
20Days
Brand Name :
SINO-JIGUO
Max. Working Speed :
≤ 30000s/h (Depend On Different Product Size)
MOQ :
1 Set
Payment Terms :
T/T
Warranty :
1 Year
Corrugated Board :
≤5mm
Price :
30000-50000＄
Description

JIGUO TC-760Q Automatic Servo Window Patching Machine,Max. sheet size (mm) :760*850,Min. sheet size (mm):150*100,V Cutting Max. Working Speed:15000+ s/h (Corner cutting&creasing jobs)

Product Description:

The Paper Box Window Patching Machine is an advanced industrial solution designed to enhance the efficiency and quality of window patching on paper boxes. Engineered with precision and durability, this machine caters to the rigorous demands of modern packaging production lines, ensuring seamless integration and outstanding performance. With its robust construction and innovative features, the Paper Box Window Patching Machine is ideal for manufacturers who require consistent, high-speed operation without compromising on accuracy or reliability.

Features:

JIGUO TC-760Q Automatic Servo Window Patching Machine,Max. sheet size (mm) :760*850,Min. sheet size (mm):150*100,V Cutting Max. Working Speed:15000+ s/h (Corner cutting&creasing jobs)

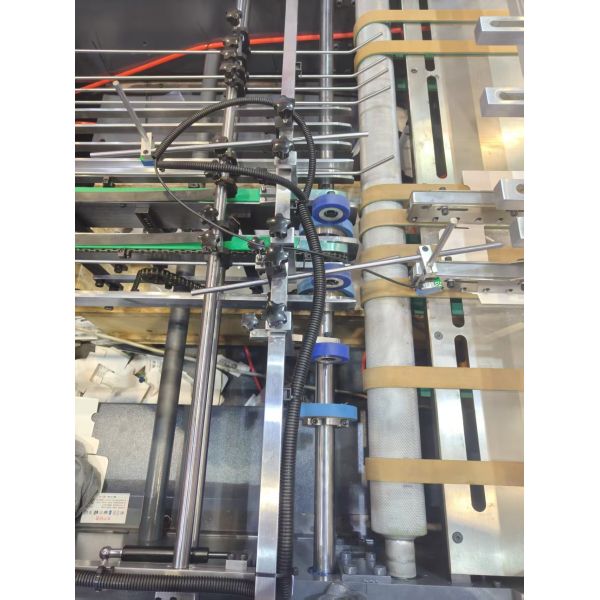

Servo Paper Feeder: High-performance servo control with imported wear-resistant belt material ensures stable paper output at high speeds.

JIGUO TC-760Q Automatic Servo Window Patching Machine,Max. sheet size (mm) :760*850,Min. sheet size (mm):150*100,V Cutting Max. Working Speed:15000+ s/h (Corner cutting&creasing jobs)

Film Cutting System: Scissor-style film cutting synchronized with servo control for precise film attachment, with adjustable positioning during operation.

JIGUO TC-760Q Automatic Servo Window Patching Machine,Max. sheet size (mm) :760*850,Min. sheet size (mm):150*100,V Cutting Max. Working Speed:15000+ s/h (Corner cutting&creasing jobs)

Paper Collection Platform: Micro motor-controlled platform with adjustable angle, speed regulation, and counting capabilities.

JIGUO TC-760Q Automatic Servo Window Patching Machine,Max. sheet size (mm) :760*850,Min. sheet size (mm):150*100,V Cutting Max. Working Speed:15000+ s/h (Corner cutting&creasing jobs)

Electrical System: Full servo control across all machine components ensures high stability and precision at maximum operating speeds.

Customization Options

Technical Parameters:

Power Supply 380V, 50Hz, 3-phase
Cardboard Paper Thickness 120-1500gsm
Corrugated Board ≤5mm
Warranty 1 Year
Min Film Size 30x45mm
Min Paper Size 100*150mm
Max Film Size 470*420mm
Max Paper Size 760*850mm
Machine Weight 2800kg
Max. Working Speed ≤ 30000s/h (Depend On Different Product Size)
