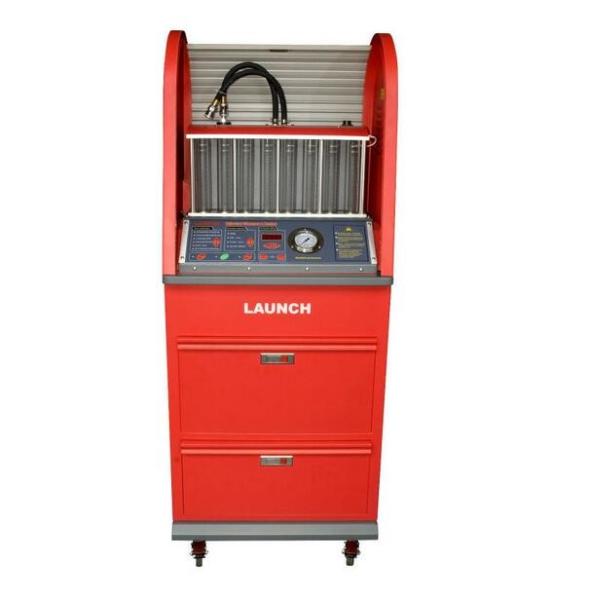

Car Diesel Engine Ultrasonic Fuel Injector Cleaning Machine 550mm × 530mm × 1400 Mm
Car Diesel Engine Ultrasonic Fuel Injector Cleaning Machine 550mm × 530mm × 1400 Mm
Specifications
Brand Name :
Launch
Model Number :
E360
Certification :
CE
Place of Origin :
China
MOQ :
1
Price :
Best Price
Payment Terms :
TT / PayPal / Western Union / Money Gram
Supply Ability :
In stock
Delivery Time :
Within 48 hours
Packaging Details :
Standard Package
Type :
Fuel Injector Cleaning Machine
Product name :
LAUNCH CNC801A
Warranty :
One year
Input power :
280W
Dimensions :
550mm×530mm×1400 mm;
Ultrasonic cleaning power :
100W
Description

LAUNCH CNC-801A CNC801A CNC801A Fuel injector cleaner & tester injector Fuel Injector Cleaning Machine

Feature

* Ultrasonic cleaning: To perform simultaneous cleaning on several injectors and to remove the carbon deposits on the injector completely.
* Uniformity/Sprayability test: To test the uniformity of injecting amount of each injector, and to monitor the spraying status of each injector with the help of backlight. This test is also for reverse flush.
* Leakage test: To test the sealing and dribbling conditions of injectors under system pressure.
* Injecting flow test: To check the injecting amount of the injector in 15 seconds of constant injection.
* Auto. test: To test injectors by simulating different working conditions.
* On-vehicle cleaning: The unit is equipped with various adaptors and couplers that facilitate cleaning on the injectors on vehicle.

Specification

* Power supply:AC220V±10%/50Hz~60Hz AC110V±10%/ 50Hz~60 Hz
* Input power: 280W;
* Ultrasonic cleaning power: 100W;
* Simulated RPM range: 10~9990rpm; step: 10rpm;
* Count range: 1~9999 times;
* Pulse width: 0.5~25ms; step 0.1 ms;
* Fuel tank capacity: 4700ml;
* Dimensions: 550mm×530mm×1400 mm;
* Weight: About 80kg.

Function Improvement

Item Update Date
The Change about test liquid package on CNC 2010-8-2
Change for CNC601A/801A Backlight 2008-3-10
Issued new edition user manual for CNC series 2007-11-22
Cancelling the flammability remarks on CNC carton package. 2006-7-13
Changing the file for after-sales handbook and user's manual configurated by CNC series products. 2006-6-26
Change for CNC control board PCA and drive board PCA 2006-6-21
CNC601A/CNC801A package changed 2006-4-28

Spare Parts

NO. Part Code Part Name
1 105020217 CNC pulse signal connection cable 1,T=0.5
2 105020218 CNC pulse signal connection cable 2,T=0.8
3 103260037 CNC-601/801 Ultrasonic cleaner assembly 100W
4 103250013 CNC-601/801 Top-supply connector 1
5 103250015 Swiss thread adaptor for fuel top-supply injector
6 103250016 CNC-601/801 Coarse thread adaptor for fuel top-supply injector
7 103250018 CNC-601/801 Hexangular stopper
8 104990012 CNC-801 BUICK injector adaptor
9 199010019 Injector testing liquid
10 307030024 Injecter detergent
11 202010021 on-vehicle connect hose 2
12 103250017 reverse flush adaptor
