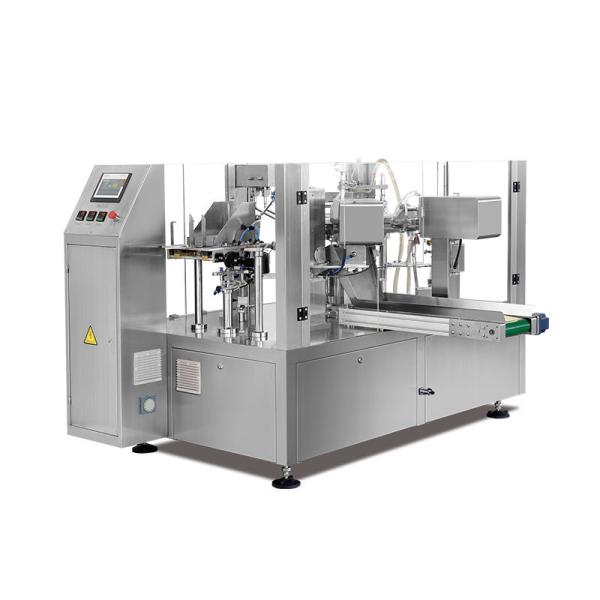

Premade Zip Bag Automatic Weigh Fill Seal Packing Machine For Coffee Beans
Premade Zip Bag Automatic Weigh Fill Seal Packing Machine For Coffee Beans
Premade Zip Bag Automatic Weigh Fill Seal Packing Machine For Coffee Beans
Premade Zip Bag Automatic Weigh Fill Seal Packing Machine For Coffee Beans
Specifications
Brand Name :
LTPM CHINA
Model Number :
HorizonTop-Series
Certification :
CE
Place of Origin :
CHINA
MOQ :
1 Set
Price :
Negotiation
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
25 sets/ month
Delivery Time :
25
Packaging Details :
Wooden Case
Type: :
Packing Machine
Application :
food,daily chemical etc
Automatic Grade: :
Automatic
Dimension(L*W*H): :
1710*1505*1640mm
additional function :
hanging hole,special shape
Packing speed: :
30-60bags/min
Control :
PLC+ Touch Screen+Inverter
Weight(kg) :
1600
Description

Products Description

Main Features
1. Easy to operate: PLC controller, HMI system, fault indication on the touch screen.
2. Easy to adjust: All working process in one station, more easily adjusting.
3. Frequency control: Speed can be adjusted by frequency conversion within the range.
4. High Automation: Unmanned in weighing and packing process, machine will show alarm automatically
when failure.
5. Pouch size change: 8 sets of gripper can be adjusted hand wheel at one time .
6. No pouch/ incorrect pouch opening-no fill-no seal, machine alarm.
7. Machine will show alarm and stop when inadequate air pressure.
8. Safety guards with safety-switches, machine alarm and stop when the safety guards are opened.
9. Hygienic construction, the product contact parts are adopted sus304 stainless steel.
10. Imported engineering plastic bearings, no need oil, no contamination.
11. Oil-free vacuum pump, avoid the pollution of the production environmental.
Work Process:
bag giving→date coding →bag opening →filling and vibrating 1→filling and vibrating2→heat sealing 1→heat sealing 2→forming and output

Data

Model HorizonTop-Series
Bag Size
Width:100-210mm,
Length:100-350mm
Filling Volume 5-2500g (Depending on type of products)
Capacity 30-60bags/min
(The speed depends on products and packaging material )
25-45bags/min (For zipper bag)
Package Accuracy Error≤±1%
Total Power 4 KW (220V-450V, 3PH, 50HZ/60HZ
Demension 2300×1500×1600
Weight 1700 KGS
Main Standard Accessories

1. Bag feeding system 2. PLC control system 3. Bag opening device 4. Filling system
5. Cleaning system 6. Hot
sealing control system 7. Output system

Packaging Style Display

Premade Zip Bag Automatic Weigh Fill Seal Packing Machine For Coffee Beans
