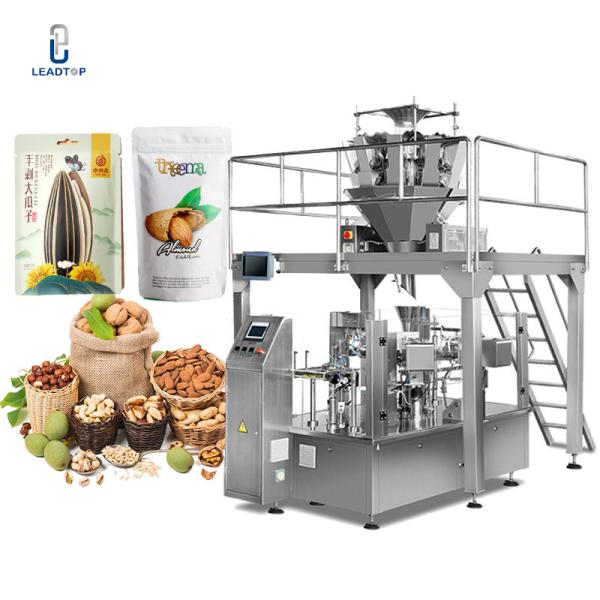

Doypack Packaging Machine Preserved Fruit And Candied Fruit Raisins Premade Bag Packing Machine Pouch Bag Packing Machine
Doypack Packaging Machine Preserved Fruit And Candied Fruit Raisins Premade Bag Packing Machine Pouch Bag Packing Machine
Specifications
Brand Name :
LTPM CHINA
Model Number :
HorizonTop-Series
Certification :
CE
Place of Origin :
CHINA
MOQ :
1 Set
Price :
Negotiation
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
25 sets/ month
Delivery Time :
25
Packaging Details :
Wooden Case
Type: :
Packing Machine
Application :
food,daily chemical etc
Automatic Grade: :
Automatic
Dimension(L*W*H): :
1450(L)*1560(W)*1525(H)mm(single host)
additional function :
hanging hole,special shape
Packing speed: :
5-60 bags/min
Control :
PLC+ Touch Screen+Inverter
Weight(kg) :
1400
Description

Products Description

Dession new powder bagging system for premade bags. Engineered for a client packaging dry powder, this system is also the perfect solution for packaging other granule or liquid products where a premade bag is required.

Built specifically for the client’s bag sizes. This automated system conveys powder from a Hopper up to the Powder Auger Powder Weigher via a screw conveyor.
Once weighed, it passes into the Horizontal Premade Bag Packing Machine where it is dispensed into premade bags before the top is sealed. Bags are then conveyed to the Weight Check Weigher to ensure each bag meets the preset weight tolerance before it is accumulated on a Rotary Table.
Unique system features include an integrated bag shaker to fully settle the product in the bag prior to sealing, and a product rejection system to prevent the accumulation of bags that are outside of the desired weight tolerance.
This integrated powder packaging system to weigh fill up to 3000 bags per hour to meet the needs of the most progressive retailers.

Data

Mechanical station:
Eight working station
Bag Type:
Self standing bag, handbag, three side sealing bag, paper bag, composite bag
Package size:
W:80-210mm
L:100-400mm
W:130-260mm
L : 100-400mm
W180-300mm
L : 100-400mm
Speed of packing:
25-60 packets per minute
25-50 packets per minute
10-30 packets per minute

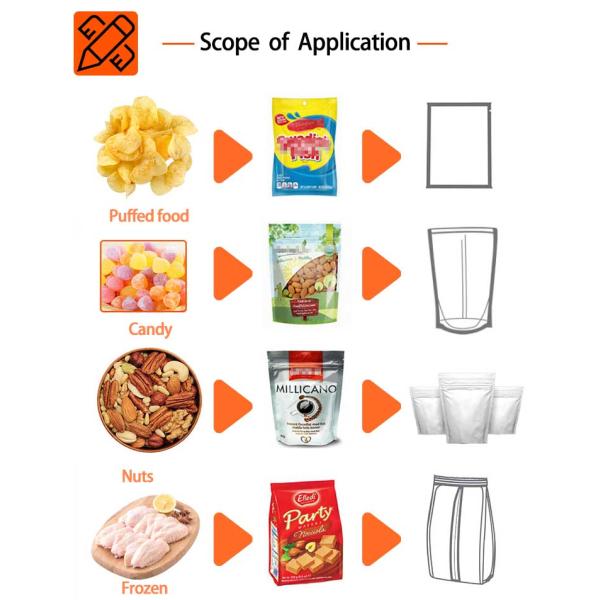

Packaging Style Display
