Desktop Semi Automatic Nutrition Vitamin Supplement Bottle Seed Counting Tablet Counter Seed Candy Counting Counter Machine
Desktop Semi Automatic Nutrition Vitamin Supplement Bottle Seed Counting Tablet Counter Seed Candy Counting Counter Machine
Specifications
Brand Name :
LTPM China
Model Number :
RC-2/HY-2/HY-2A
Certification :
CE, GMP, SGS, BV
Place of Origin :
China
MOQ :
1set
Price :
Negotiation
Payment Terms :
T/T,L/C,D/P
Supply Ability :
15sets/month
Delivery Time :
25days
Packaging Details :
Export Standard Wooden Case
Usage :
capsule,tablets,gums,rubber,etc.
Power :
110-220V 50HZ-60HZ
Transmission :
Electronic
capacity :
500-4000pcs /min
Brand :
LeadTop
Line Length :
optional
Machine size :
735mm×580MM×720MM(L*W*H)
Weight :
50KG
Description

Product Description:

Under the driving of the vibration, the product pass through the regulating valve below the material container, moving forward in order and fall into counting tunnels. When the product reaches raster holes, the counting photoelectric will produce a pulse signal and counting. The signal is grouped into the left and the right, accumulated and sent to the PLC. When the set quantity is reached, the flashboard will close. At the same time, the bottle to be filled is already in its position. The funnel cylinder board opens, and the counted product fall into the bottle. Then the tunnel begins another counting, the positioning cylinder opens, and the filled bottle is sent to the next process. A new bottle is placed under the funnel, a new round of counting and filling starts.

Feature:

Compact Desktop Design

Space-saving semi-automatic counter ideal for small labs, pharmacies, or supplement packaging lines.

Multi-Product Compatibility
Accurately counts tablets, capsules, vitamins, seeds, gummies, and small candies in one versatile machine.
Easy Operation & High Accuracy
Simple manual feeding with precise optical sensors ensures reliable ±1-count accuracy per bottle.
Cost-Effective Automation
Reduces human error and labor costs while offering an affordable entry into automated counting.
Technical Parameters:
Application Scope
Hard capsules, soft capsules, tablets, pills, etc.
Control Method
Control Method
Counting Method
Fiber optic infrared detection
Counting Errors
±0.3%
Dimension
735mm×580MM×720MM(L*W*H)
Weight
50KG

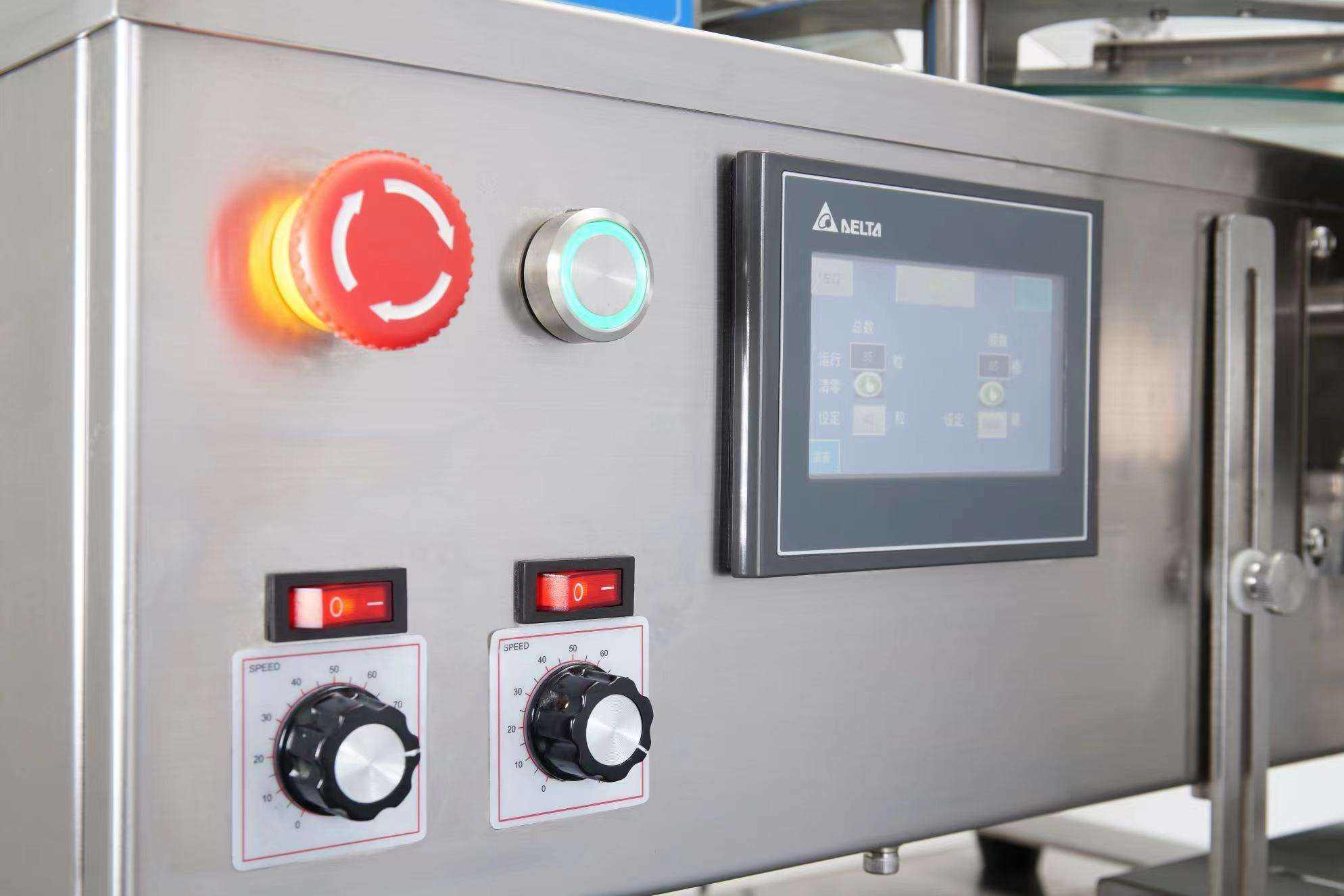

Machine Detail:

Desktop Semi Automatic Nutrition Vitamin Supplement Bottle Seed Counting Tablet Counter Seed Candy Counting Counter Machine
