Fully Automatic Seed Parts Button Counting And Packing Ticket Cash Capsule Automatic Counting Machine
Fully Automatic Seed Parts Button Counting And Packing Ticket Cash Capsule Automatic Counting Machine
Specifications
Brand Name :
LTPM China
Model Number :
LTEC series
Certification :
CE, GMP, SGS, BV
Place of Origin :
China
MOQ :
1set
Price :
Negotiation
Payment Terms :
T/T,L/C,D/P
Supply Ability :
15sets/month
Delivery Time :
25days
Packaging Details :
Export Standard Wooden Case
Usage :
capsule,tablets,gums,rubber,etc.
Power :
220v 50hz single phase
Transmission :
Electronic
capacity :
20000pcs/h
Brand :
LeadTop
Line Length :
optional
Weight :
320KG
Dimension :
1360*1530*1700(L*W*H)
Description

Products Description

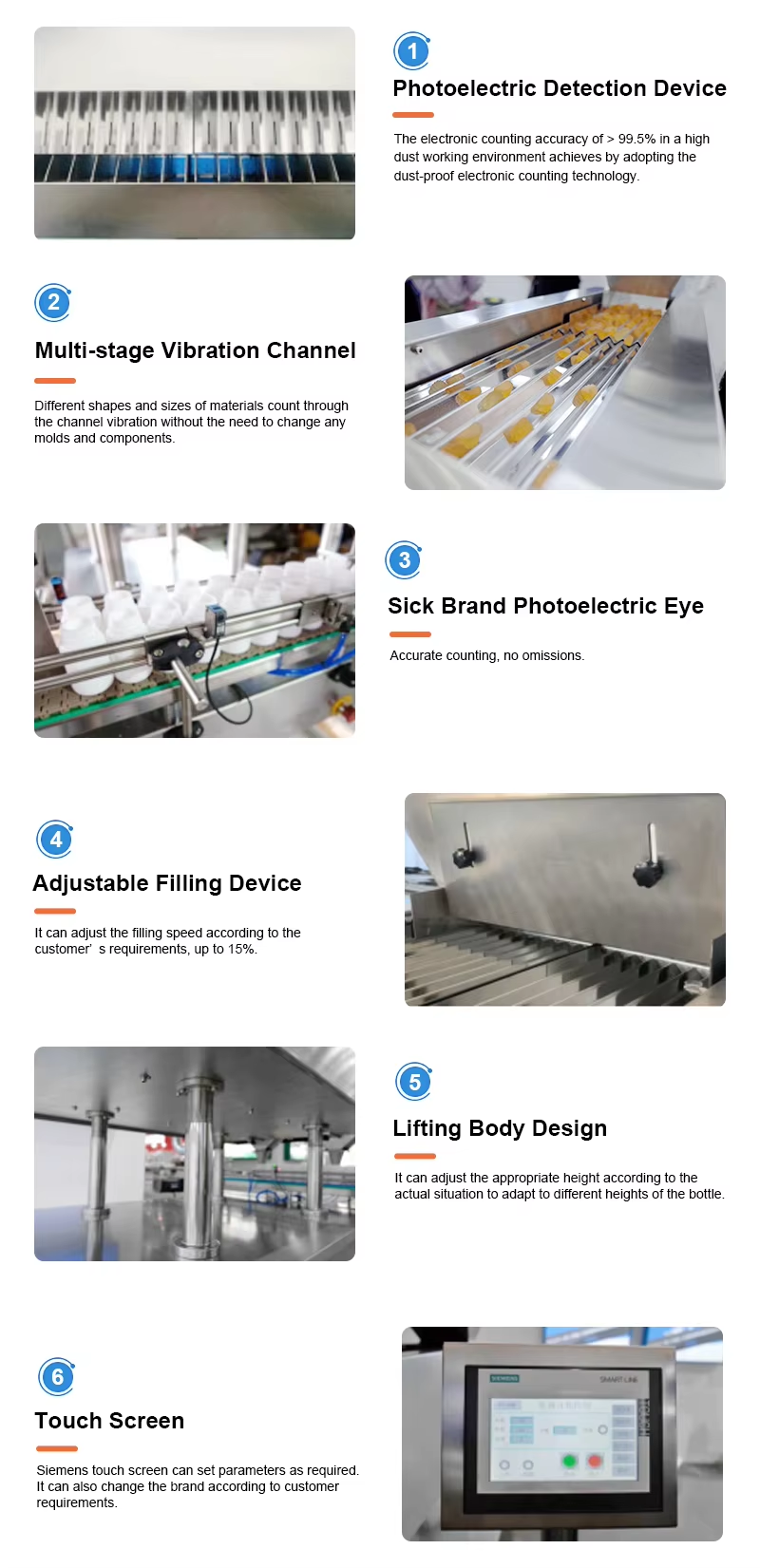

Under the driving of the vibration, the product pass through the regulating valve below the material container, moving forward in order and fall into counting tunnels. When the product reaches raster holes, the counting photoelectric will produce a pulse signal and counting. The signal is grouped into the left and the right, accumulated and sent to the PLC. When the set quantity is reached, the flash board will close.

At the same time, the bottle to be filled is already in its position. The funnel cylinder board opens, and the counted product fall into the bottle. Then the tunnel begins another counting, the positioning cylinder opens, and the filled bottle is sent to the next process. A new bottle is placed under the funnel, a new round of counting and filling starts.

Main Technical Data

Model
LTEC-Series
Capacity
10-40 bottles/min
Working Range
1-9999pcs/bottle
Power
0.6 kw
Filling Error
≤2‰ bottles
Dimension
1360*1530*1700(L*W*H)
Weight
320KG
