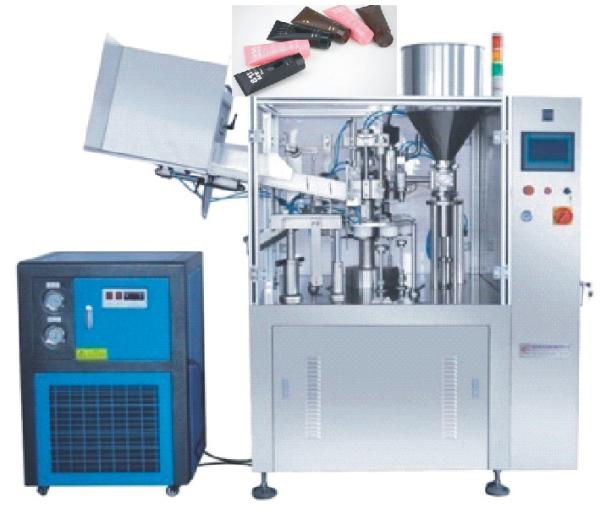

VFD Tube Filling Machine Sealer SUS304 Dental Equipment
VFD Tube Filling Machine Sealer SUS304 Dental Equipment
Specifications
Brand Name :
LEADTOP
Model Number :
LTRG-60
Certification :
CE certification
Place of Origin :
China
MOQ :
1 set
Price :
discuss personally
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
25 days/month
Delivery Time :
25days
Packaging Details :
wooden box
Model :
LTRG-60
Tube Material :
Aluminum Tube
Filling Speed :
30-80 pcs/min
Tube Length :
50-240mm (customizable)
Filling Volume :
3-350 ml
Production Speed :
70-95 pcs/min
Description

Main functions:

1. automatic tube orientation

2. automatic heating

3. automatic sealing and pressing the batch, dates

4. automatic cutting the tail

5. automatic exiting

Characteristics

1. The material contact parts are made of stainless steel SUS304 and SUS316 is optional .

2. The connection of the various is used the quick-change device, which is easy to disassemble and clean;

3. high-quality pneumatic components

4. The height of conveyor table can be adjusted easily by a hand wheel for different tubes

5. Pistol plunger filling system processed by digital controlled lathe to guarantee a high filling precision of 1%. And the volume is adjustable.

6. The filling speed can be adjusted freely a VFD

7. Production counter could be displayed on the control cabinet

8. Inner heating and out heating technology, a stable and good looking sealing is got.

Technical Parameter

Model
LTRG-Series
Filling range
3-300(ml)( can be customized)
Filling speed
40-60(pics/min)
Gas source(Mpa)
0.55-0.65
Filling accuracy
≤±0.05%
Tube diameter(mm)
Φ10- Φ32(can be customized)
Tube Length(mm)
45-250(can be customized)
Supply Power
380v/220v
Head
1
Power
2kw
Net weight
800kg

VFD Tube Filling Machine Sealer SUS304 Dental EquipmentVFD Tube Filling Machine Sealer SUS304 Dental Equipment
