Aluminum Plastic Blister Packaging Equipment 900 - 2100 Sheets / Hour Capacity
Aluminum Plastic Blister Packaging Equipment 900 - 2100 Sheets / Hour Capacity
Aluminum Plastic Blister Packaging Equipment 900 - 2100 Sheets / Hour Capacity
Aluminum Plastic Blister Packaging Equipment 900 - 2100 Sheets / Hour Capacity
Aluminum Plastic Blister Packaging Equipment 900 - 2100 Sheets / Hour Capacity
Aluminum Plastic Blister Packaging Equipment 900 - 2100 Sheets / Hour Capacity
Specifications
Brand Name :
LTPM CHINA
Model Number :
DPP-88
Certification :
CE certification
Place of Origin :
Zhejiang, China
MOQ :
1 SET
Price :
USD5000/SET
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
25 Sets per month
Delivery Time :
35days
Packaging Details :
Wooden box
Type :
Blister packing machine
Model number :
DPP-88
Blanking Frequency :
15-40Punches/min
Capacity :
900-2100 sheets/hour
Max. Forming :
120*110*15 mm
Description

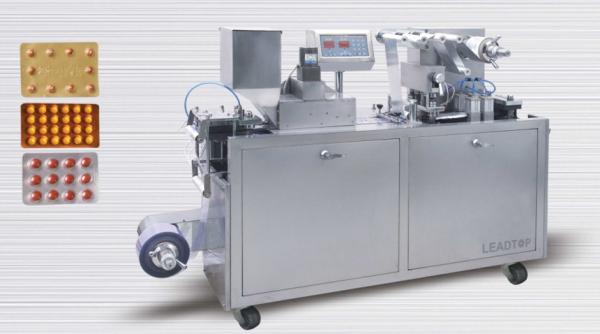

DPP-88 Aluminum Plastic Blister Packaging Machine

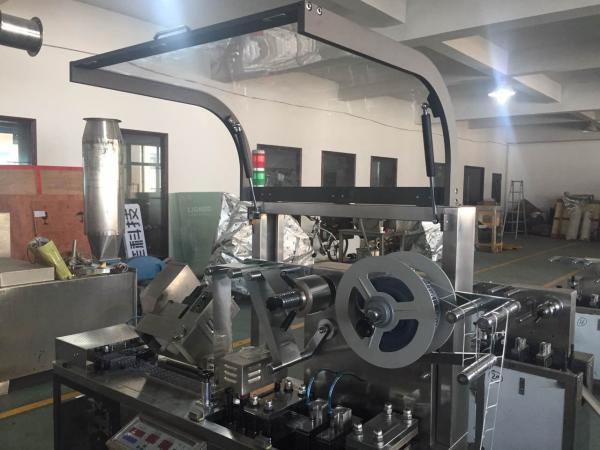

Machine with Organic glass cover
Applications:
The machine is new product which is improved based on customer’s requirements. It’s suitable for packaging of all kinds of liquid and solid in medium & small pharmaceutical factory, health medicine factory, hospital preparation lab, food industry, electronic industry, hardware industry, etc. It can protect the material from steam or dust, improve product packing degree, and increase the additional value. The machine is used to produce small quality and many kinds of products.

Main Technical Data:

Model DPP-88
Blanking Frequency 15-40Punches/min
Sheet’s quantity of one blanking 1sheets
Capacity 900-2100sheets/hour
Adjustable scope of feed travel 10-110mm
Max. Forming: 120*110*15mm
Power Supply 380V 50Hz 5.5Kw

Wrapper Specification PVC:

PTP:

120×(0.15-0.5)mm

120*(0.02*0.035) mm
Overall Dimensions 1650*500*1100mm
Packaging Dimension 1800*650*1250mm
Weight 650Kg


Feature:
Travel scope can be adjusted. Mould is located by located groove so that it’s easy to change mould. The machine heats the PVC through conduction and forms it through pressing and frothing.
The material is fed automatically. The mould and feeding equipment can be designed as user’s requirements.
The heating moulds will automatically separate when the machine stops, which contributes to protect the material between them and extend the machine’s life.
The equipment of trace pressing, batch number printing and scrap-collecting can be chose.
Manipulator grip and tow wrapper, straight to-and-fro running, synchronize accurately and stably.
Speed is shifted by step-less transducer; the operation panel of PC cycle (can be Adopt interface of human-machine).
