ZP Series Tablet Press Machine Laboratory Automatic Chemical Pharmaceutical Pill Rotary
ZP Series Tablet Press Machine Laboratory Automatic Chemical Pharmaceutical Pill Rotary
ZP Series Tablet Press Machine Laboratory Automatic Chemical Pharmaceutical Pill Rotary
ZP Series Tablet Press Machine Laboratory Automatic Chemical Pharmaceutical Pill Rotary
ZP Series Tablet Press Machine Laboratory Automatic Chemical Pharmaceutical Pill Rotary
ZP Series Tablet Press Machine Laboratory Automatic Chemical Pharmaceutical Pill Rotary
ZP Series Tablet Press Machine Laboratory Automatic Chemical Pharmaceutical Pill Rotary
ZP Series Tablet Press Machine Laboratory Automatic Chemical Pharmaceutical Pill Rotary
ZP Series Tablet Press Machine Laboratory Automatic Chemical Pharmaceutical Pill Rotary
ZP Series Tablet Press Machine Laboratory Automatic Chemical Pharmaceutical Pill Rotary
Specifications
Brand Name :
LTPM CHINA
Model Number :
ZP-Series
Certification :
CE
Place of Origin :
China
MOQ :
1 set
Price :
Negotiation
Payment Terms :
30% TT as deposit and 70% before shipping
Supply Ability :
25 sets
Delivery Time :
In 35 days after receiving the deposit
Packaging Details :
Wooden Case
Production capacity :
40000-85000pcs/h
Max. Diameter of tablet to be produced (mm) :
25
Voltage (v/hz) :
380/50
Max. Thickness of tablet (mm) :
9
Weight :
1650KG
Total power :
7.0kw
Rotary speed of the turret (rpm) :
14-35
Dimensions :
820*1100*1750mm
Description

Electric Rotary Tablet Press is a small tablet pressing machine with automatic rotation and continuous tablet pressing. Within the pressure range of the machine, it can press the granular raw materials with powder content less than 10% into round, special-shaped and lettering tablets of 5~20 mm. It is mainly used in pharmaceutical, chemical, food, electronic and other industries. Notice: This machine is not suitable for semi-solid, wet granules, low melting point moisture absorbing raw materials and powder tablet without granules.

No. of stations 26
Tooling type D
Output range (Tablets/h) 34000~171000
Rotation speed range (rpm) 22~110RPM
Main pressure 100KN
Pre-pressure 16KN
Max. filling depth 20mm
Max tablet diameter Φ25mm
Max length of irregular tablet 25 mm
Diameter of die Φ38.1mm
Diameter of punch 25.35mm
Pitch circle diameter 370mm
Length of punch 133.6mm
Main motor power 7.0kw
Dimension of machine L*W*H(mm) 820*1100*1750mm
Weight 1650kg


Company Profile

ZP Series Tablet Press Machine Laboratory Automatic Chemical Pharmaceutical Pill Rotary

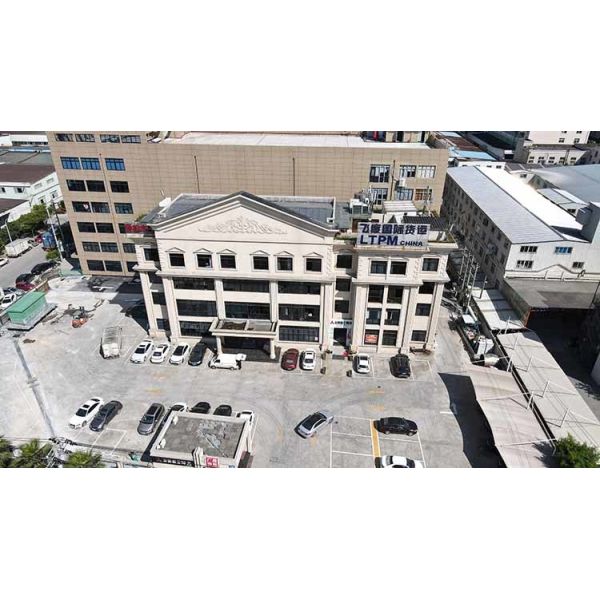

Our Company
- Since year 1996, LTPM CHINA had started manufacturing chemical and food packaging machines such as Ampoule Filling and Sealing Machine, Blister Packaging Machine, Counting and Bottling Line, Cartoning Machine, Bag Packaging Machine, Liquid Filling and Capping Machine etc. - LTPM CHINA designs different types of packaging lines for customers, including standard or non-standard models. - LTPM CHINA's machinery = High automation + High precision + More energy saving + Satisfactory warranty and after-sales service + Trusted brand.
ZP Series Tablet Press Machine Laboratory Automatic Chemical Pharmaceutical Pill Rotary
Our Certificates
ISO, CE, SGS, BV Certified Company.
ZP Series Tablet Press Machine Laboratory Automatic Chemical Pharmaceutical Pill Rotary
Our Machinery Manufacturing Workshop
Imported CNC Machining Centre makes all parts process accurate. Own R&D team with more than 20 years engineering expereince, can customize the equipment and packaging line to your satisfaction.

FAQ
Q: What is the warranty period for your machine?
A: 5 years free warranty.

Q: Are you a real factory/manufacturer?
A: Of course. Our factory is inspected by third party. We much welcome you to visit us and free to pick you up form hotel. You don't have time? We can use live video and you can visit us on line.

Q: Is engineer available to serve oversea?
A: Yes, we can send engineers to your factory but all the fee will be on buyers. In order to save your cost, we will send you a video of full details machine installation and assist you till the end.

Q: How can we make sure about the machine quality after placing the order?
A: Before delivery, we will running half hour of the machine to checking the stability and sending you the testing video until you sastisfy. We will setting all the parameters well. And also you can arrange for quality checking by yourself or by your contacts in China.

Q: We are afraid you won't send us the machine after we send you the money?
A: We have our business license and certificate. And it is available for us to use ali trade assurance service, protect your money, machine qulaity and delivery are guaranted.
