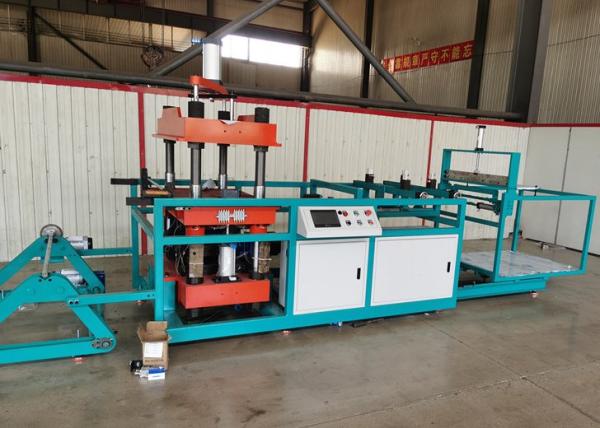

ABS 150mm Blister Forming Machine Servo Positive Air Pressure Thermoforming
ABS 150mm Blister Forming Machine Servo Positive Air Pressure Thermoforming
Specifications
Brand Name :
BoHai
Model Number :
BH-7177
Certification :
CE
Place of Origin :
China
MOQ :
1
Price :
Negotiate
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
Two in a month
Delivery Time :
20day
Packaging Details :
Container
Max.Forming Height(mm) :
150 mm
Core Components :
PLC, Engine, Bearing, Motor, Gear, Pump
Product Type :
Blister
Forming Width (mm) :
750 mm
Production Speed(Cycles/min) :
25
Sheet Thicknes :
0.2-2mm
Max. forming area :
740*480mm
Warranty of core components :
1 Year
Description

Servo Positive Air Pressure Thermoforming Blister Forming Machine

The control board is near the operator, can be operated easily, greatly improve the efficiency of production.
The far-infrared ceramic heating elements can control every single block heater temperature, easy temperature control.
The furnace is guided by bearing and guide pin, can move steady, enhance efficiency and furnace life.
The cooling fan is equipped with a wide mouth and spray device, to improve efficiency and product quality.

Product Paramenters
CH-68-XSJ
CH-70-XSJ
Power
12.5KW
15KW
Forming Area
560*610mm
560*610mm
Forming Height
150mm
150mm
Speed
120-180Moulds/H
120-180Moulds/H
Thickness Of the Material
0.2-1.5mm
0.2-1.5mm
Cooling Fan
●
●
Upper mold
●
●
PLC Control
●
●
Robot hand rise/fall
●
●
Suitable Material
PVC/PET/PETG/GAG/PP/PS/ABS
Material type
Roll or Sheet, thickness:0.2-1.5(mm)
Machine Size
1800*1500*2200mm
2200*2250*2200mm

This machine can be equipped water spray cooling system if the blister is deep and complex.
This machine can form all kinds of blisters just replace mould.
