40000 Bricks Per Hour 390kw Clay Brick Machine
40000 Bricks Per Hour 390kw Clay Brick Machine
40000 Bricks Per Hour 390kw Clay Brick Machine
40000 Bricks Per Hour 390kw Clay Brick Machine
40000 Bricks Per Hour 390kw Clay Brick Machine
40000 Bricks Per Hour 390kw Clay Brick Machine
40000 Bricks Per Hour 390kw Clay Brick Machine
40000 Bricks Per Hour 390kw Clay Brick Machine
Specifications
Brand Name :
CB
Model Number :
JKY-70
Certification :
ISO-9001 CE
Place of Origin :
CHINA
MOQ :
1 set
Price :
Negotiation
Payment Terms :
L/C, D/A, T/T
Supply Ability :
5000SETS
Delivery Time :
60 days
Packaging Details :
wooden box and container
Production Name :
Brick Making Machine
Production capacity(/h) :
28000-40000
Moisture Content :
13-18 %
Delivery Time: :
20-45 Days
Brand :
cangbo
weight :
35000
Overall dimension :
7900×2800×3300
Pressure :
4.0
Colour :
red
Vacuum degree :
-0.092
Power :
280+110
Condition :
New
Type :
clay brick machine
Description

40,000 Bricks Per Hour JKY70 Two-Stage Automatic Red Clay Brick Machine

1. product description

JKY70 two-stage vacuum automatic brick extruder is a new type of brick-making equipment designed and manufactured by our company, which benefits from advanced technology at home and abroad. Integral steel structure, the main parts are casted with high wear-resistant alloy by high frequency heat treatment process. Reasonable structure, large load, energy saving, high efficiency, convenient maintenance, more suitable for shale, coal gangue, fly ash, clay, etc. to prepare porous bricks and solid bricks

2.Product performance

Date Units of meas JKY70-4.0
Production capacity Pieces/h 28000-40000
Reamer diameter mm 550
Pressure Mpa 4.0
Moisture content % 13～18
Vacuum degree Mpa ≤-0.092
Power kw 280+110
Size mm 7900×2800×3300
Weight kg 35000

3.product features

JKY70 two-stage vacuum automatic brick making machine Hard tooth surface gear adopts reducer, with high tooth surface hardness, high carrying capacity, high transmission efficiency, stable operation, superior performance, long service life, low noise, low vibration, and energy saving 30% compared with similar equipment

4.Product Advantage

1. JKY70 two-stage vacuum automatic brick making machine is mainly used for coal gangue, coal ash, shale, clay and other raw materials. It is an ideal equipment for producing various standard bricks, hollow bricks, irregular bricks, high-porosity bricks, etc.


2. The main frame of the vacuum extruder of JKY70 two-stage vacuum automatic brick making machine is welded by high-quality steel, which has the characteristics of low cost, reliable performance and reasonableness.

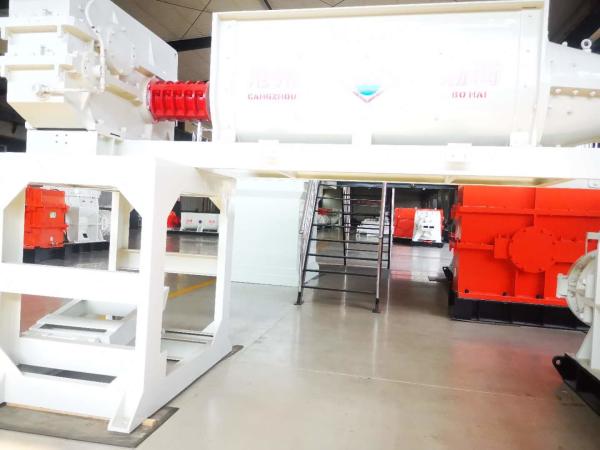

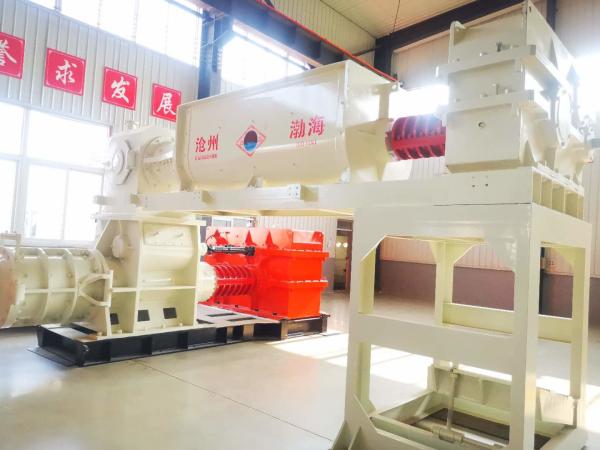

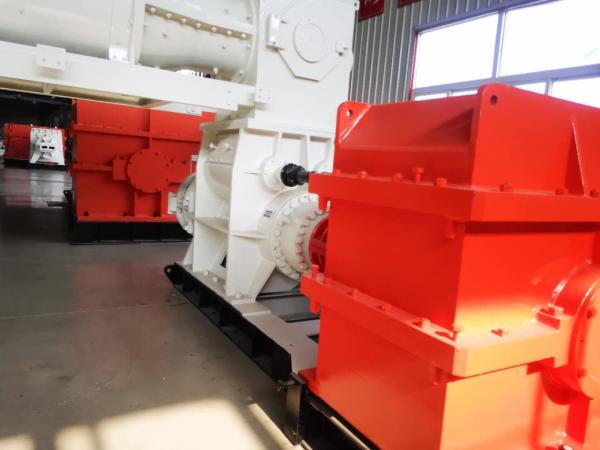

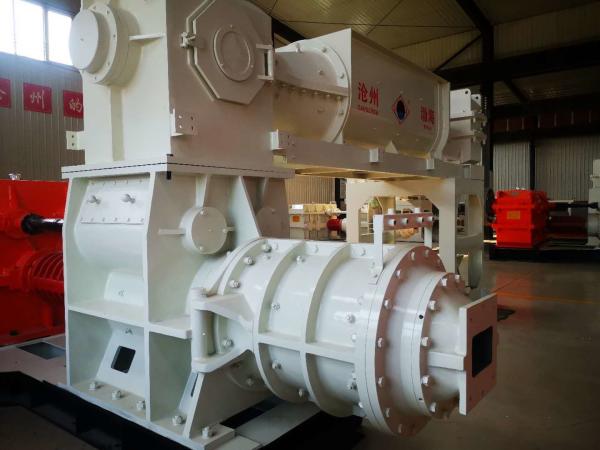

5. Macine pictures

40000 Bricks Per Hour 390kw Clay Brick Machine40000 Bricks Per Hour 390kw Clay Brick Machine

40000 Bricks Per Hour 390kw Clay Brick Machine
