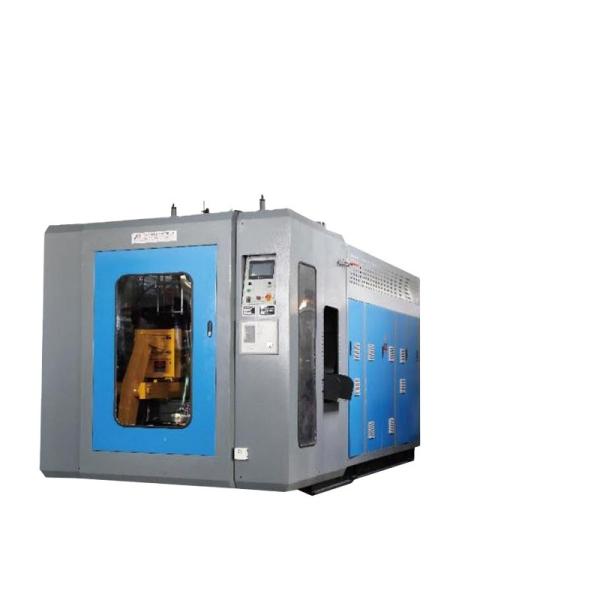

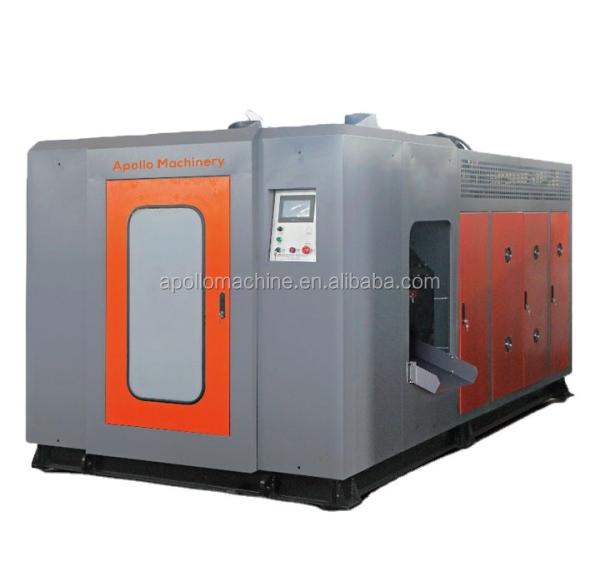

1L Lubricant Bottle Blow Mold Machine 90 Mm High Speed Plastic
1L Lubricant Bottle Blow Mold Machine 90 Mm High Speed Plastic
1L Lubricant Bottle Blow Mold Machine 90 Mm High Speed Plastic
1L Lubricant Bottle Blow Mold Machine 90 Mm High Speed Plastic
1L Lubricant Bottle Blow Mold Machine 90 Mm High Speed Plastic
1L Lubricant Bottle Blow Mold Machine 90 Mm High Speed Plastic
1L Lubricant Bottle Blow Mold Machine 90 Mm High Speed Plastic
1L Lubricant Bottle Blow Mold Machine 90 Mm High Speed Plastic
1L Lubricant Bottle Blow Mold Machine 90 Mm High Speed Plastic
1L Lubricant Bottle Blow Mold Machine 90 Mm High Speed Plastic
1L Lubricant Bottle Blow Mold Machine 90 Mm High Speed Plastic
1L Lubricant Bottle Blow Mold Machine 90 Mm High Speed Plastic
Specifications
Place of Origin :
Jiangsu, China
Brand Name :
5 gallon water bottle blow molding machine
Packaging Details :
seaworthy package for High speed Plastic milk bottle blowing machine
Supply Ability :
8 Set/Sets per Month blow molding machine
Price :
$62,500.00 - $65,700.00/sets
Condition :
New
Video outgoing-inspection :
Provided
Machinery Test Report :
Provided
Marketing Type :
New Product 2020
Warranty of core components :
1 Year
Core Components :
PLC, Engine, Bearing, Gearbox, Motor, Gear, Pump
Application :
Bottle
Plastic Processed :
PP, HDPE, PE, PE/PP, HDPE/PP, LDPE,PE,PP, HDPE
Voltage :
220V or 380V
Dimension(L*W*H) :
3.6*1.6*2.8m
Clamping Force (kN) :
320
Screw diameter (mm) :
90 mm
Output (kg/h) :
150 kg/h
Automation :
Automatic
Screw Heating Power(kW) :
18 kW
Extruder Motor Power(kW) :
45 kW
Mold Platen Size(Width)(mm) :
550 mm
Mold Platen Size(Height)(mm) :
550 mm
Air Pressure(MPa) :
1.2 MPa
Air Comsumption(m³/min) :
1 m³/min
Die Head Heating Power(kW) :
20 kW
Accumulator Capacity(L) :
7.6 L
Power (kW) :
45
Weight (T) :
15
Key Selling Points :
Easy to Operate
Warranty :
1 Year
Applicable Industries :
Manufacturing Plant
Showroom Location :
Viet Nam, Saudi Arabia
Blow Moulding Type :
Extrusion Blow Moulding
Automatic :
YES
After-sales Service Provided :
Field maintenance and repair service
After Warranty Service :
Video technical support
Product name :
Automatic Blowing Molding Machine
Port :
shanghai
Description

Extrusion Blow Moulding Blow Moulding Type and Bottle Application blow molding machine

Technical Parameters: ( ABLD82)

Technical Parameters: ( ABLD82)

Max. Product volume

30 liters

Out put capacity

2160~2400pc/day

Screw diameter

82mm

Screw L/D ratio

38L/D

Screw drive power

30KW

Screw heating capacity

16.7 KW

No.of heating zone

5zones

Output of PC

160KG/H

Oil pump drive power

15 KW

Clamping force

220KN

Max.size of mold

550X650mm

Mold stroke

355-800mm

Max.die diameter

150mm

Blowing pressure

1.2 mpa

Air Volume

1.0 M³/MIN

Cooling water pressure

0.3mpa

Water consumption

100 L/MIN

Size of Machine

6.0X2.2X4.2m

Weight of machine

12ton
