Automatic Oil Bottle Plastic Extrusion PE Blow Molding Machine ABLB75
Automatic Oil Bottle Plastic Extrusion PE Blow Molding Machine ABLB75
Automatic Oil Bottle Plastic Extrusion PE Blow Molding Machine ABLB75
Automatic Oil Bottle Plastic Extrusion PE Blow Molding Machine ABLB75
Automatic Oil Bottle Plastic Extrusion PE Blow Molding Machine ABLB75
Automatic Oil Bottle Plastic Extrusion PE Blow Molding Machine ABLB75
Specifications
Place of Origin :
JIANGSU, CHINA
Brand Name :
APOLLO
Certification :
CE/SGS
MOQ :
1 Set
Payment Terms :
L/C, T/T
Supply Ability :
30 sets per month
Price :
Negotiable
Packaging Details :
Film packing/Carton packing/Wooden packing
Delivery Time :
30 working days
Model Number :
ABLB75
Screw diameter :
75mm
Screw drive power :
22 KW
No.of heating zone :
4 zones
Oil pump drive power :
11 KW
Max.size of mold :
400X450mm
Max.die diameter :
180mm
Description

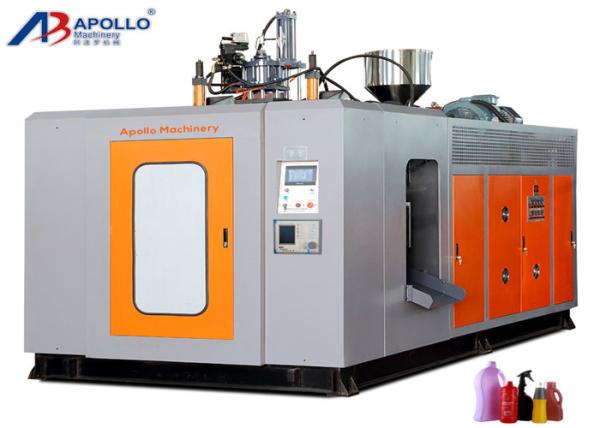

ABLB75 full automatic blow molding machine is specialy design for the production of various plastic children toys in all shapes and widely materials.Mechanical-double-arm clamping system ensures mould being tightly colsed under great pressure and high temperature.
Equipment with silencer and oil system to reduce the noise and friction.
Electricity saved,energy saved and speed more faster.
The max.size for mold:400x450x300(m
For more information about the machine,please don't hesitate to contact us.

Automatic Oil Bottle Plastic Extrusion PE Blow Molding Machine ABLB75Automatic Oil Bottle Plastic Extrusion PE Blow Molding Machine ABLB75Automatic Oil Bottle Plastic Extrusion PE Blow Molding Machine ABLB75

Related technical parameter(ABLB75)

Max. Product volume 8 liters Dry cycle 800pc/h
Screw diameter 75mm Screw L/D ratio 24 L/D
Screw drive power 22 KW Screw heating capacity 5-6 KW
No.of heating zone 4 zones Output of HDPE 100 KG/H
Oil pump drive power 11 KW Clamping force 78 KN
Max.size of mold 400X450mm Mold stroke 188-600mm
Max.die diameter 180mm Blow pressure 0.6mpa
Air volume 0.7 M/MIN Cooling water pressure 0.3mpa
Water consumption 60 L/MIN

PLC adds the man-machine interface, the touching type is operated, it is convenient to be simple and direct.
One pair of Iow plastification systems of Senior One, energy-efficient,mix and smelt outstandingly.
The centre enters the material, the pushing out of the mould head of many patterns, remove and make and converge the line completely, meet the demands of different structure products.
Two parallel, the mould organization of translation, the centre locks the mould, balance the strength of receiving,move rapidly, put it in place gentlely.

Automatic Oil Bottle Plastic Extrusion PE Blow Molding Machine ABLB75
