Specifications
Brand Name :
TAISHENG
Model Number :
TS-150L
Certification :
ISO9001-2005
Place of Origin :
CHINA
MOQ :
1 Set
Price :
Negotiation
Payment Terms :
T/T
Supply Ability :
15 Sets per month
Delivery Time :
10-15 work day
Packaging Details :
PE+ABF+wooden case
Product Name :
Vacuum Blast Machine
Material :
Carbon Steel
Apply For :
Removing Oxide Coating Of Oil Tank
Volume :
40 Gallon
Dimension :
1800×980×1840(L*W*H)
Weight :
400kg
Description

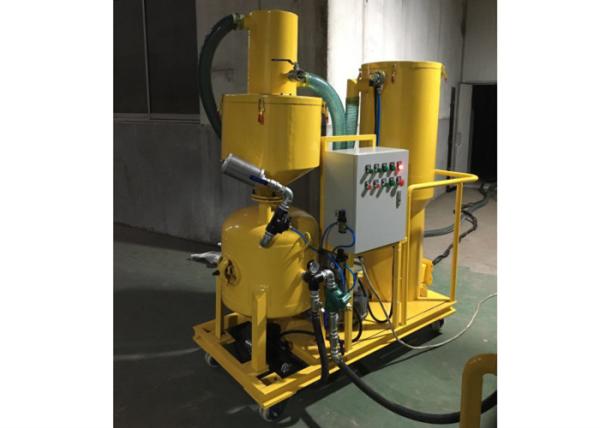

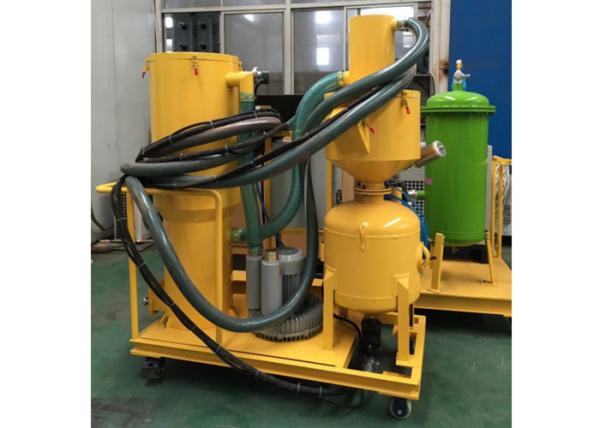

Dustless Vacuum Blasting Machine For Removing Oxide Coating Of Oil Tank

Introduction

Recycling sand blasting machine is a new kind of environmental blasting equipment with high efficiency designed by our company. This equipment uses compressed air to shoot abrasives to the surface of workpiece at a high-speed. Abrasive impact the surface and remove rust, making the surface reach a certain cleanness and roughness. Negative pressure produced by the vacuum pump (or vacuum generator) recycles the sand and dust, and separate the abrasives by separation system of the equipment, then abrasives can be recycling used, dust and rust dirt into the dust collecting barrel. Under a single switch control, all actions including equipment of sand blasting, sand sweeping, sand and dust separation, sand material circulation and dust filter can be done automatically. Work environment is clean and pollution-free.

Specification

Model TS-150L
Size 1800×980×1840(L*W*H)
Weight About 400kg
Voltage 380V ±10% 50HZ three phase
The dia of nozzle 6mm
Working pressure 4-7bar
Working radius 20m
Working efficiency 1-3m²/h
Working type Automatic recycle type
Air consumption 2-3m³/min(22kw air compressor)
Fan power 1x4kw
Cleaning level Sa2.5-3
Roughness 20-70μm
Usable abrasive Bearing steel grit G50

Applications:

Suitable for removing rust, cleaning paint, welding treatment, removing burrs/flashes/oxide skin, matte finishing of stainless steel/aluminum items, removing dirt on concrete/carving stone surface.

Dustless Vacuum Sand Blaster is not a traditional sandblaster. It provides you with a cleaner and healthier working environment. Widely applicable for removing rust, old paint, welding scale. It has a superior accessibility irrespective of the shape of the surface and different accessory nozzles keep the blasting process closed and dust free.

Competitive Advantage:

1. Dustless Sandblaster with built-in Vacuum system, No dust or blasting abrasive flying around.

2. Abrasive can be recycled for reuse.

3. Vacuum blasting in enclosed spaces where regular blasting is not permitted.

4. Mobile, flexible and low start-up costs.

5. Higher Efficiency, shorter clean-up time.
