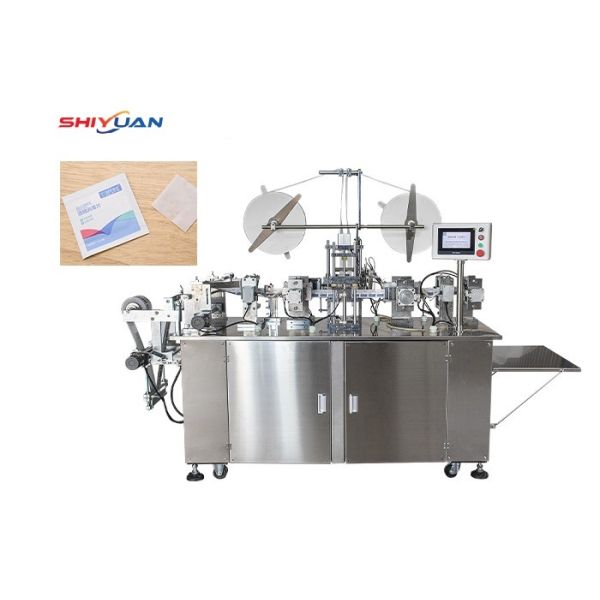

60*30mm 60*60mm Alcohol Pad Making Machine / Alcohol Swab Packing Machine
60*30mm 60*60mm Alcohol Pad Making Machine / Alcohol Swab Packing Machine
Specifications
Machine Size :
1900 * 700 * 1600mm
Brand Name :
Shiyuan
Breadth Width of Raw Packaging Film :
400mm
MOQ :
Negotiable
Equipment Power :
2 . 5KW
Folded Size of Woven Cloth :
30 * 30mm
Price :
Negotiable
Payment Terms :
D/A,D/P,T/T,Western Union,
Packaging Details :
2290 * 820 * 1670mm
Applicable Non-woven Cloth Raw Material :
40 - 60g spunlace ( hydroentanglement ) non - woven
Place of Origin :
China
Model Number :
SY - 250A
Supply Ability :
100 Set / Month
Certification :
CE
Delivery Time :
15-25 / day
Weight :
700KG
Spread Size of Woven Cloth :
60 * 60mm ，60 * 30mm
Name :
Alcohol Pad Making Machine
Diameter of Raw Non-woven Material Roll :
≦ 700mm
Description

Alcohol Pad Making Making Packing Machine

Product Description


1. Mainframe interface, beautiful setting is convenient and fast.
2. The fault self-diagnosis function makes the fault clear.
3. High-sensitivity photoelectric eye color mark tracking, digitally input the sealing and cutting position, making the sealing and cutting position more accurate.
4. Independent PID control of temperature, better adapt to various packaging materials.
5. Positioning stop function, no sticking of knife, no waste of film.
6. The transmission system is simple, the work is more reliable, and the maintenance is more convenient.

Features


1. Automatic alcohol swab packaging machine adopts latest Japanese technology for very high speed production at 240-280unis per minute.
2. With automatic PLC HMI program+LCD Touch screen for simple operation.
3. Automatic counting system allow operator to set the number as per desire.The heating sealing system,Slitting system,Swiss made Premium quality of pump to ensure the high quality of the product.
4. Machine built by 304 stainless steel to meet GMP requirement.
5. The machine is warmly welcome in USA,Europe for upper market.
6.Since the buyer receives the goods, we provide a quality guarantee of not less than 1 year, and a quality guarantee of not less than 3 months for accessories

Alcohol Swab Making Machine Specification

Workshop Land Area
1900 * 700 * 1600mm
Equipment Power
2.5KW
Product Name
SY - 250A Alcohol Swab Packaging Machine Introduction
Weight
700KG
Function
alcohol swab one-time forming, cutting and counting
Application Product
medical alcohol swab, cleaning wipe piece
Folding Method
one-fourth folding , transverse folding
Material Discharging Mode
speed-variable motor counting and fast discharging
Breadth Width of Raw Woven Cloth
60mm
Spread Size of Woven Cloth
60 * 60mm , 60 * 30mm
Folded Size of Woven Cloth
30 * 30mm
Applicable Non-woven Cloth Raw Material
40 - 60g spunlace ( hydroentanglement ) non - woven
Internal Diameter of Paper Tube of Raw Material
3 inches ( 75mm )
Diameter of Raw Non-woven Material Roll
≦ 700mm
Breadth Width of Raw Packaging Film
400mm
Applicable Raw Packaging Film
73g above paper aluminum composite film
Diameter of Raw Packaging Film
≦ 400mm
Outer Packing Size of Finished Alcohol Swab
width 50mm, 45-80mm
Production Speed
120 / min ( calculated based on 50mm )
