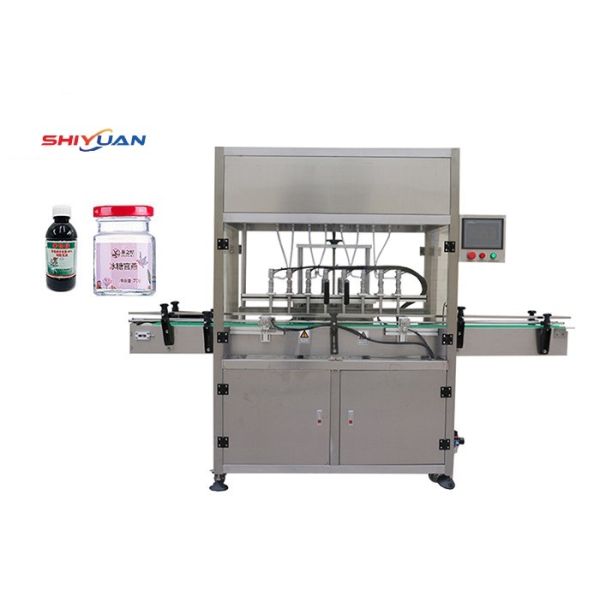

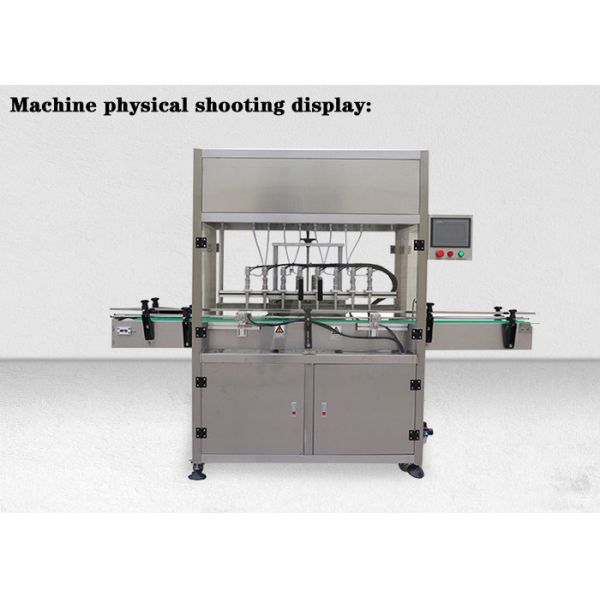

Fully Auto 4 Head Liquid Bottle Filling Machine Honey Fruit Juice Bottle Filling Machine
Fully Auto 4 Head Liquid Bottle Filling Machine Honey Fruit Juice Bottle Filling Machine
Fully Auto 4 Head Liquid Bottle Filling Machine Honey Fruit Juice Bottle Filling Machine
Fully Auto 4 Head Liquid Bottle Filling Machine Honey Fruit Juice Bottle Filling Machine
Fully Auto 4 Head Liquid Bottle Filling Machine Honey Fruit Juice Bottle Filling Machine
Fully Auto 4 Head Liquid Bottle Filling Machine Honey Fruit Juice Bottle Filling Machine
Fully Auto 4 Head Liquid Bottle Filling Machine Honey Fruit Juice Bottle Filling Machine
Fully Auto 4 Head Liquid Bottle Filling Machine Honey Fruit Juice Bottle Filling Machine
Specifications
Brand Name :
Shiyuan
Model Number :
SY-GZ8T
Certification :
CE
Place of Origin :
Foshan
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
100 Set/Month
Delivery Time :
15-25/day
Packaging Details :
2000 * 1200 * 2100mm
Filling speed :
600 - 800 bottles / hour ( depending on the filling material and filling weight, the filling speed is different )
Filling accuracy :
＜ ± 1 % ( According to different filling volume and filling materials, the precision is different )
Power supply :
220V / 50HZ
Air pressure :
0.6 - 0.8MPa
Machine Size :
2000 * 1200 * 2100
Weight :
300kg
Name :
Automatic Flling Machine
Description

Fully Auto 4 Head Liquid Bottle Filling Machine Honey Fruit Juice

Configuration descriptionPurpose and introduction


This machine is developed by our company on the basis of absorbing advanced foreign technology, and is a special equipment for spray filling. Suitable for filling and capping of round and shaped bottles of various materials and nozzles of variousspecifications. Adopt disc positioning type filling, disc positioning type upper sprinkler, screw cap, high degree of automation, solve the inconvenience of manual sprinkler, this machine uses peristaltic pump filling, pneumatic capping, lifting cap,man-machine interface Control has the advantages of accurate filling measurement, stable capping, simple operation and so on. In a leading position in the country. Widely used in medicine, daily chemical and other industries. Fully comply with GMP requirements.

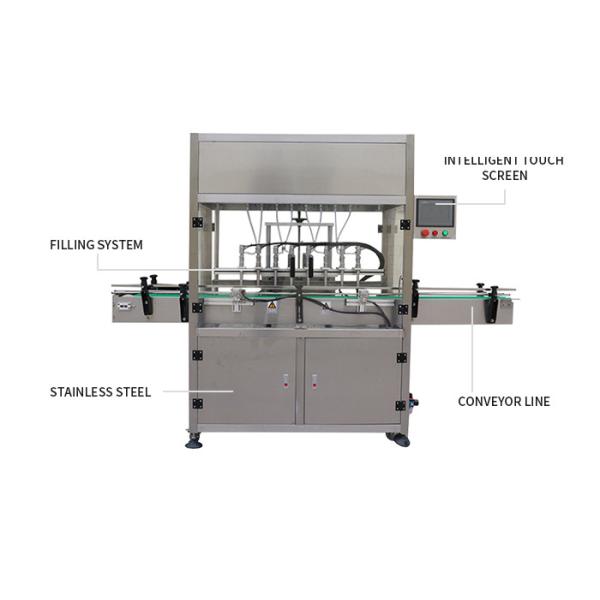

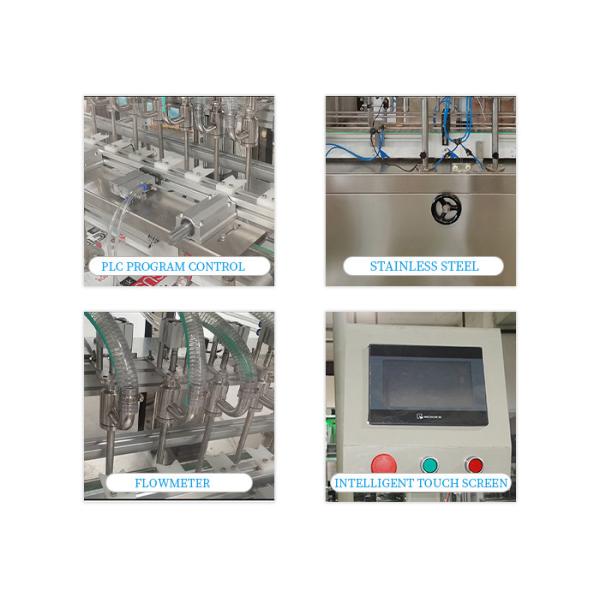

Features


1. Automatic nozzle management and automatic upper nozzle, replacing manual, high efficiency.
2. PLC control, peristaltic pump filling, high filling accuracy.
3. Imported cam splitter provides precise equal division of work stations.
4. Reasonable design, stable operation and easy maintenance.
5. It is made of SUS304 and 316L stainless steel, which fully complies with the new GMP requirements.

Bottle Filling Machine Specification

Filling capacity
100 - 1000ml ( customizable )
Filling speed
30 - 50 bottles / min ( depending on bottle size and filling volume )
Filling accuracy
＜ ± 1 %
Power supply
220V 50HZ
Power
3KW
Air pressure
0.4 - 0.6MPa
Size
L3000 * W1400 * H2100mm
Weight
900KG
