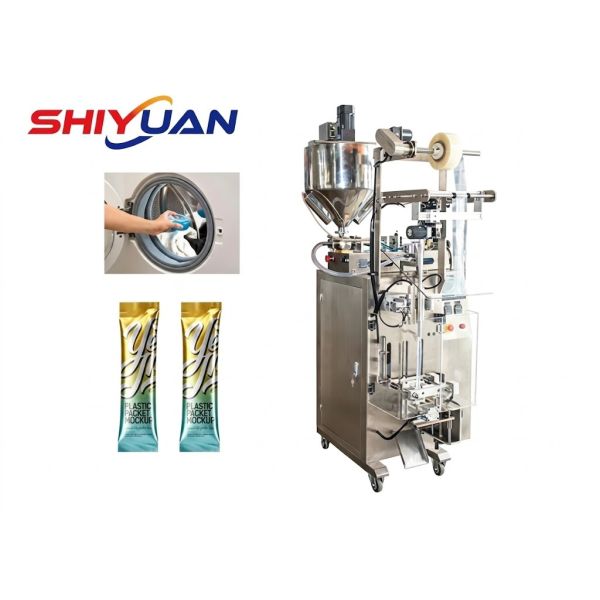

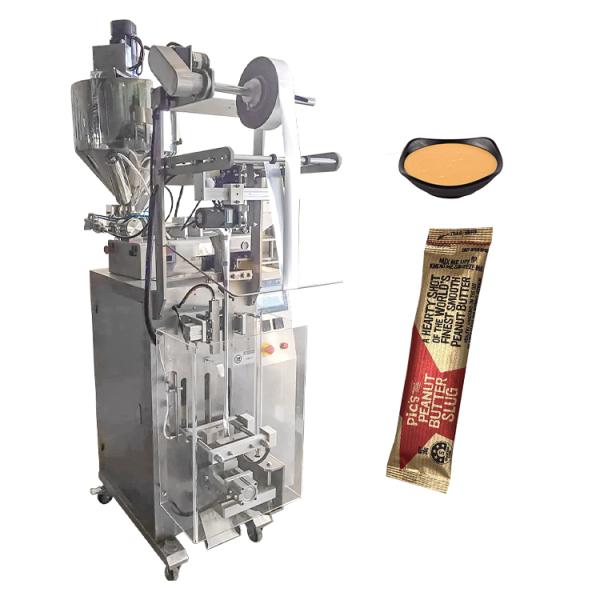

10 - 60bags/min Automatic Liquid Filling Sealing Machine For Honey
10 - 60bags/min Automatic Liquid Filling Sealing Machine For Honey
Specifications
Brand Name :
Shiyuan
Model Number :
SLIV-380WFY
Certification :
CE
Place of Origin :
China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
15-25/day
Delivery Time :
100 Set/Month
Packaging Details :
913 * 1122 * 1961mm
Name :
Automatic Liquid Packing Machine
Packaging material :
Aluminum foil composite film
Bag width :
20 - 60mm
Bag length :
80 - 180mm
Packing speed :
10 - 60 bags/min
Whole machine power :
2.5KW
Overall volume :
913 * 1122 * 1961mm
Packing weight :
300KG
Lifting stroke :
200mm
Description

Film Bag Stick Sachet Liquid Honey Filling Sealing Machine

Main features


1. Weight measuring, bag making, filling, sealing, cutting and bags counting can be done automatically.
2. Computer PLC control and automatic alarming function.
3. English and Chinese human-machine operation interface, it is easy to operate, a high degree of automation.
4. High sensitivity photoelectric eye color tracing, more accuracy.
5. Famous brand components, ensure the quality and durability of the machine.

Technical characteristics


1. PLC control with stable reliable biaxial high accuracy output and color touch screen, bag-making, measuring, filling, printing,cutting , finished in one operation.
2. Separate circuit boxes for pneumatic control and power control. Noise is low, and the circuit is more stable.
3. Film-pulling with servo motor double belt: less pulling resistance, bag is formed in good shape with better appearance, belt is resistant to be worn-out.
4. External film releasing mechanism: simpler and easier installation of packing film.
5. Adjustment of bag deviation just needed to be controlled by the touch screen. Operation is very simple .
6. Close down type mechanism , defending powder into inside of machine.

Liquid Packaging Machine Specification

Packaging material
Aluminum foil composite film
Bag width
20 - 60mm
Bag length
80 - 180mm
Packing speed
10 - 60 bags / min
Power supply
220V
Whole machine power
2.5KW
Overall volume
913 * 1122 * 1961mm
Packing size
850 * 1230 * 2130
Packing weight
300KG
Lifting stroke
200mm
