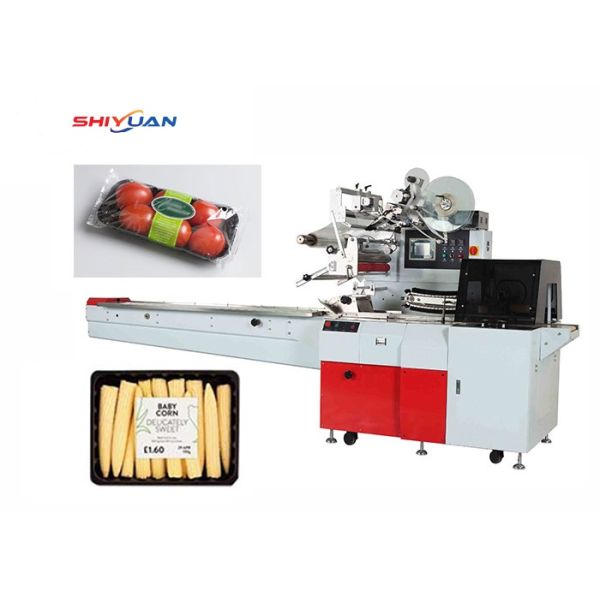

Horizontal Automatic Salad Packing Machine , Fresh Frozen Vegetable Packaging Machine
Horizontal Automatic Salad Packing Machine , Fresh Frozen Vegetable Packaging Machine
Specifications
Price :
Negotiable
Payment Terms :
D/A,D/P,T/T,Western Union,
Power :
220V50/60HZ 2.6KW
MOQ :
Negotiable
Packaging speed :
20-80bag/min
Model Number :
SY-600W
Certification :
CE
Film roll diameter :
Max.320mm
Supply Ability :
100 Set / Month
Packaging Details :
L3700 * W670 * H1320
Weight :
1160kg
Delivery Time :
15 - 25 / day
Model :
KCH-600W
Maximum height of material :
Max.120mm
Machine Size :
4380*870*1500mm
Brand Name :
Shiyuan
Place of Origin :
Foshan
Bag length :
120-600mm
Name :
Automatic Salad Packing Machine
Film width :
Max.600mm
Bag width :
50-280mm
Description

Fresh Frozen Salad Fruit Tomato Food Packaging With Tray Horizontal Vegetable Packing Machine

Application
Packing various kinds of regular objects like vegetable,fruits, biscuits, pies, chocolate bar, bread, instant noodles, moon cakes, drugs, daily appliances, industrial parts, paper boxes, plates, face mask packaging.
Feature
1. Double frequency conversion control , bag length can be set and cut in one step , saving time and films.
2. Adopt PLC & HMI programming software , easy operating and setting .
3. Self failure diagnosis , clear failure display .
4. High sensitivity photocell tracing , input cutting & sealing position digitally ,extra accuracy .
5. PID control temperature independently which is more suitable for packing different materials .
6. Positioned stop function , without sticking knife and saving film .
7. Simple driving system , reliable working , convenient maintenance.
8. All control is realized through software , easy for function adjustting , technical upgrade .
9. Design of mechanical structure is simple & reasonable , which makes the operation easy and reliable.

Horizontal Packing Machine Specification

Model
SY - 250X
Film width
Max.240mm
Bag length
90 - 280mm
Bag width
30 - 110mm
Product height
Max.55mm
Film roll diameter
Max.320mm
Packing speed
40 - 180bag / min
Power
220v,50/60Hz,2.8KV
Machine size
( L )3700 × ( W ) 670 × ( H )1320
Machine weight
600kg
Optional equipment
1. Code applying machine
2. Line sealing wheel
3. More terminal seaing mould
