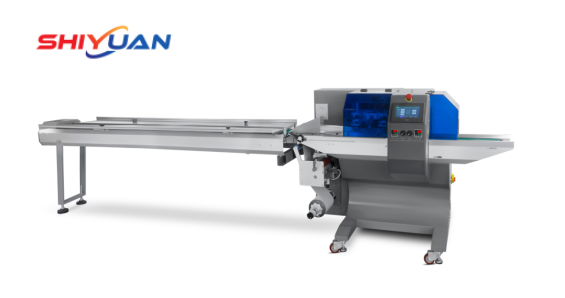

Automatic down film three servo pillow packaging machine
Automatic down film three servo pillow packaging machine
Specifications
Model Number :
SY-350XDAN
Bag width :
50～160mm
MOQ :
Negotiable
Delivery Time :
15 - 25 / day
Packing speed :
10～25 Meter / min
Certification :
CE
Bag length :
Any long size by sensor control
Packaging Details :
L3700 * W670 * H1320
Payment Terms :
D/A,D/P,T/T,Western Union
Machine size :
(L)3592×(W)810×(H)1100mm
Brand Name :
Shiyuan
Film width :
Max.340mm
Place of Origin :
Foshan
Product height :
Max.45～65mm
Price :
Negotiable
Power Specifications :
220V,50/60HZ,2.8KW
Supply Ability :
100 Set / Month
Approximately Weight :
450Kg
Description

Automatic down film three servo pillow packaging machine

Main Performance and Structural Features

1. Three servo motors, controlled by PLC. The bag length is cut immediately upon setting, no need for adjustment of idle travel. It is completed in one step, saving time and film.

2. Human-machine interface. Parameter setting is convenient and fast. It can automatically package when there is a product and automatically pause and wait when there is no product.

3. Self-diagnosis function for faults, fault display is clear at a glance.

4. High-sensitivity photoelectric eye color marking tracking, digital input for sealing and cutting position, making the sealing and cutting position more accurate.

5. Temperature independent PID control, better suitable for various packaging materials.

6. Positioning stop function, no knife sticking, no waste of film.

7. Simple transmission system, more reliable operation, easier maintenance and servicing.

8. All control is realized by software, facilitating function adjustment and technical upgrade, never lagging behind.

Machine Specification

Model

SY-350XDAN

Film Width

Max.340mm

Bag length

Any long size by sensor control

Bag width

50～160mm

Product Height

Max.45～65mm

Film roll diameter

Max.320mm

Packing speed

10～25 Meter / min

Power Specifications

220V,50/60HZ,2.8KW

Machine size

(L)3592×(W)810×(H)1100mm

Approximately Weight

450Kg
