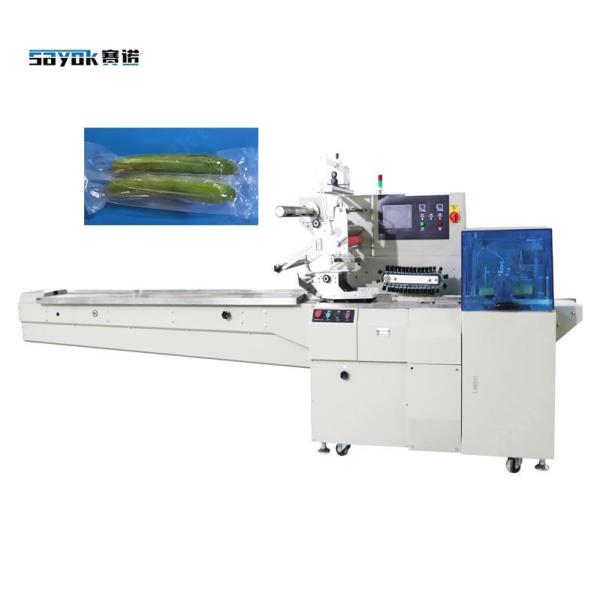

Automatic Vegetable Pillow Packing Machine with Vacuum Function
Automatic Vegetable Pillow Packing Machine with Vacuum Function
Specifications
Brand Name :
Sayok
Model Number :
SN-450W/600W/800W
Certification :
CE
Place of Origin :
China
MOQ :
1 set
Price :
EXW US$7500 and above
Payment Terms :
T/T
Supply Ability :
100 set /month
Delivery Time :
15 working days
Packaging Details :
Exported wooden case
Functions :
Bag forming, filling, vacuum, sealing
Applicable industries :
Food, Vegetable, Fruit, Frozen Items
Bag type :
H type 3 side sealing
Key Selling Points :
Pillow packing with vacuum
Material :
Stianless Steel or carbon steel
Packing Film :
0.06-0.08mm Nylon Composite film
After-sales service :
Video technical support
After Warranty Service :
1 year for main electric parts
Description

Automatic Vegetable Wrapping Machine Multifunctional Pillow Pack With Vacuum Function

Feature:

1. Dual frequency conversion control ,bag length can be set and cut in one step,saving time and films.

2. Colorful touch screen,easy and quick setting and operation.

3. Self diagnosis failure function,clear failure diaplay.

4. High sensitivity photoelectric eye color trace the bag,numerical input of cutting sealing position for extra accuracy.

5. The temperature of each seal is independent. PID control is suitable to various packaging materials.

6.Recoprocating type sealing device,filmer sealing,no wasting in mould sealing cutter.

7.Teminal sealing device,more beautiful bag shape,improving products level.

8. Positioning stop function without sticking knife, cutting and wasting envelope.

9. Simple driving system,reliable working,convenient maintenance.

10. Adding vacuum device to pack the products neater,

Applications

Suitable for packing regular objects such as biscuits , pies , bread , instant , drugs , daily appliances , industrial parts , paper boxes , plates , etc .

Specifications:

Model SN-450W/600W/800W
Packing film 0.06-0.08mm Nylon composite film
Packing Speed 30-60 bags/min
Packing Size

L*W 65-330mm*30-330mm
Power Supply 220 50/60Hz
Power 3.8 KW
Machine size 4380x870x1000 mm (L*W*H)
Machine Weght Approx 610kg

Degree of automation Automatic
Processing customization Customized processing is available
Applicable objects Gifts, crafts, food, clothing, home textiles, chemicals, toys, restaurants, daily chemicals, pharmaceuticals, hardware, machinery, frozen foods

Machine Details:

1. Packaging machine appearance

It can realize the one-step process of material release, packaging and sealing and cutting

 Automatic Vegetable Pillow Packing Machine with Vacuum Function

2.Linkage film winding

Adopt multi-linked film rolls to coordinate film link, adapt to more rolled film materials. The rolled film is smoother and more effective in preventing the upper rolled film from running off.

 Automatic Vegetable Pillow Packing Machine with Vacuum Function

3. Conveyor device

Stainless steel operating platform cassette positioning conveyor belt device

 Automatic Vegetable Pillow Packing Machine with Vacuum Function

4.Fully automatic sealing and cutting

The sealing and cutting shrinkage is completed in a single pass, realizing unmanned automatic operation.

 Automatic Vegetable Pillow Packing Machine with Vacuum Function

5. Adding vacuum function, vegetables & fruits are more convinient for transportation and storage

 Automatic Vegetable Pillow Packing Machine with Vacuum Function
6. Packing neat and good looking,

Automatic Vegetable Pillow Packing Machine with Vacuum Function

Automatic Vegetable Pillow Packing Machine with Vacuum Function

Automatic Vegetable Pillow Packing Machine with Vacuum Function
